Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
  2. Tighten the brake pipe to the specified torque using the SST  (49 0259 770B) and the commercially available flare nut wrench.

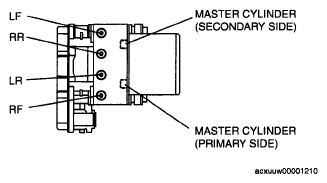

    Fig 1: Identifying Brake Pipe Installation
    G04860262Courtesy of MAZDA MOTORS CORP.
