TCS Off Switch Removal/Installation: Notes

  1. Remove the dashboard under cover (LH). (see DASHBOARD REMOVAL/INSTALLATION .)
  2. Remove the hood release lever. (see HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

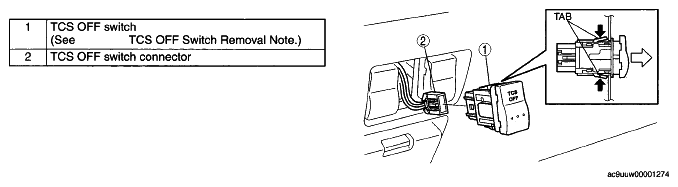

    Fig 1: Identifying TCS Off Switch Connector
    G04970237Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
