DSC/RSC System Wiring Diagram

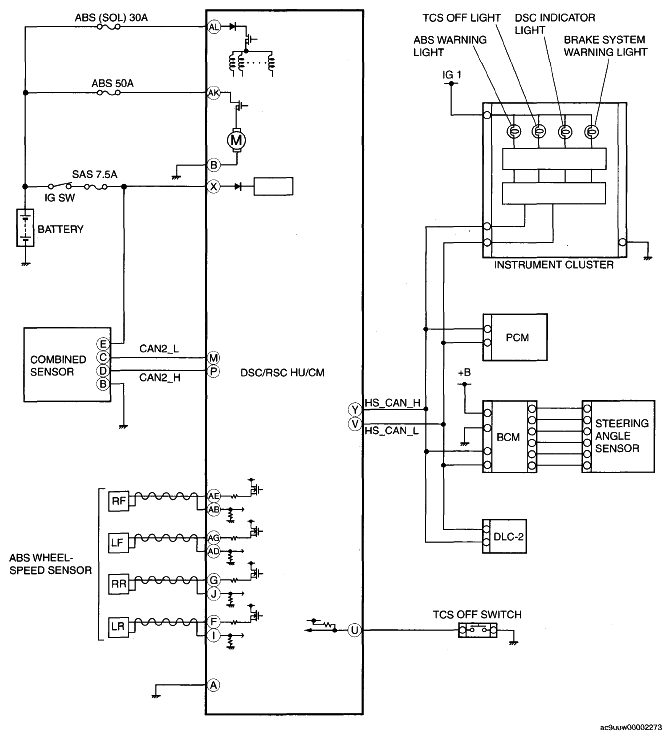

Fig 1: DSC/RSC System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
