Diagram 0940-e

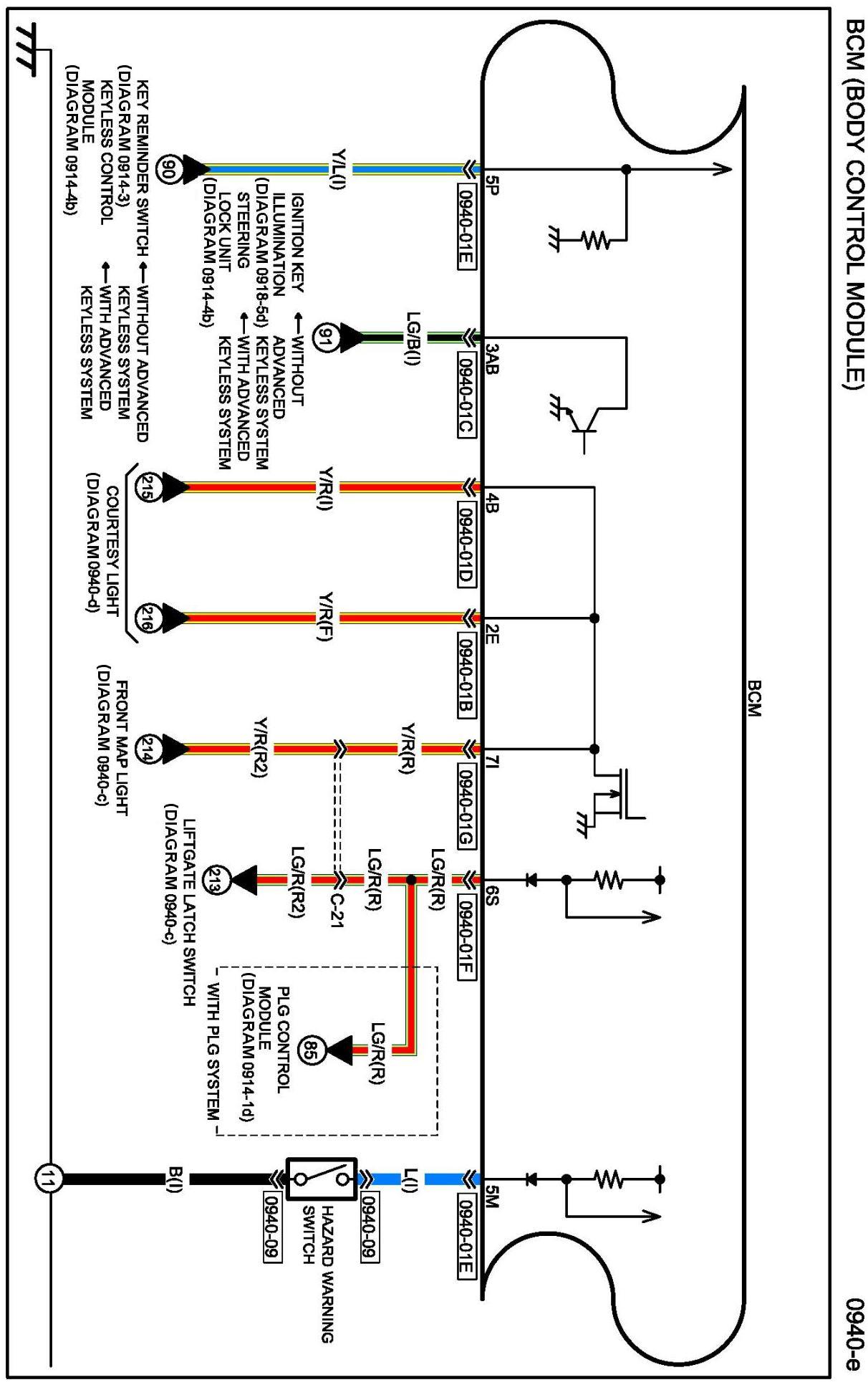

Diagram 0940-e:

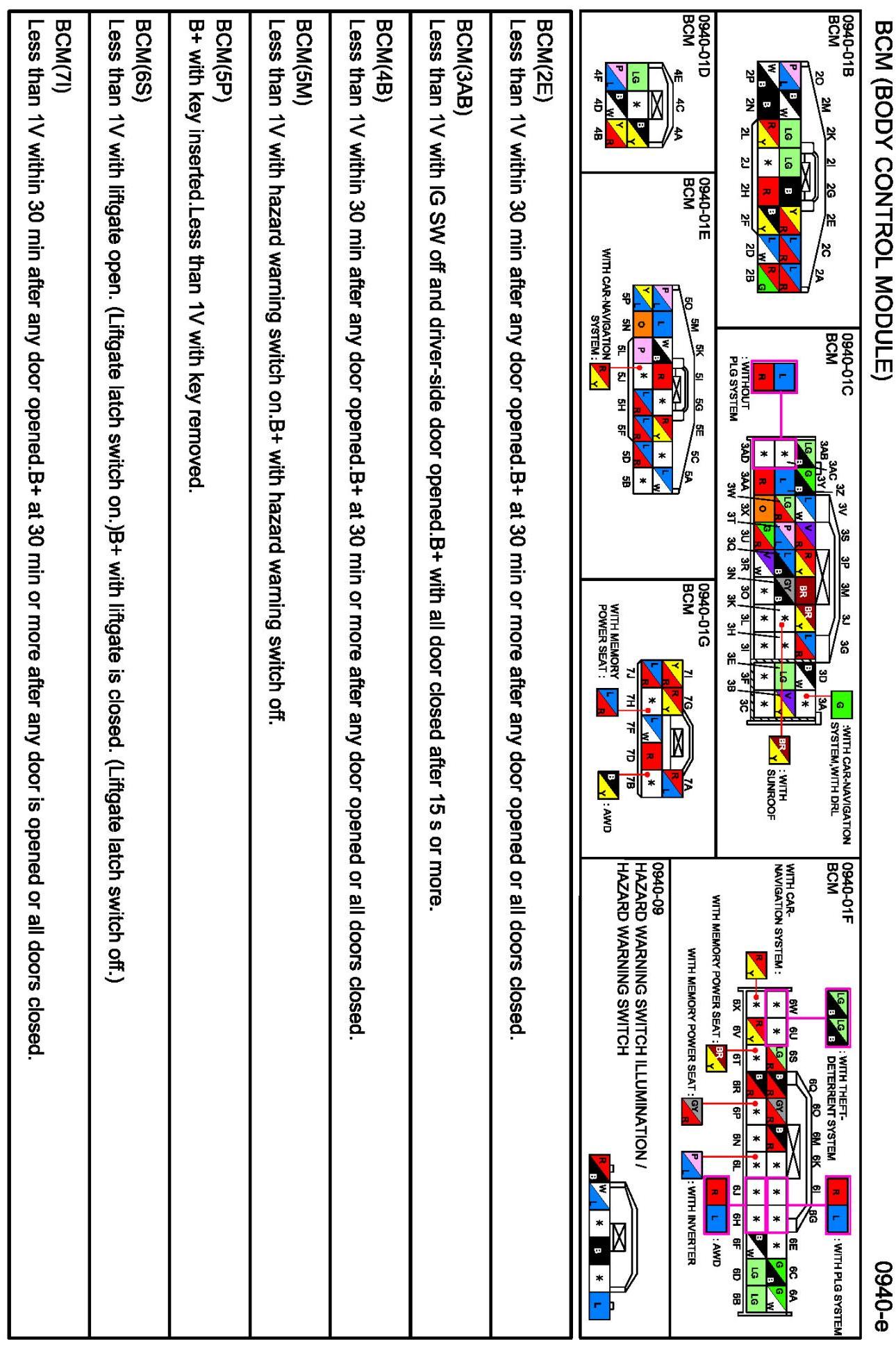

Connectors 0940-e:

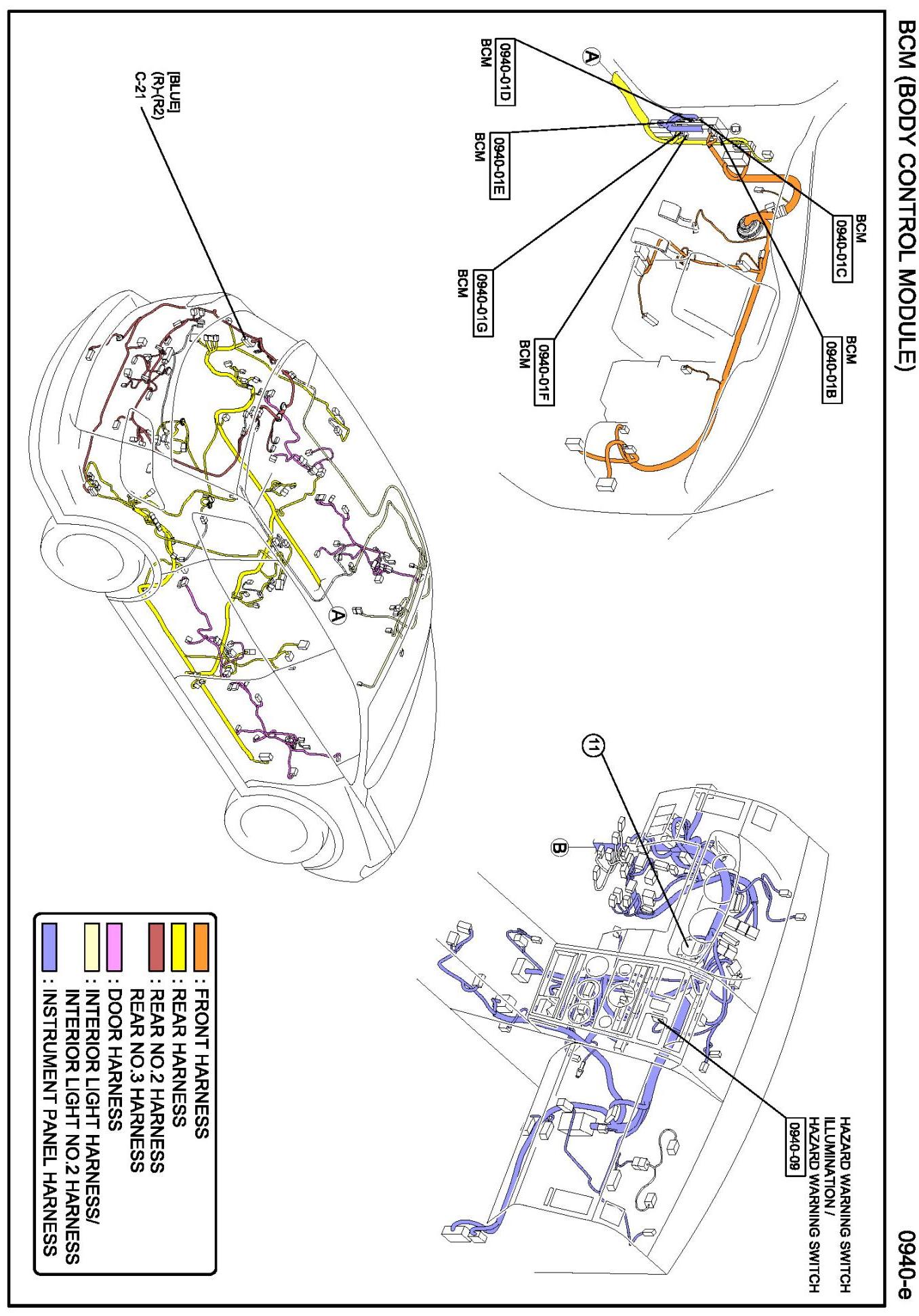

Routing View 0940-e:

Next Diagram Diagram 0940-f

Previous Diagram Diagram 0940-d

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
