Auto Light-Off Control Module

AUTO LIGHT-OFF CONTROL MODULE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the dashboard under cover (Driver side).

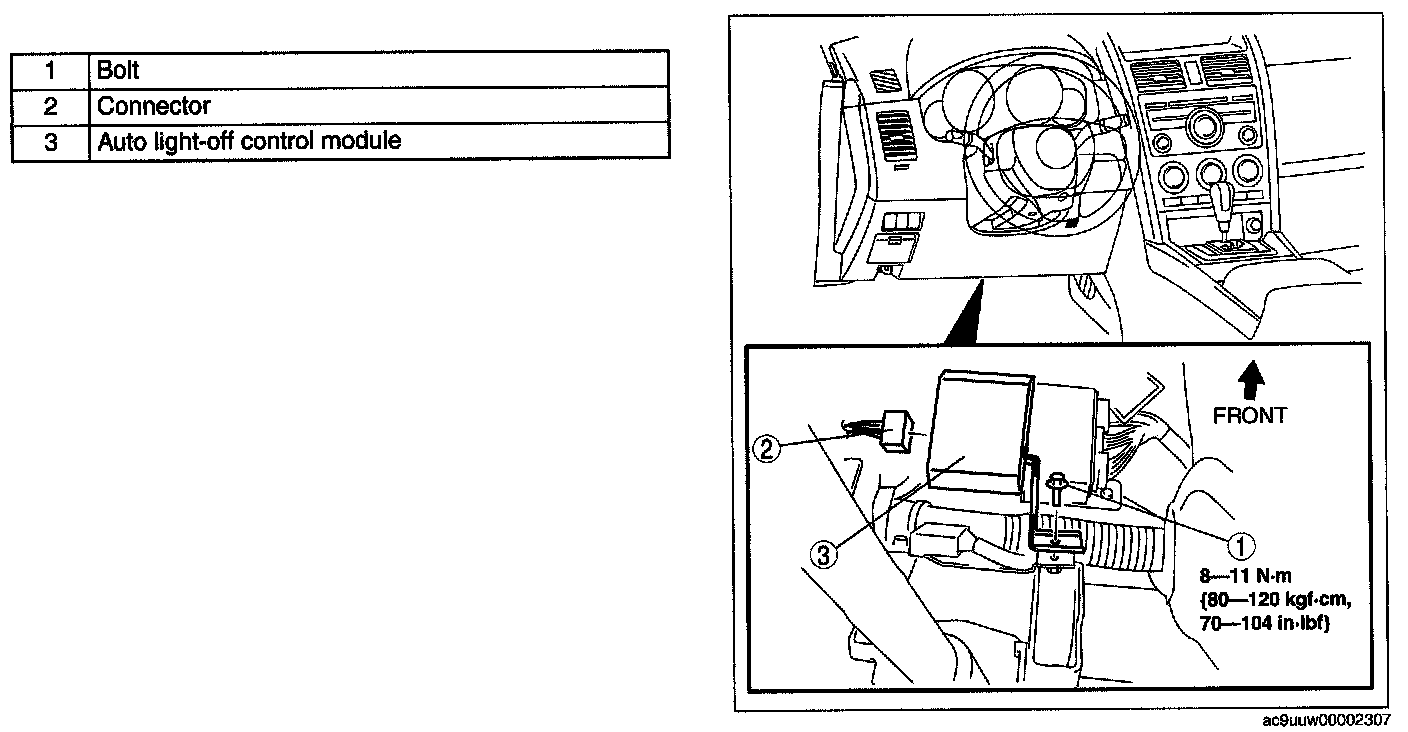

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
