Auto Light-Off Control Module

AUTO LIGHT-OFF CONTROL MODULE INSPECTION

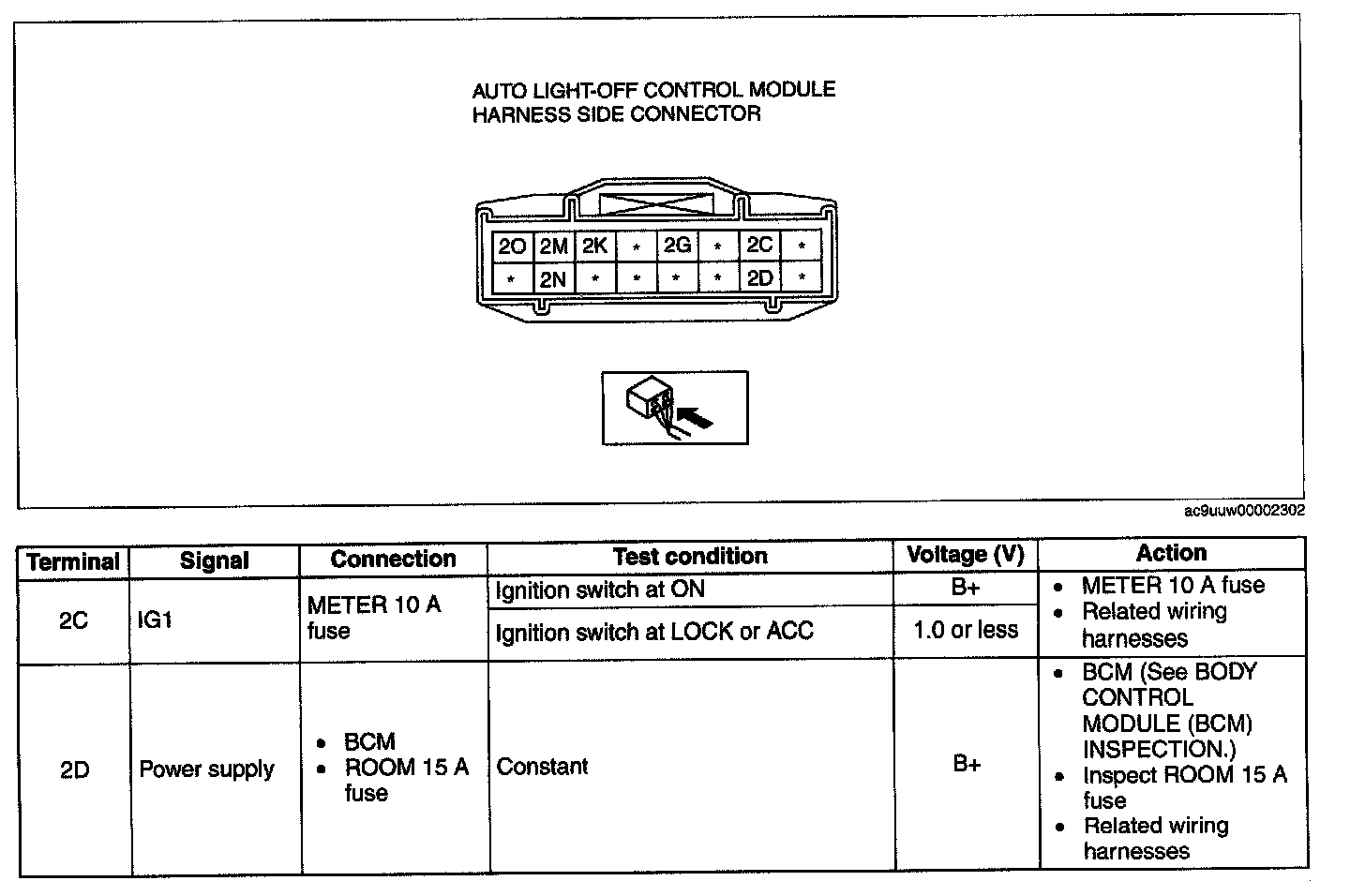

Terminal 2C-2D:

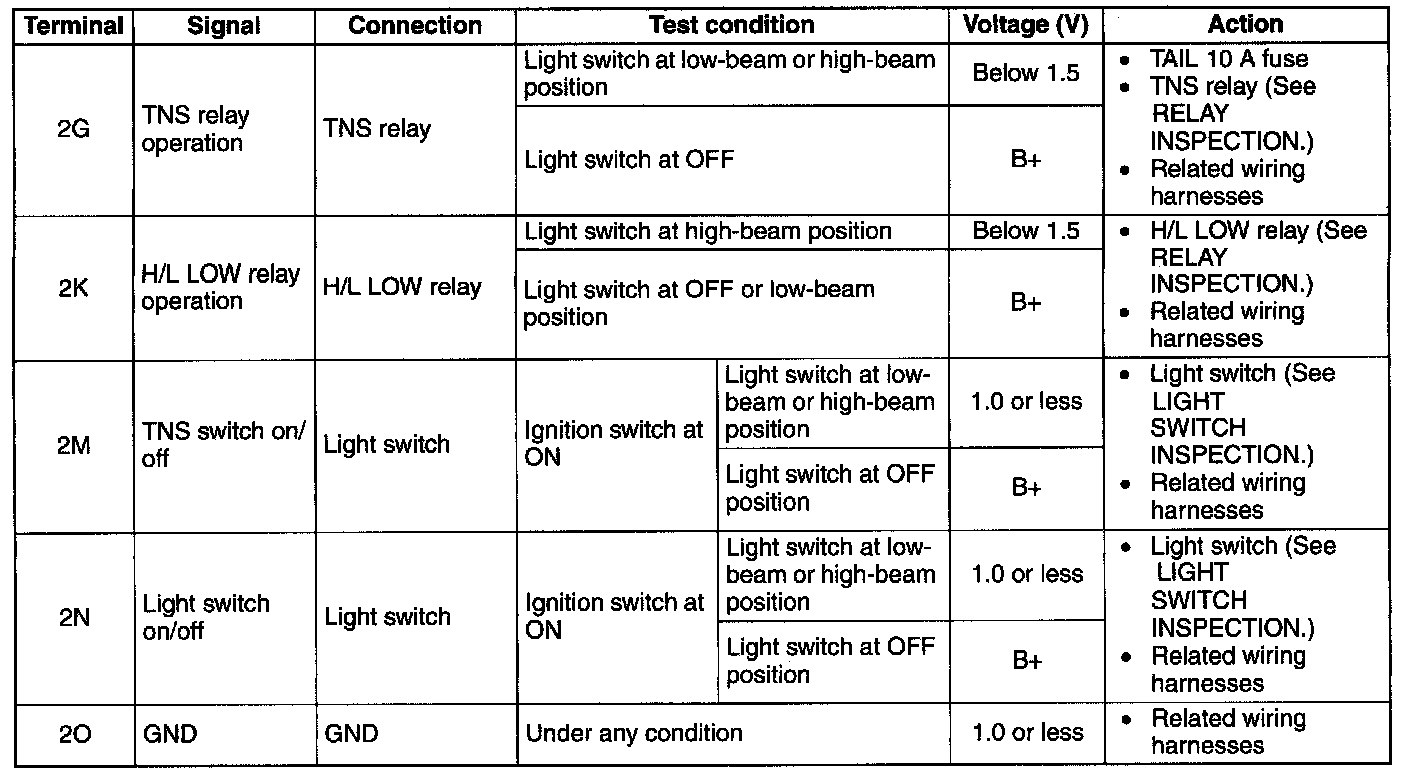

Terminal 2G-2O:




1. Measure the voltage at the auto light-off control module terminals as indicated above.
