Body and Frame: Locations

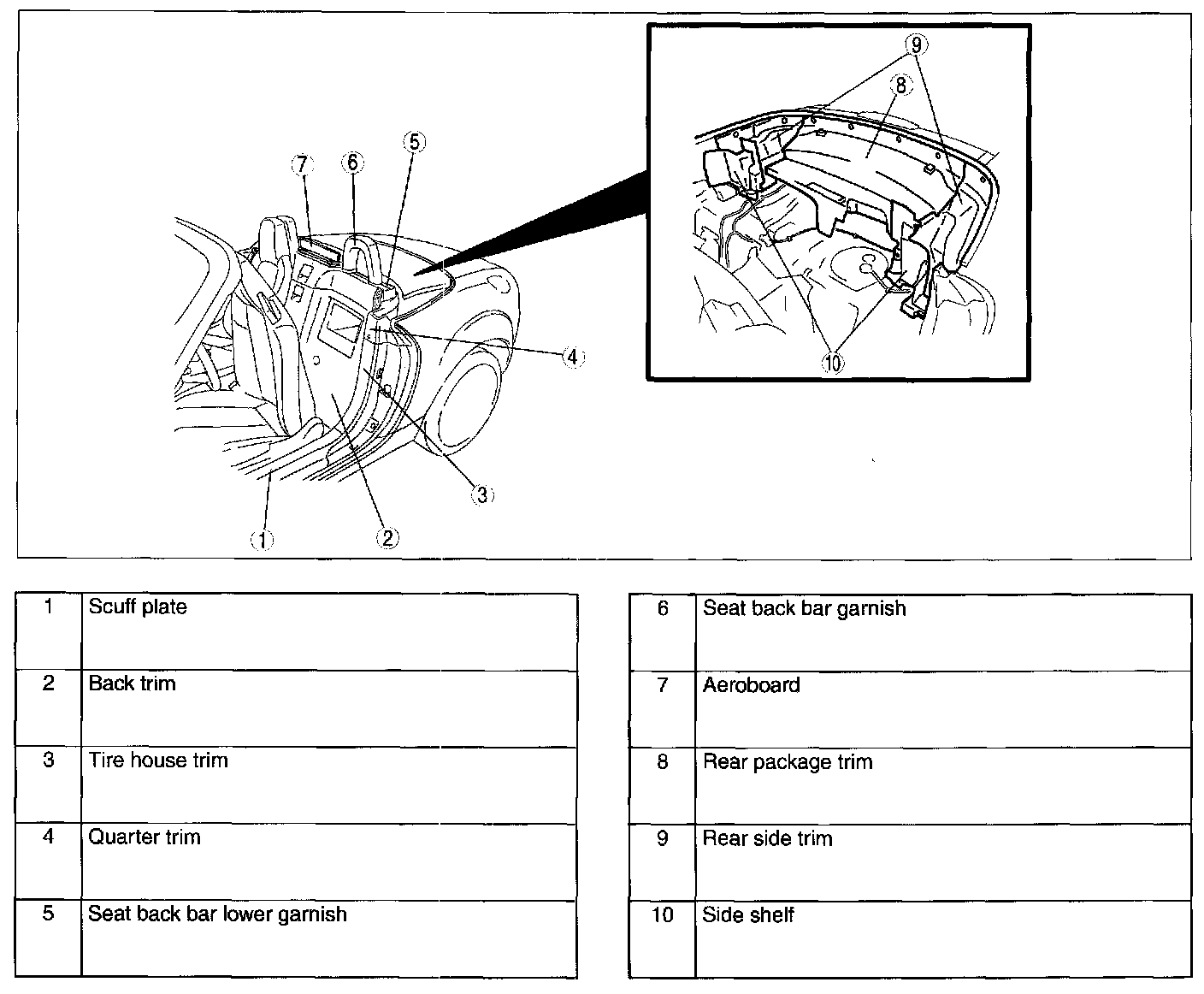

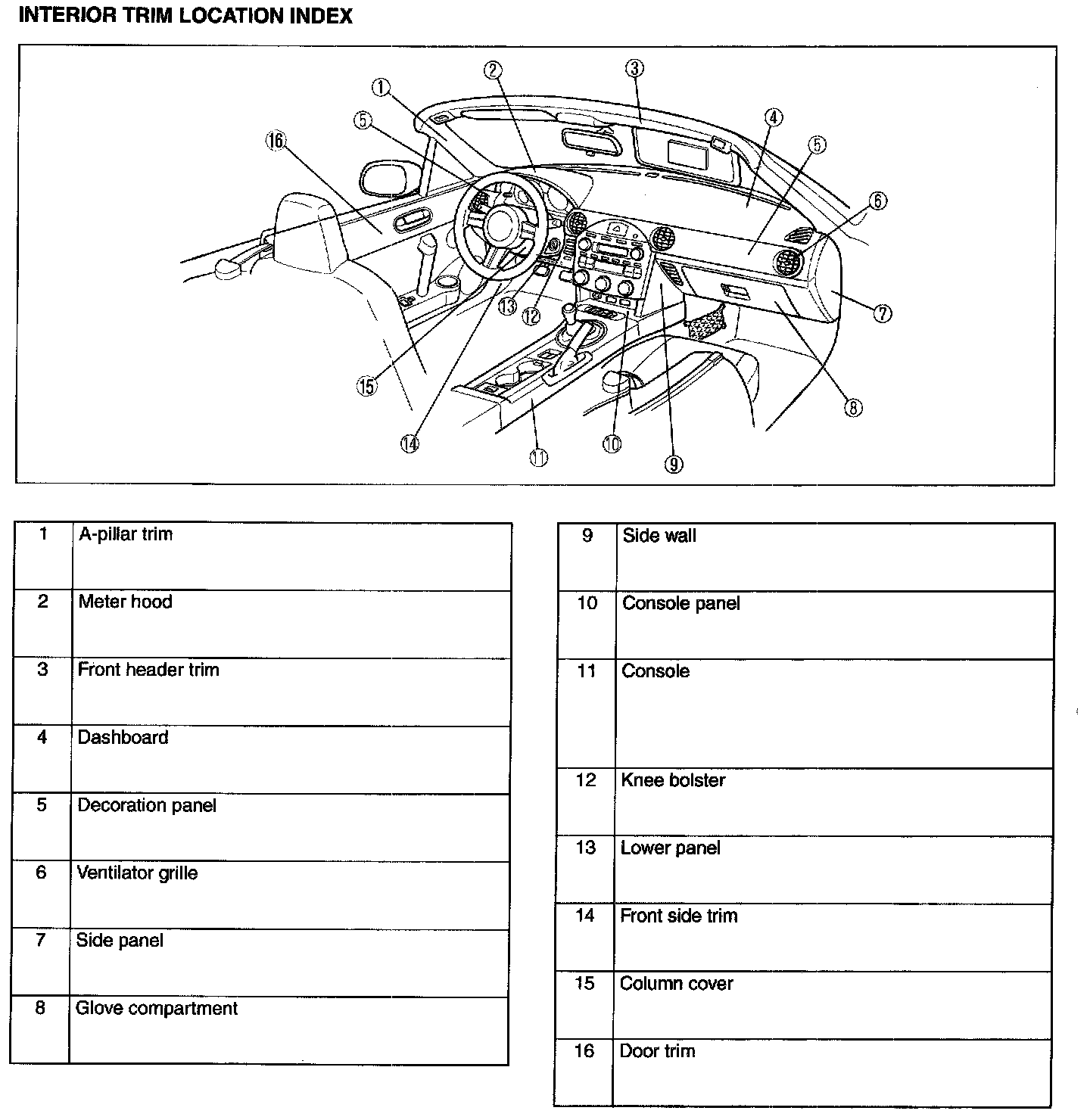

Interior Trim Location Index:







Detachable Hardtop:

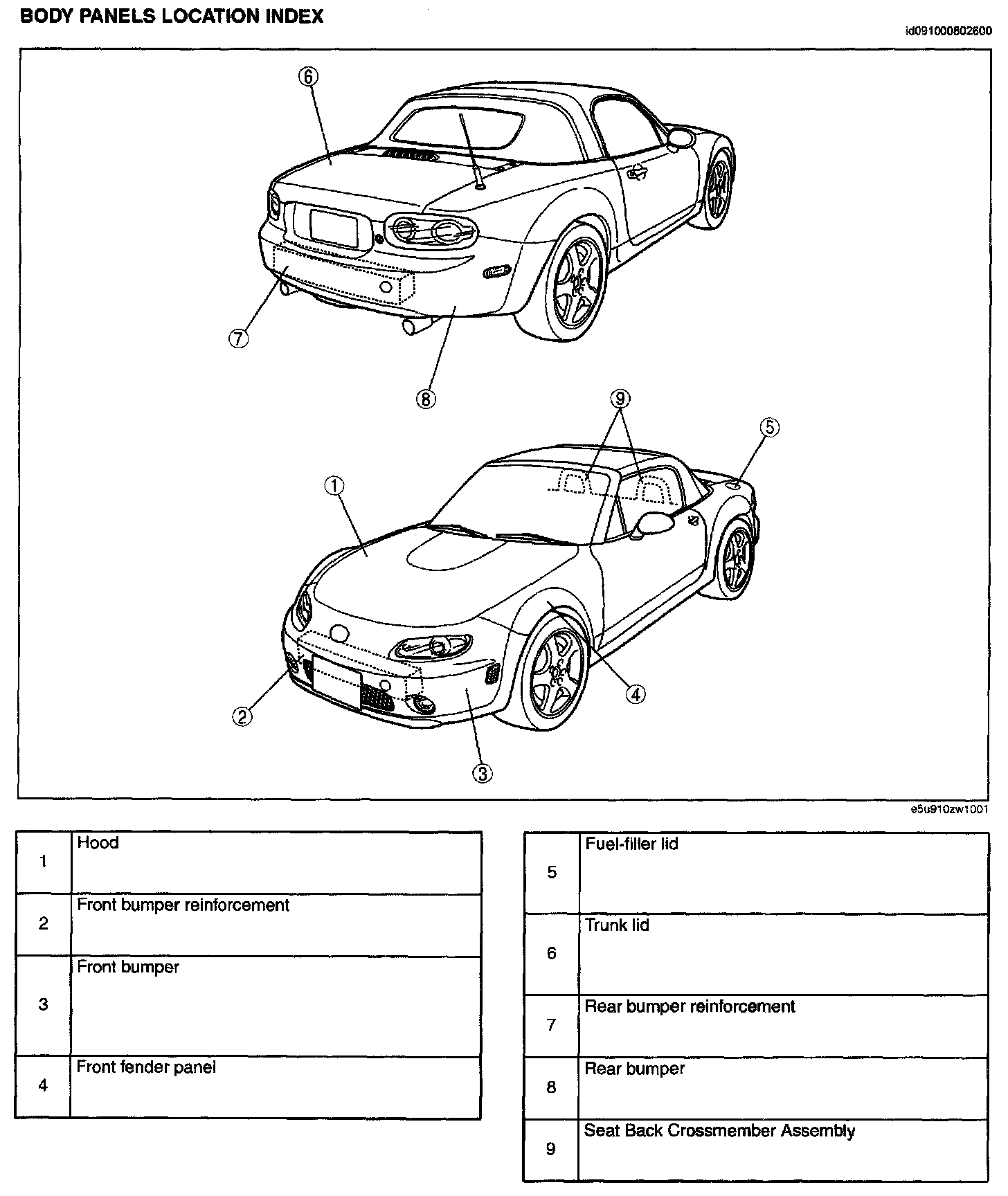

Body Panels Location Index:
