DTC C1134 [Dynamic Stability Control]: Notes

DTC C1134 POSSIBLE CAUSE

DTC C1134 PCM, TCM communication system
DETECTION CONDITION
  • The shift position signal from the PCM or TCM is not within specification.
POSSIBLE CAUSE
  • An abnormal signal is sent from the PCM and/or TCM.

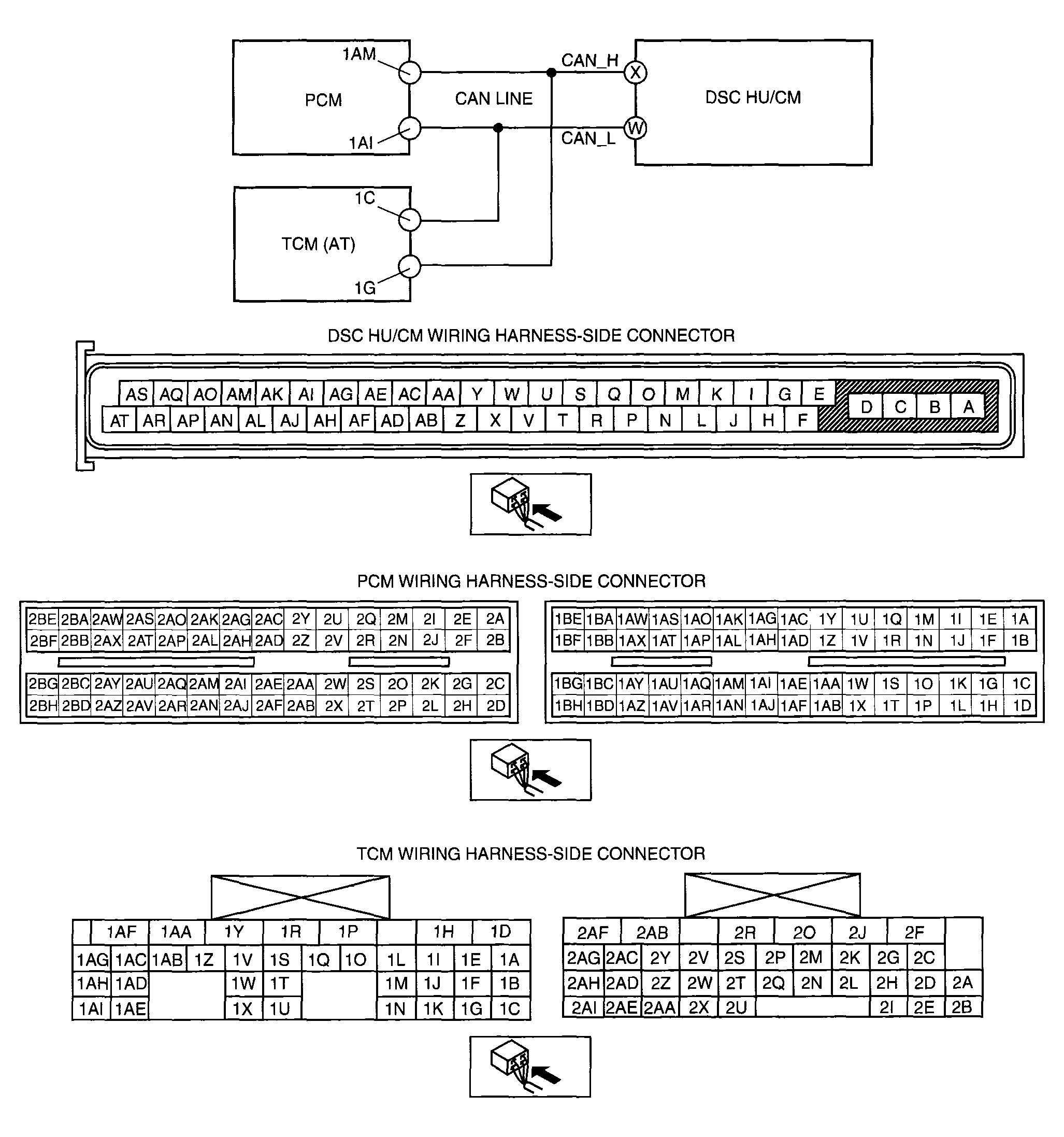

G04323077Courtesy of MAZDA MOTORS CORP.
