Pinout Values and Diagnostic Parameters

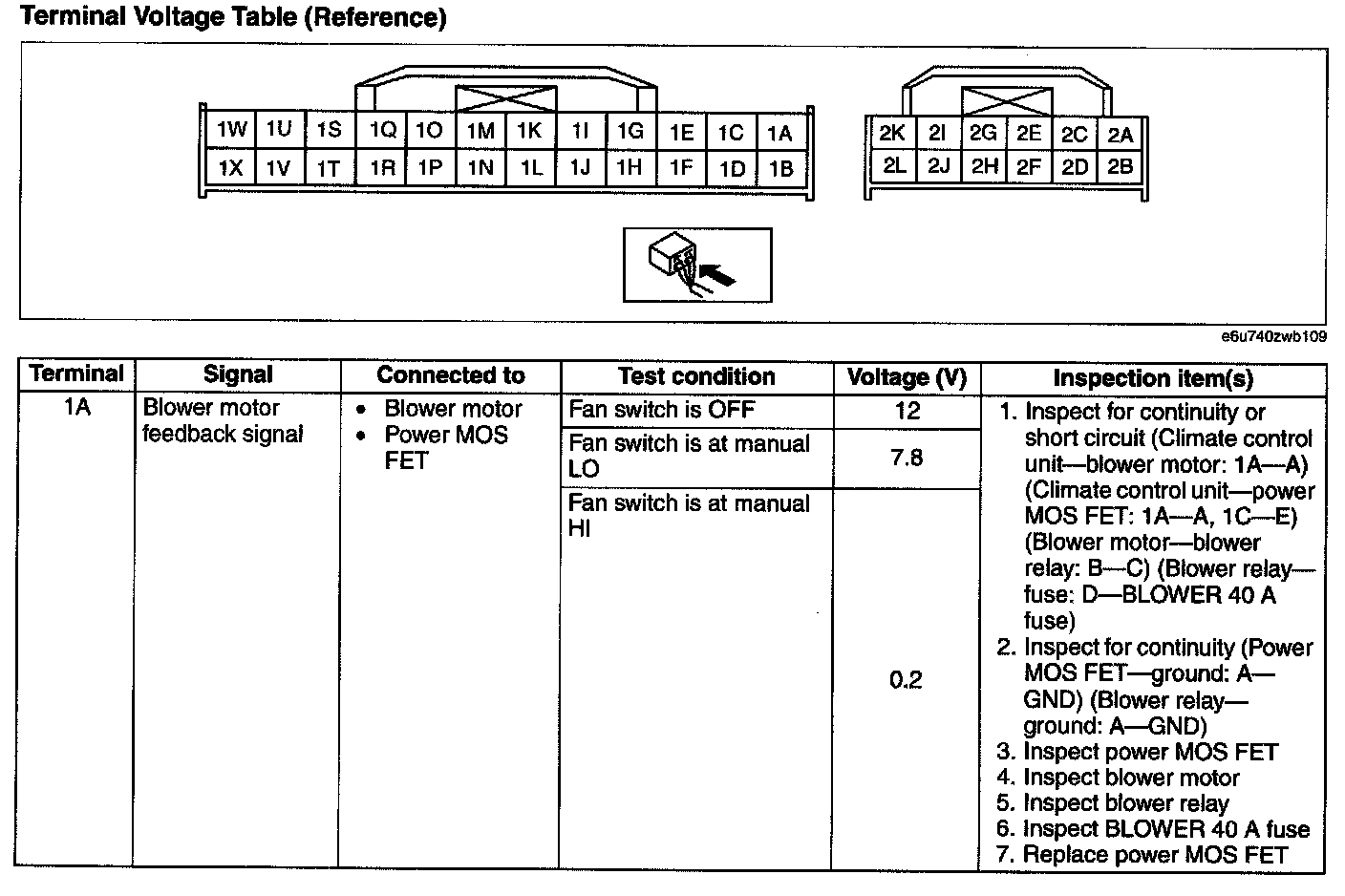

Terminal No 1A:

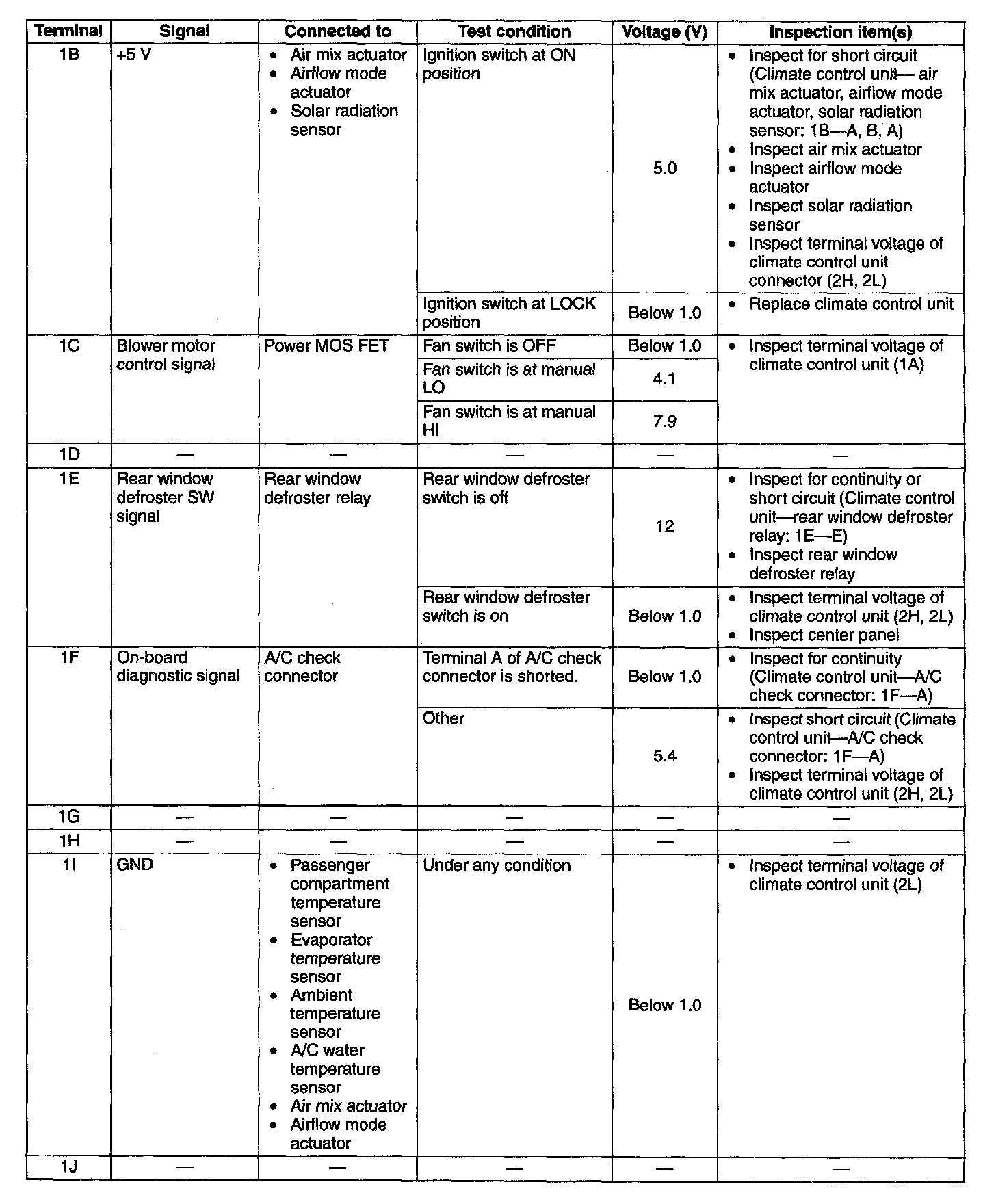

Terminal No 1B-1J:

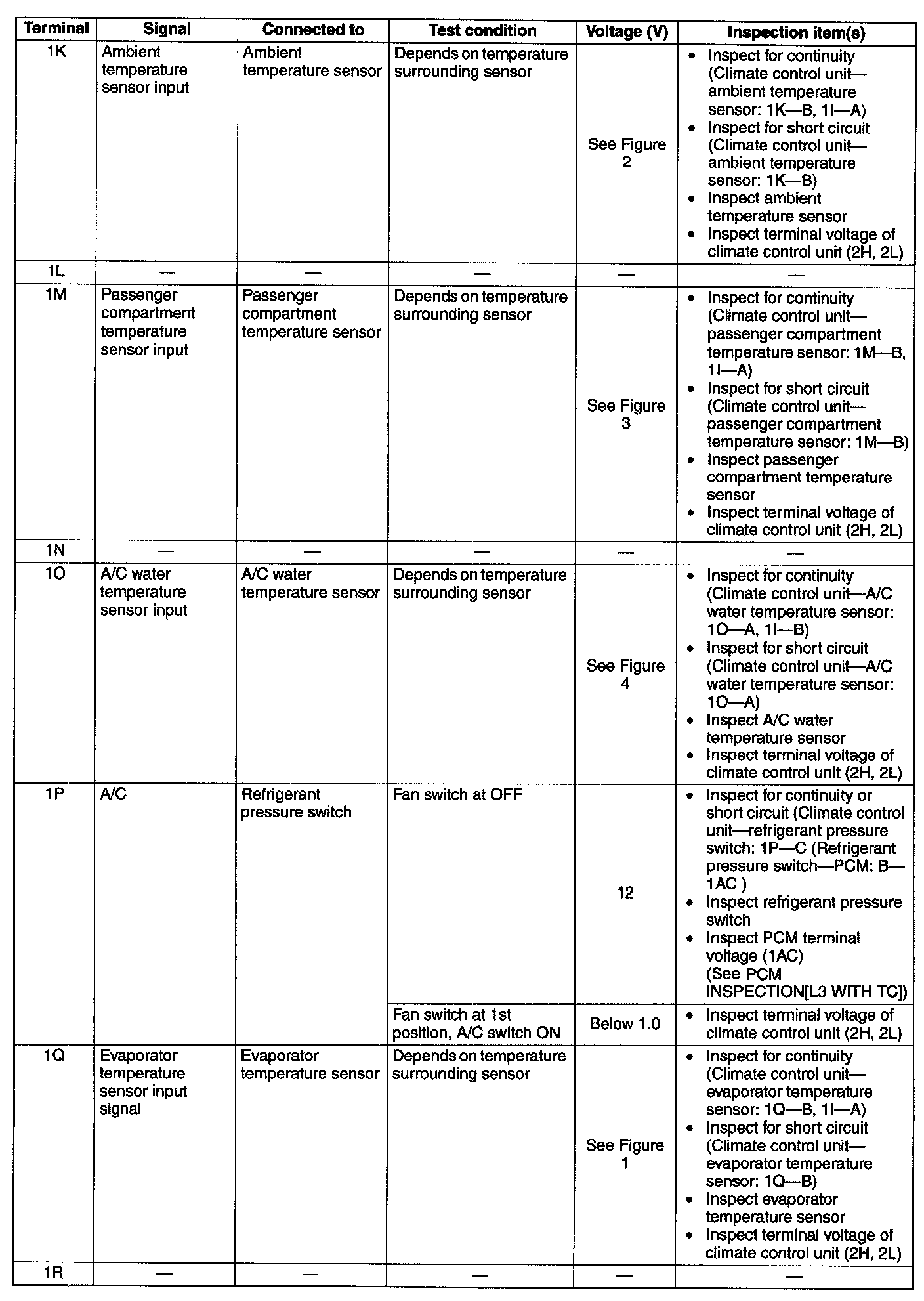

Terminal No 1K-1R:

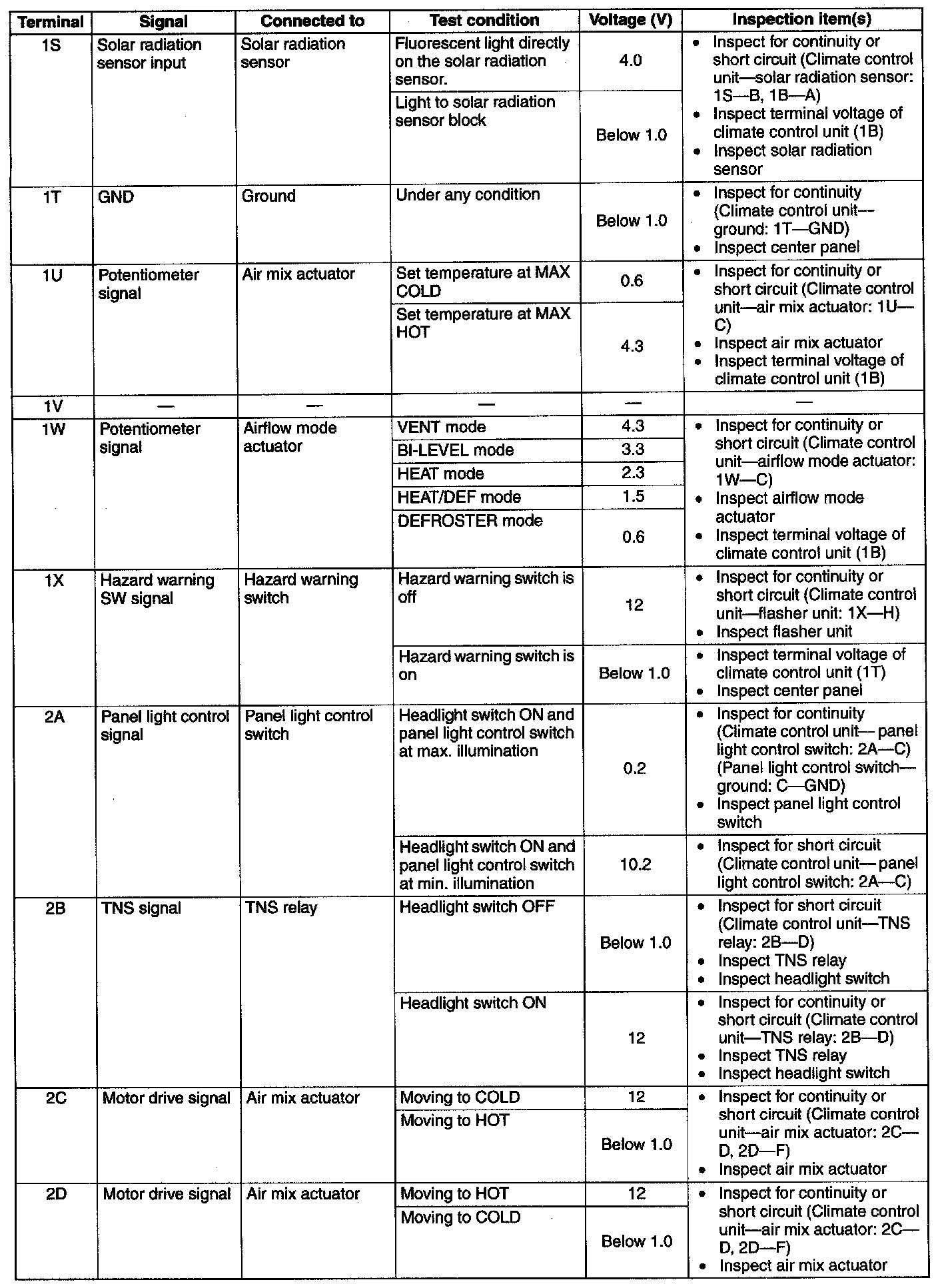

Terminal No 1S-2D:

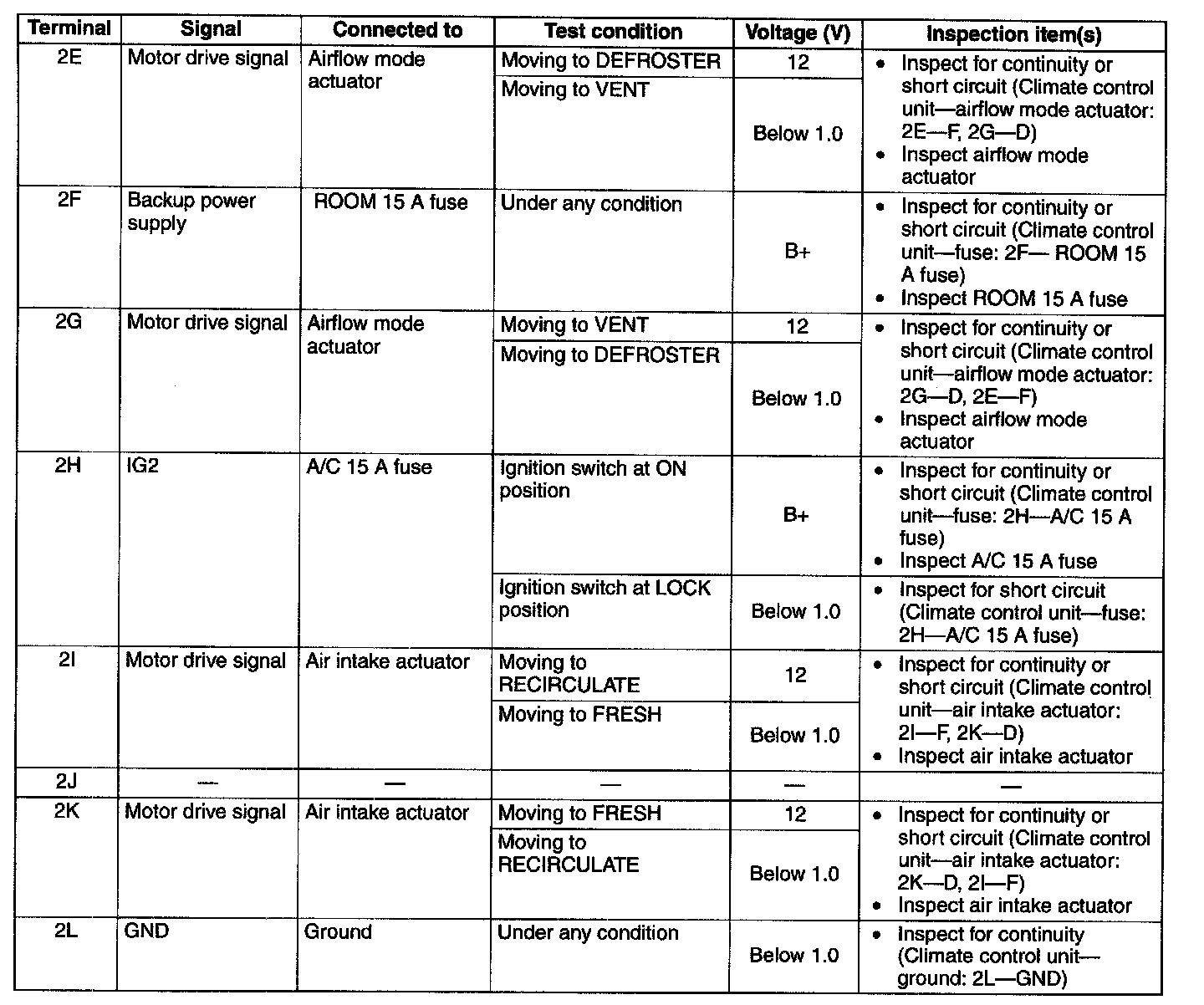

Terminal No 2E-2L:
