Monitoring System and Control System Device Relationship Chart

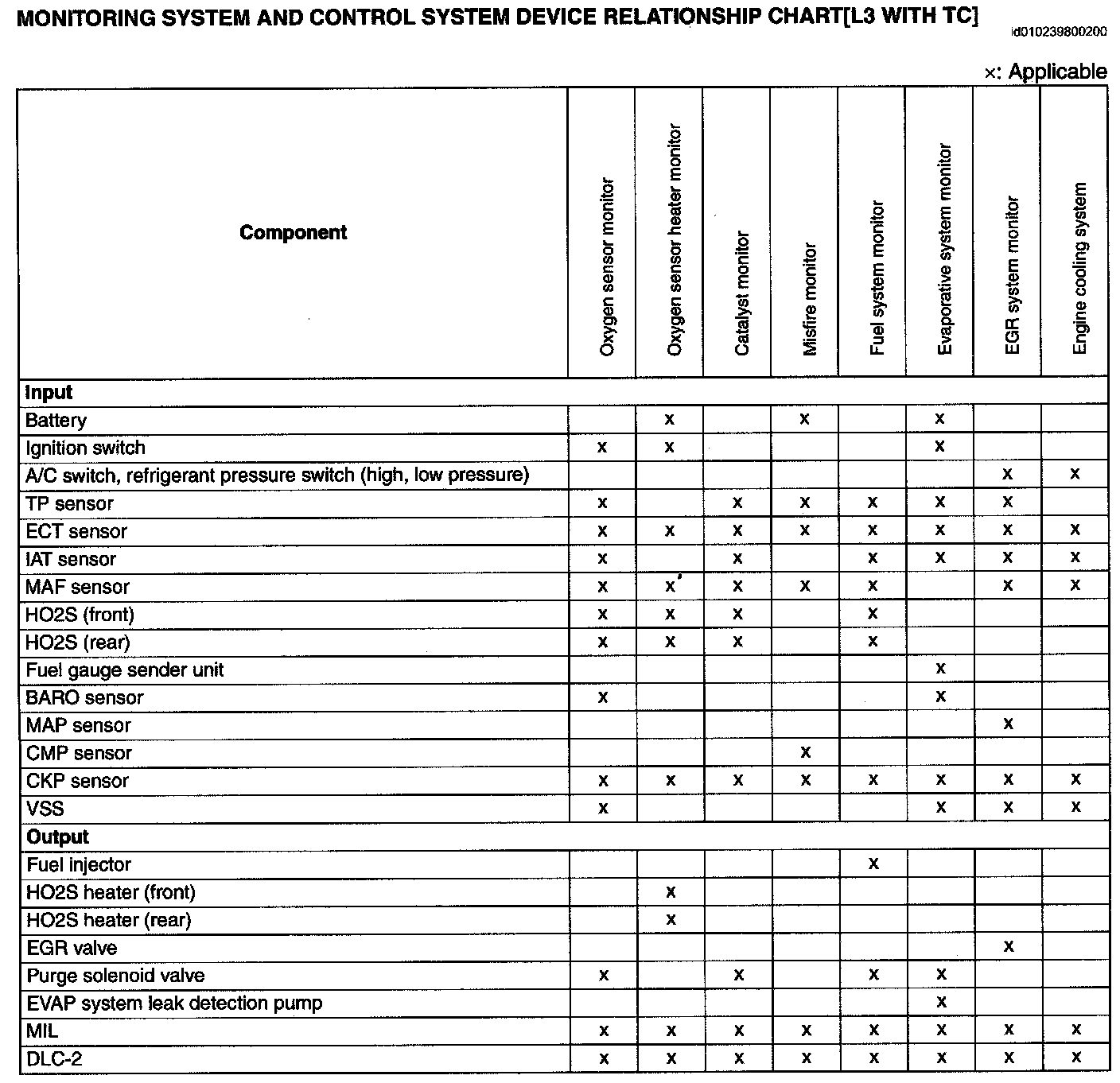

Monitoring System And Control System Device Relationship Chart[L3 With TC]:

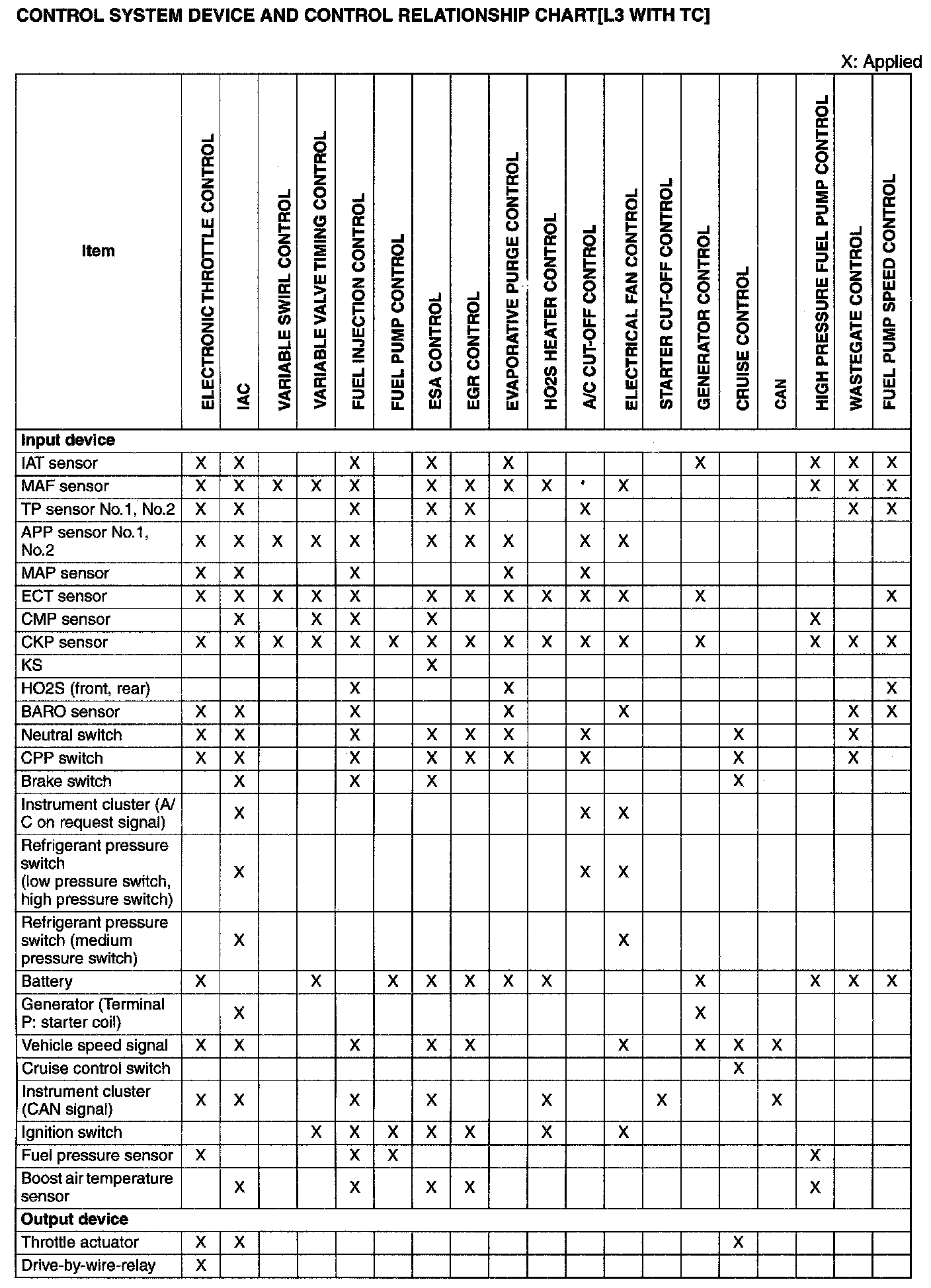

Control System Device And Control Relationship Chart[L3 With TC] Part 1:

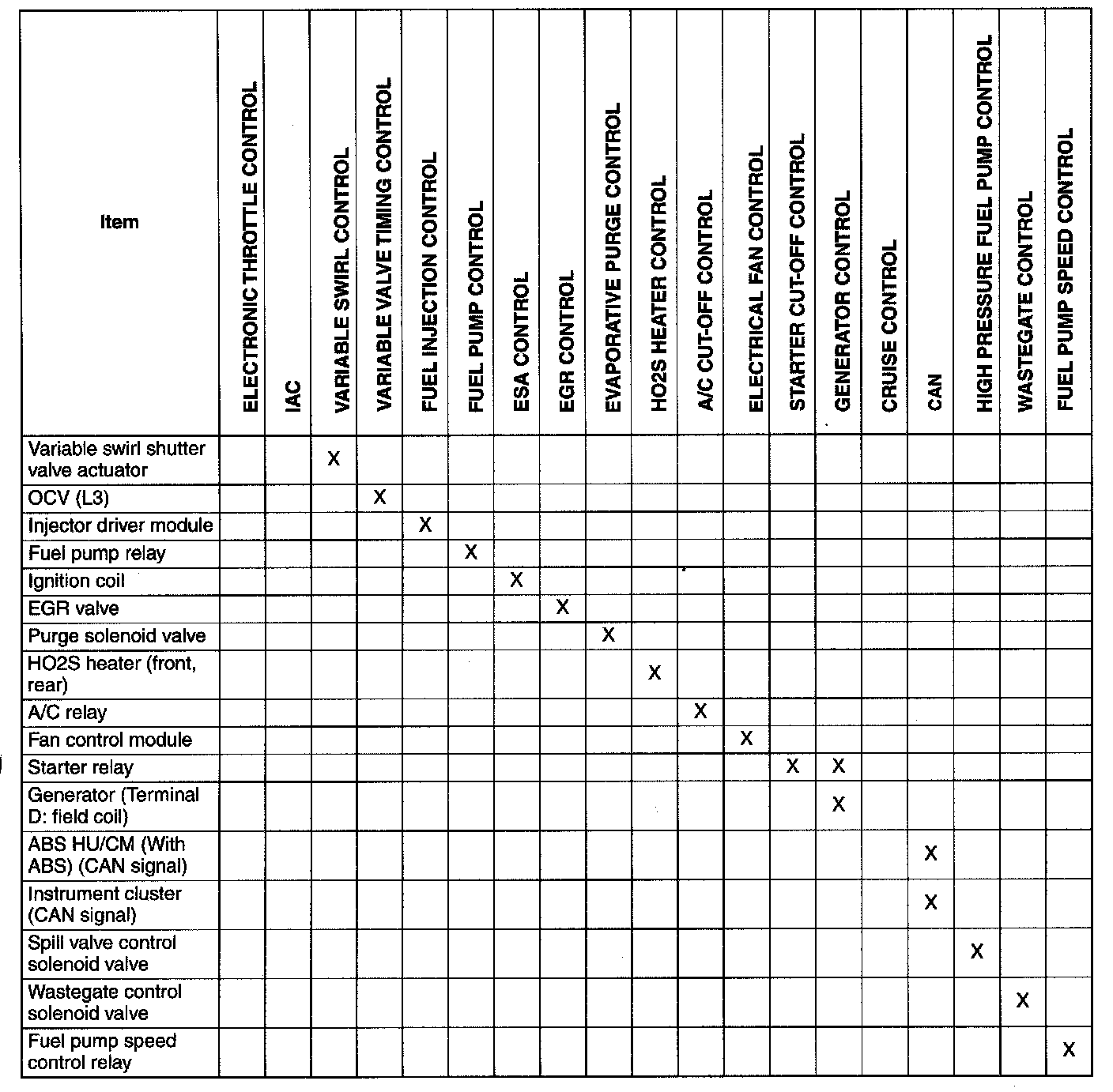

Control System Device And Control Relationship Chart[L3 With TC] Part 2 Part 2:
