Delayed Power Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the delayed power control module connector.

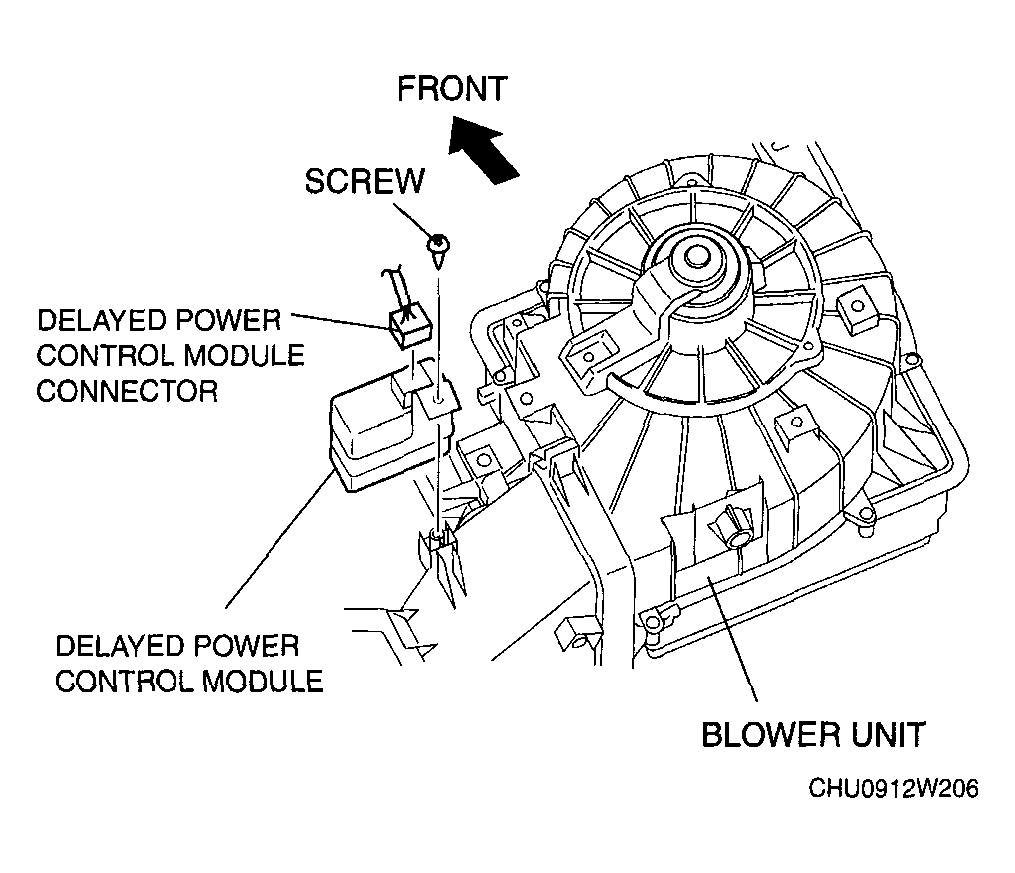

    3. Fig 1: Identifying Delayed Power Control Module
    G04564272Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolt and then remove the delayed power control module.
  4. Install in the reverse order of removal.
