Power Window Main Switch Inspection

  1. When inspecting the passenger's side and the rear, turn the power-cut switch to UNLOCK.
  2. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.
  3. Connect battery positive voltage to terminal N and ground to the terminal K. Verify that continuity exists.
    • If not as specified, replace the power window main switch.

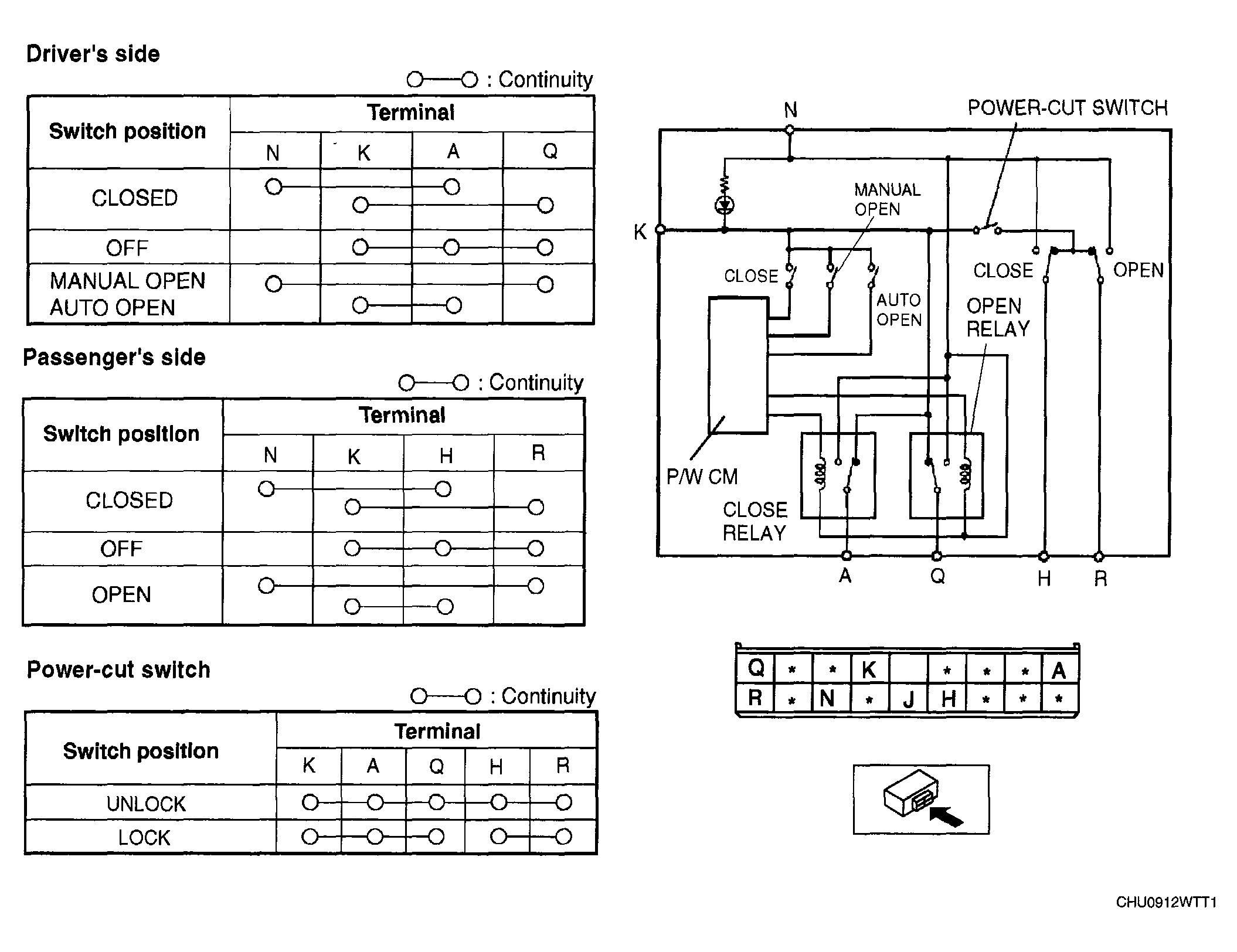

      Fig 1: Power Window Main Switch Continutiy Tables & Circuitry
      G04564267Courtesy of MAZDA MOTORS CORP.
