DSC HU/Cm Removal/Installation: Notes
CAUTION:
- When replacing the DSC HU/CM with a new one, configuration procedure must be performed before removing the DSC HU/CM. If configuration is not completed before removing the DSC HU/CM, DTC B2477 will be detected.
- The DSC may not function normally when the DSC HU/CM is replaced. After installation, always perform the initialization procedures for the combined sensor and the steering angle sensor. (See COMBINED SENSOR INITIALIZATION PROCEDURE .) (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE .)
- The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.
- Perform DSC configuration. (See DSC CONFIGURATION .)
- Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)

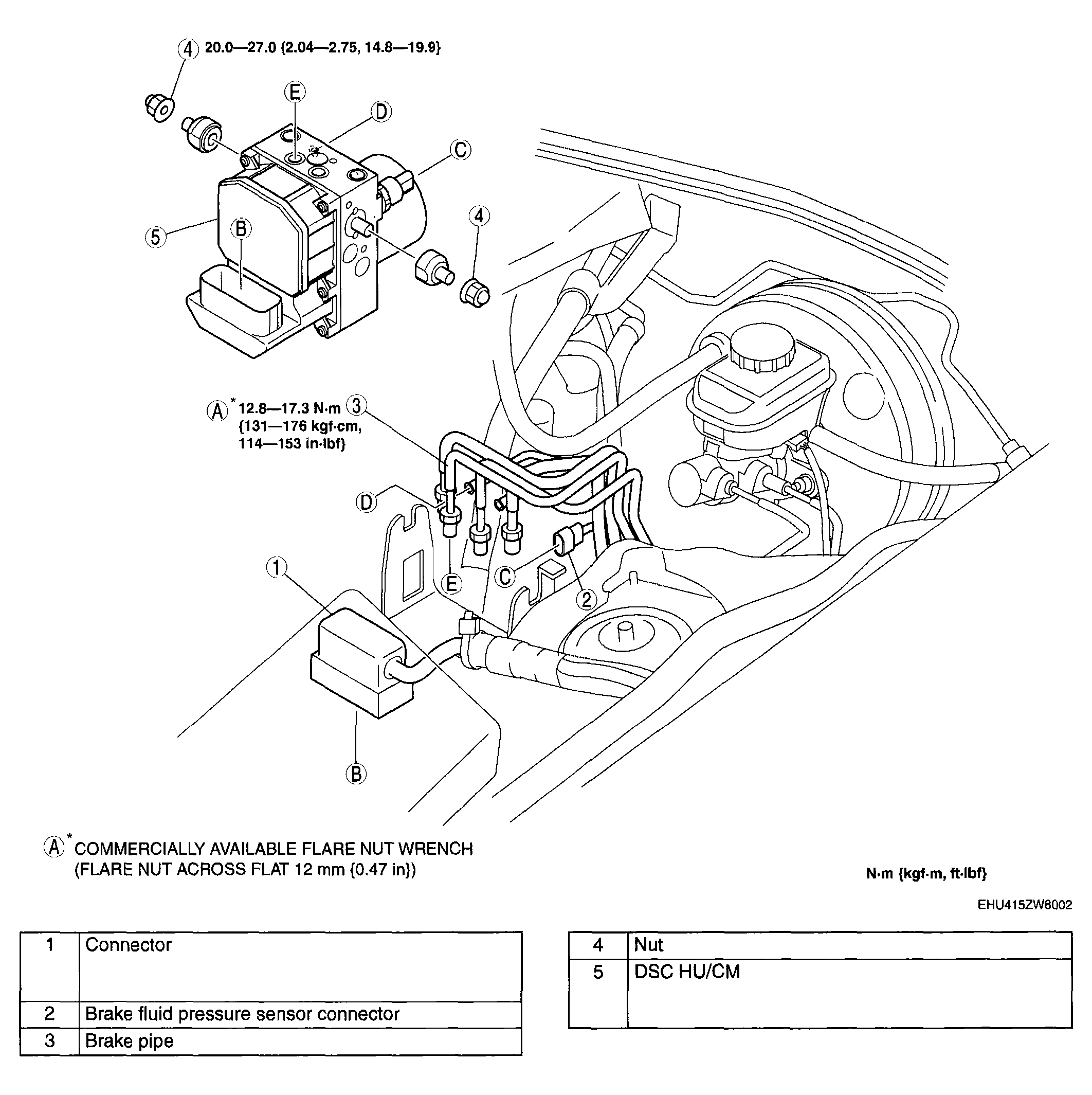

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
