DSC System Diagram

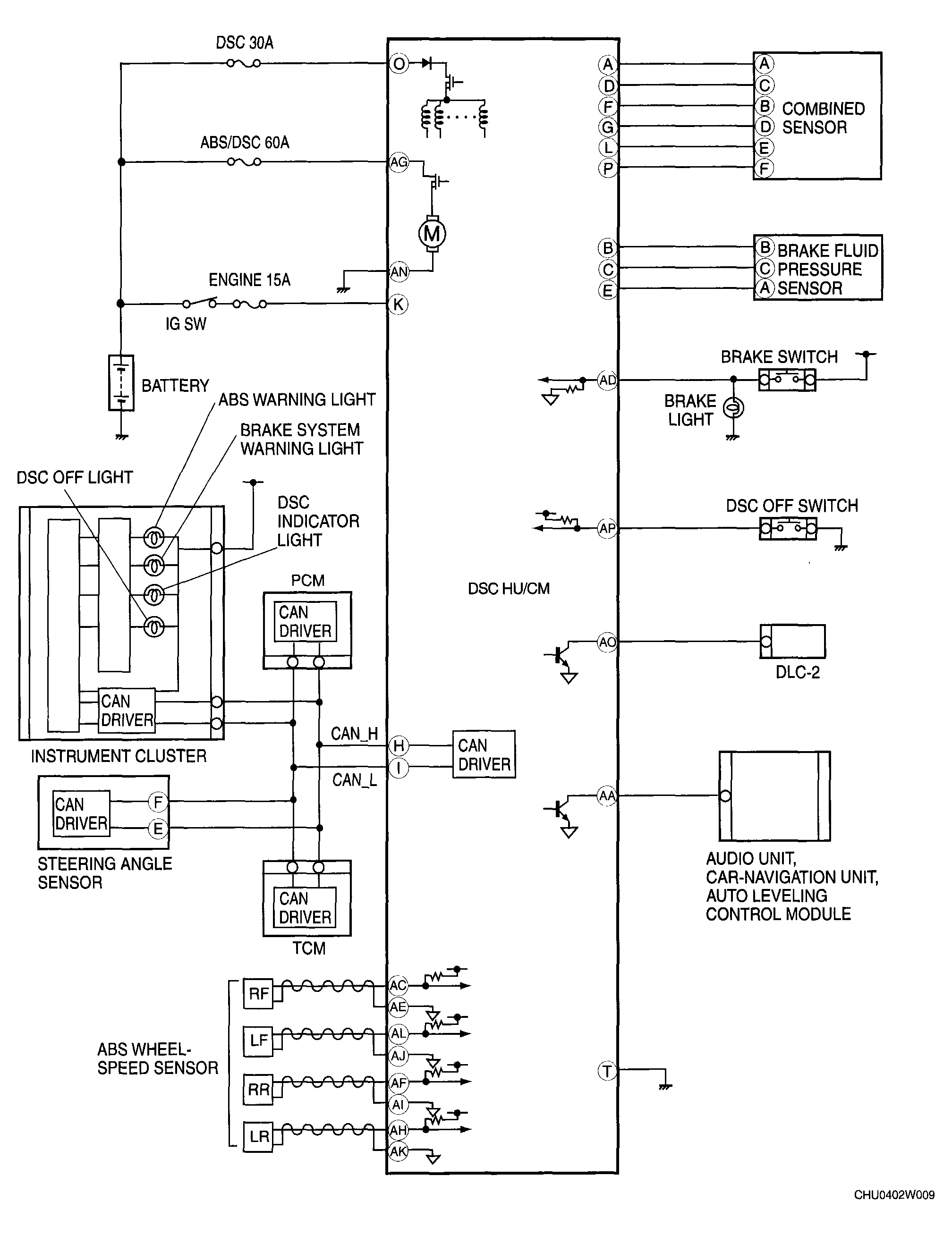

Fig 1: DSC System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
