Dynamic Stability Control Location Index

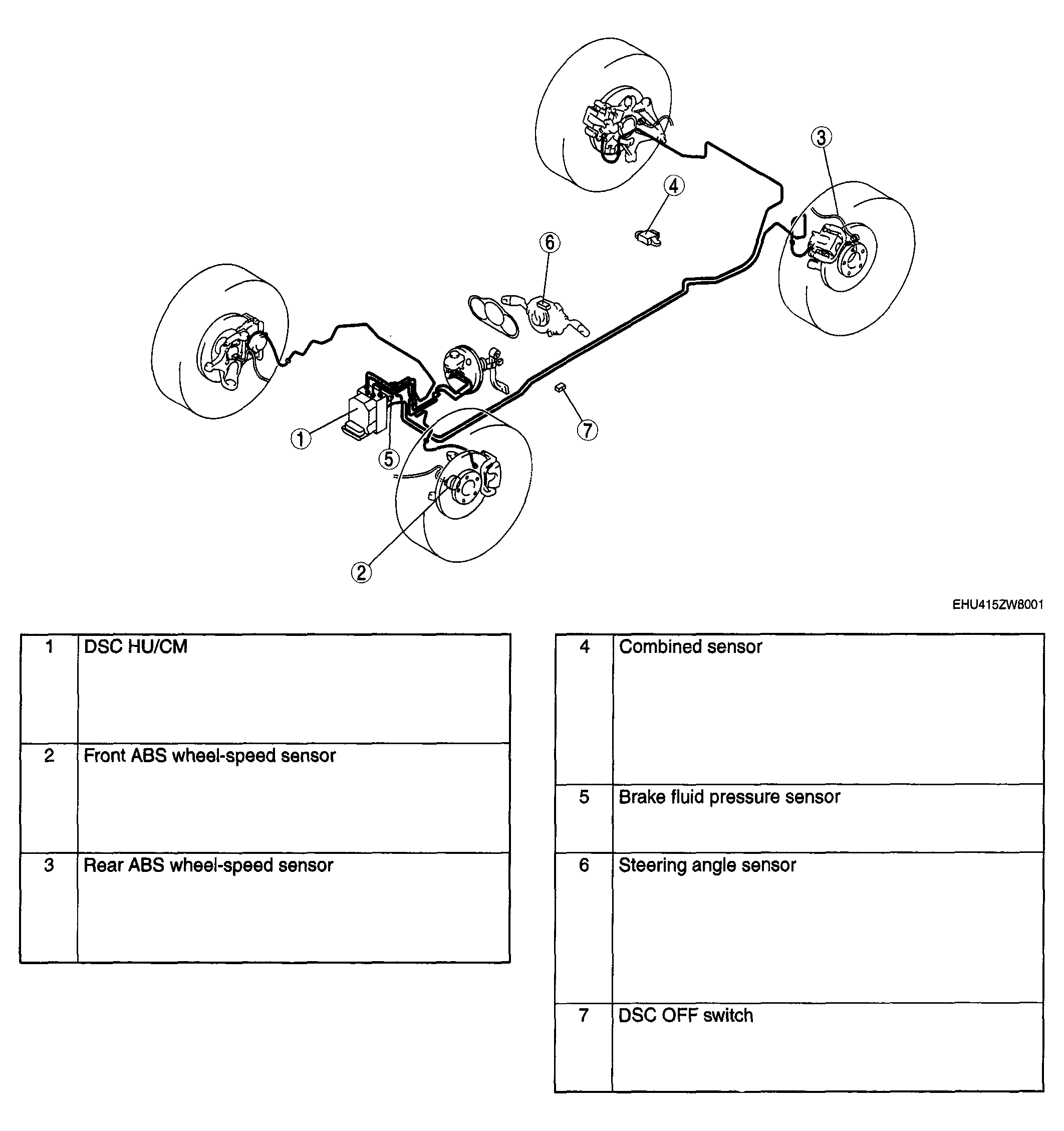

Fig 1: Identifying Dynamic Stability Control System Components
G04563424Courtesy of MAZDA MOTORS CORP.
