Secondary Shutter Valve (SSV) Switch Removal/Installation

Disconnect the SSV switch connector.
Remove the SSV installation screws and remove the SSV switch.
Install in the reverse order of removal.
SSV switch tightening torque 1.3-1.9 N.m {14-19 kgf.cm, 12-16 in.lbf}

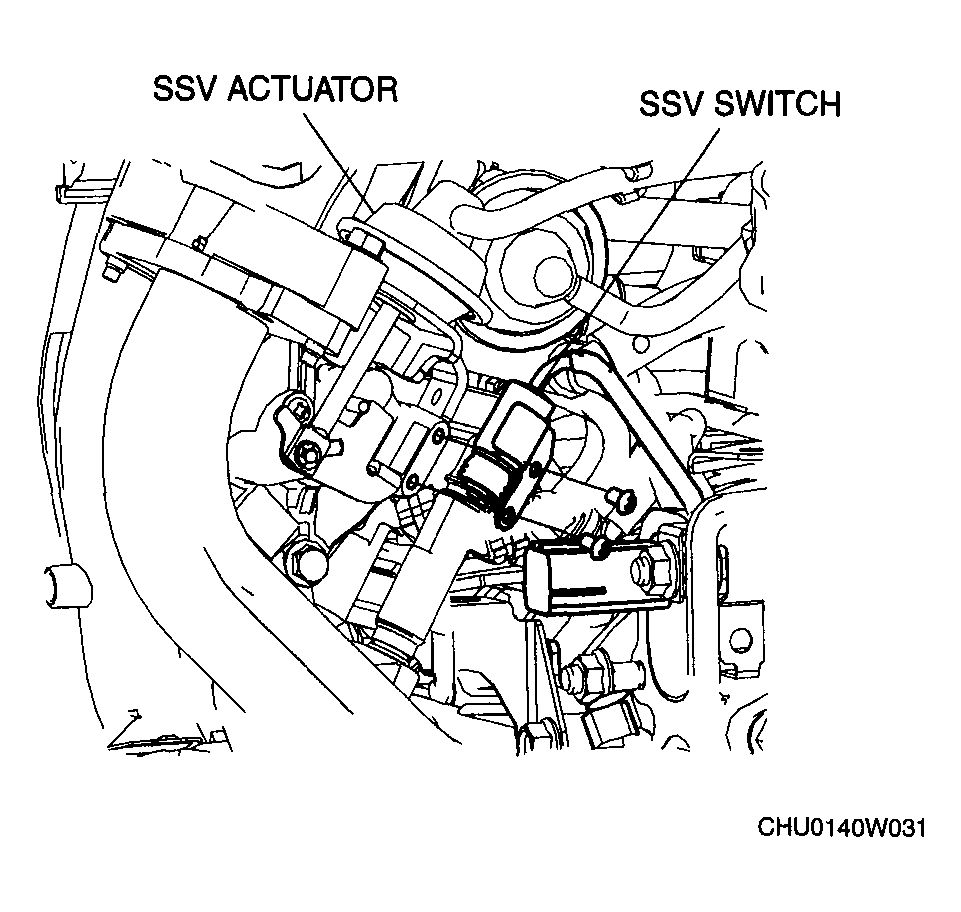

Fig 1: Identifying SSV Actuator & Switch
Courtesy of MAZDA MOTORS CORP.
