Fuel Injector Removal/Installation: Notes

  1. Follow the before repair procedure and perform fuel line safety procedure. (See BEFORE REPAIR PROCEDURE ).
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION )
  3. Remove the extension manifold (upper). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION )
  4. Remove the extension manifold (lower). 3(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION )
  5. Remove in the order indicated in Fig 1.

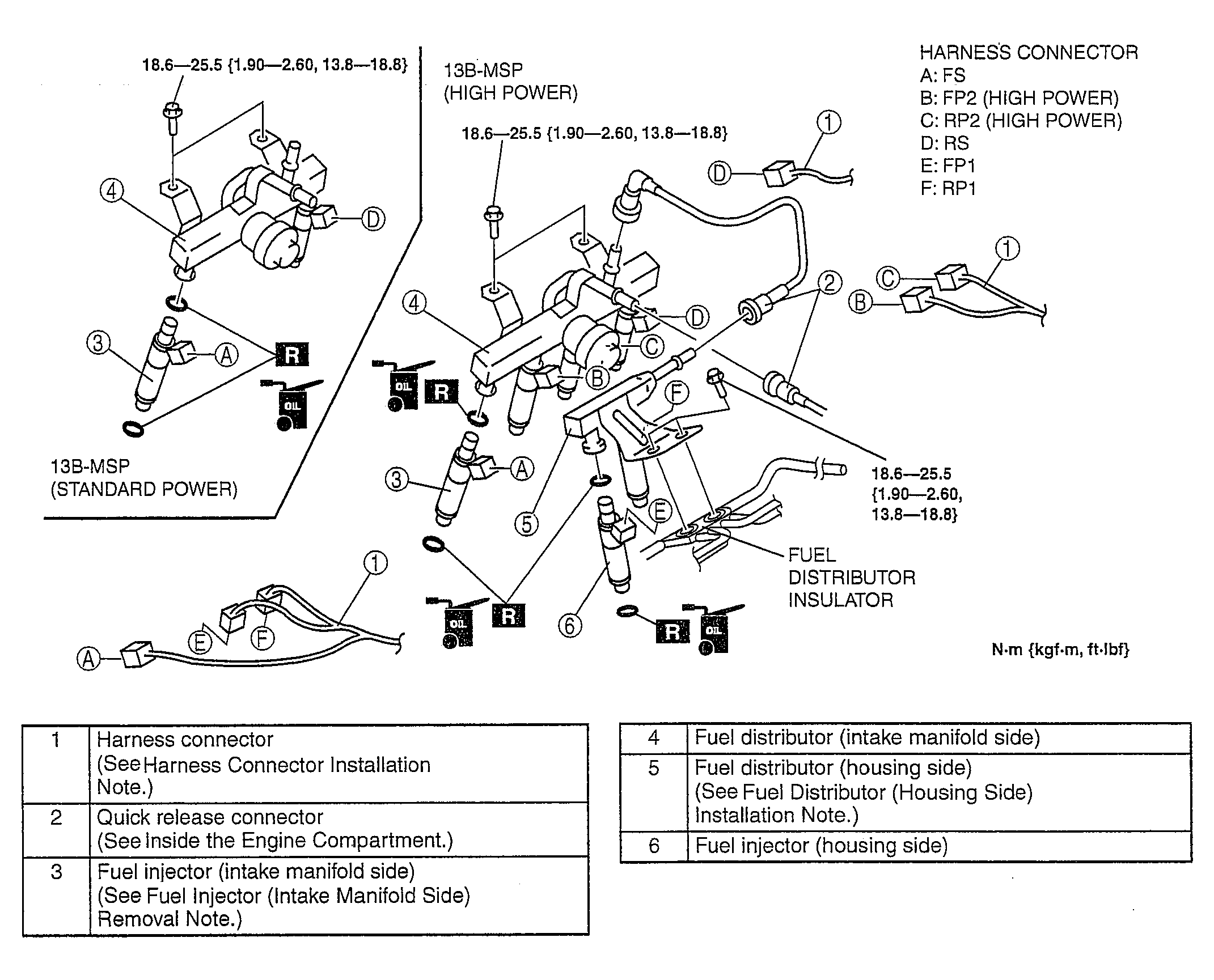

    Fig 1: Fuel Distributors And Injectors With Torque Specifications
    G00455141Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Inspect all parts by performing the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE ).
