Overhaul

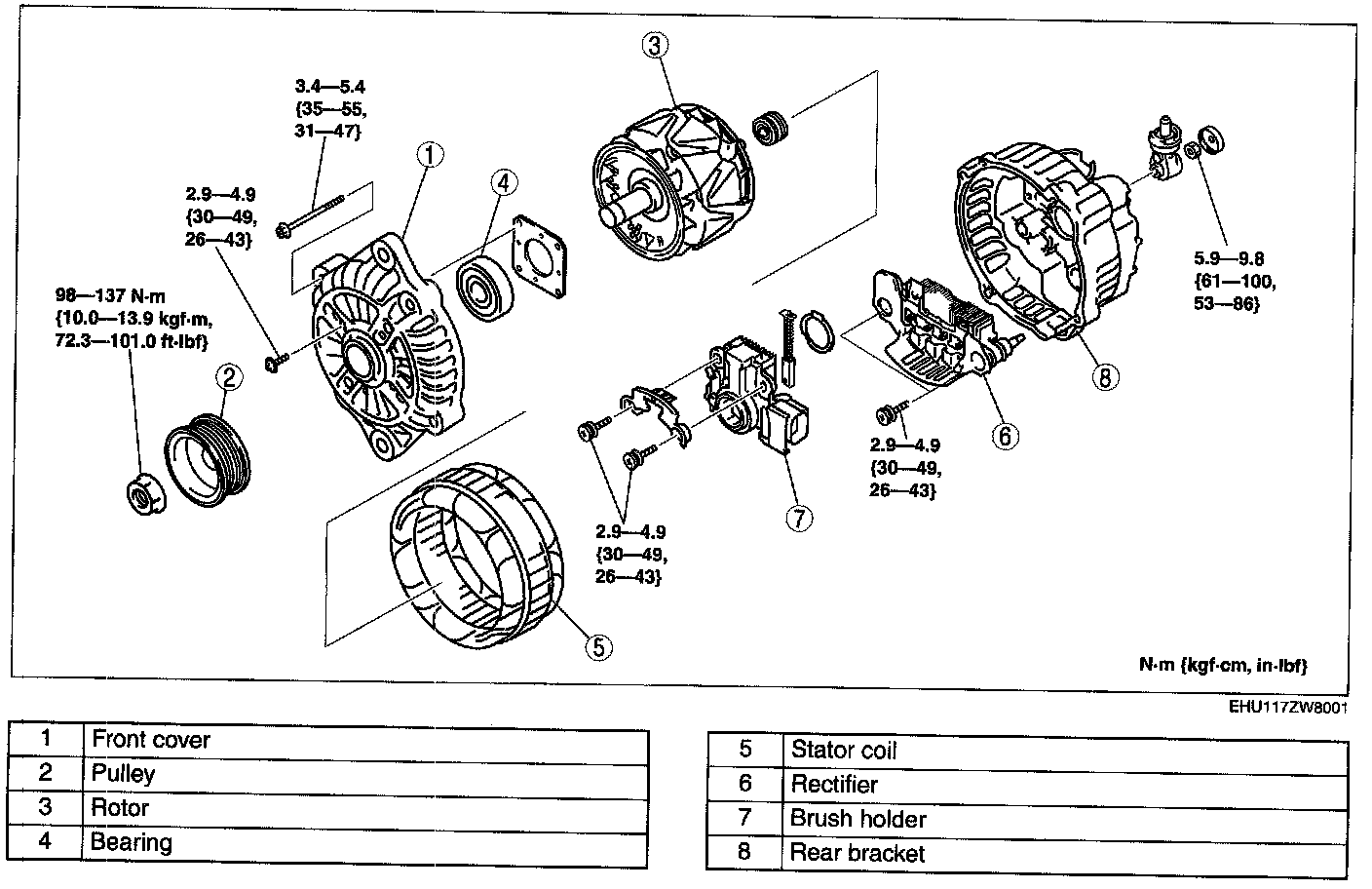

GENERATOR DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.




2. Assemble in the reverse order of disassembly.
