Front Hatness-Short Cord
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Hatness-Short Cord

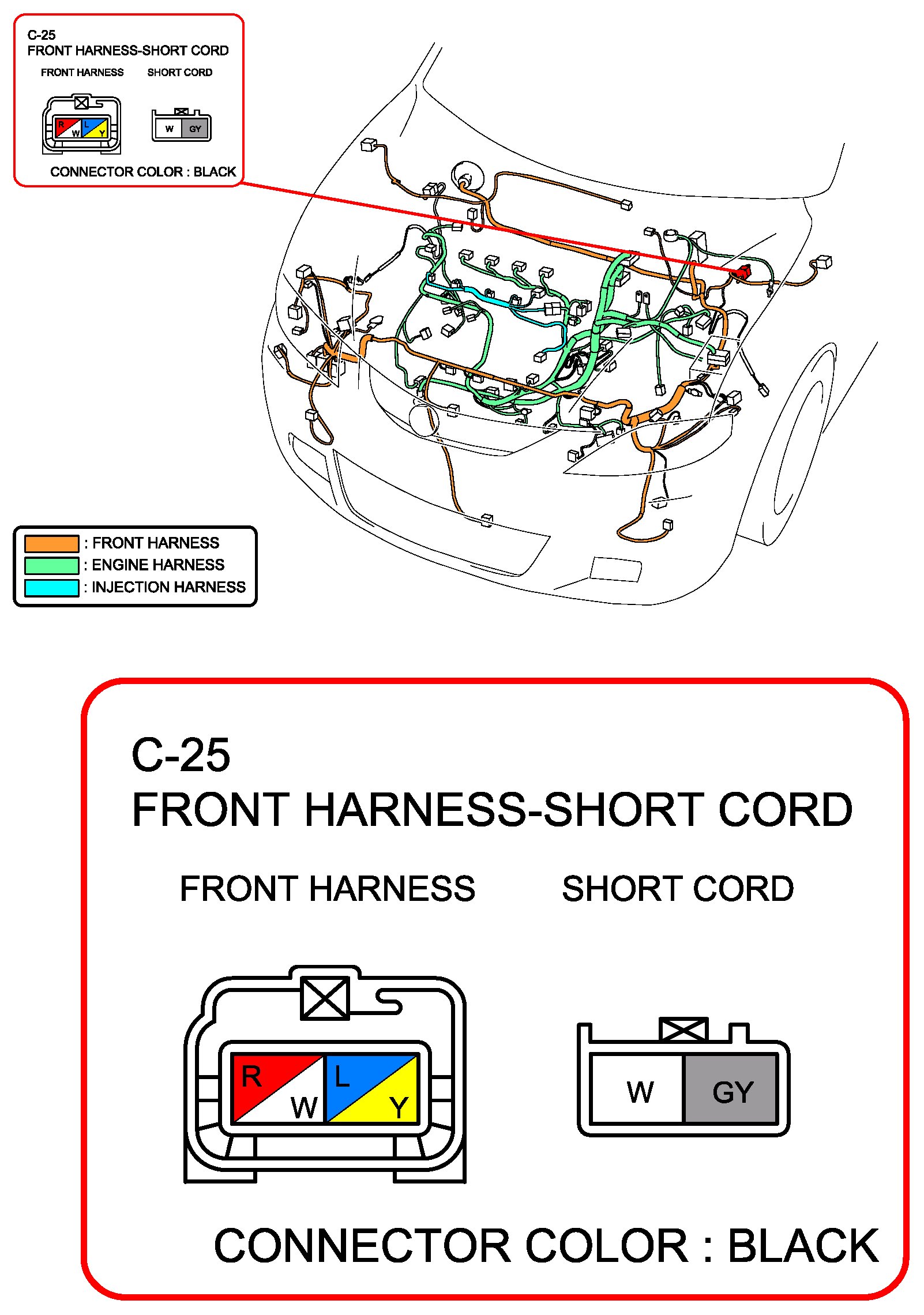

C-25 (Front Hatness-Short Cord):
