Circuit Open/Short Inspection: Notes

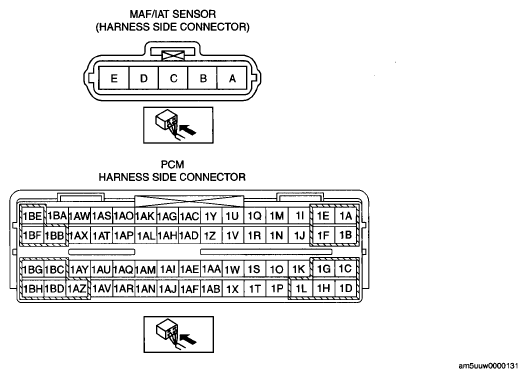

Fig 1: Identifying MAF/IAT Sensor And PCM Connector Terminals
G05543228Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
