Circuit Open/Short Inspection: Notes

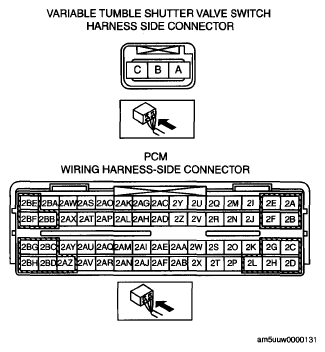

Fig 1: Identifying Variable Tumble Shutter Valve Switch And PCM Connector Terminals
G05543223Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following harness for an open or short wiring. (Continuity inspection)
