DTC P0222 [L3]: Notes
DTC P0222 [L3] DETECTION CONDITIONS AND POSSIBLE CAUSES
| DTC P0222 |
TP sensor No.2 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from TP sensor No.2 when the engine is running. If the input voltage is below 0.2 V
, the PCM determines that the TP sensor No.2 circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor No.2 malfunction
- Connector or terminal malfunction

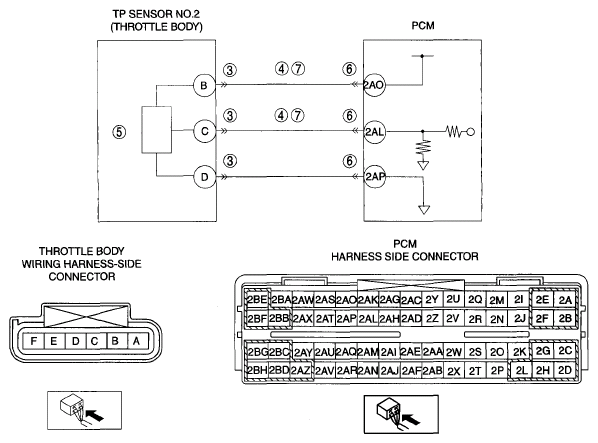

- Open circuit in wiring harness between throttle body terminal B and PCM terminal 2AO
- Short to ground in wiring harness between throttle body terminal B and PCM terminal 2AO
- Open circuit in wiring harness between throttle body terminal C and PCM terminal 2AL
- Short to ground in wiring harness between throttle body terminal C and PCM terminal 2AL
- PCM malfunction
|
|
|
