Monitoring System And Control System Device Relationship Chart [L3]

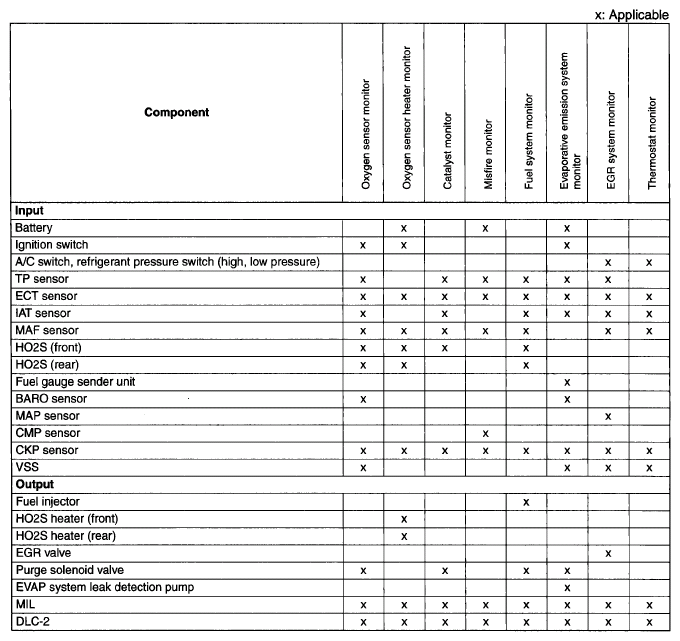

Fig 1: Monitoring System And Control System Device Relationship Chart
G05542926Courtesy of MAZDA MOTORS CORP.
