Power Mirror Switch: Testing and Inspection

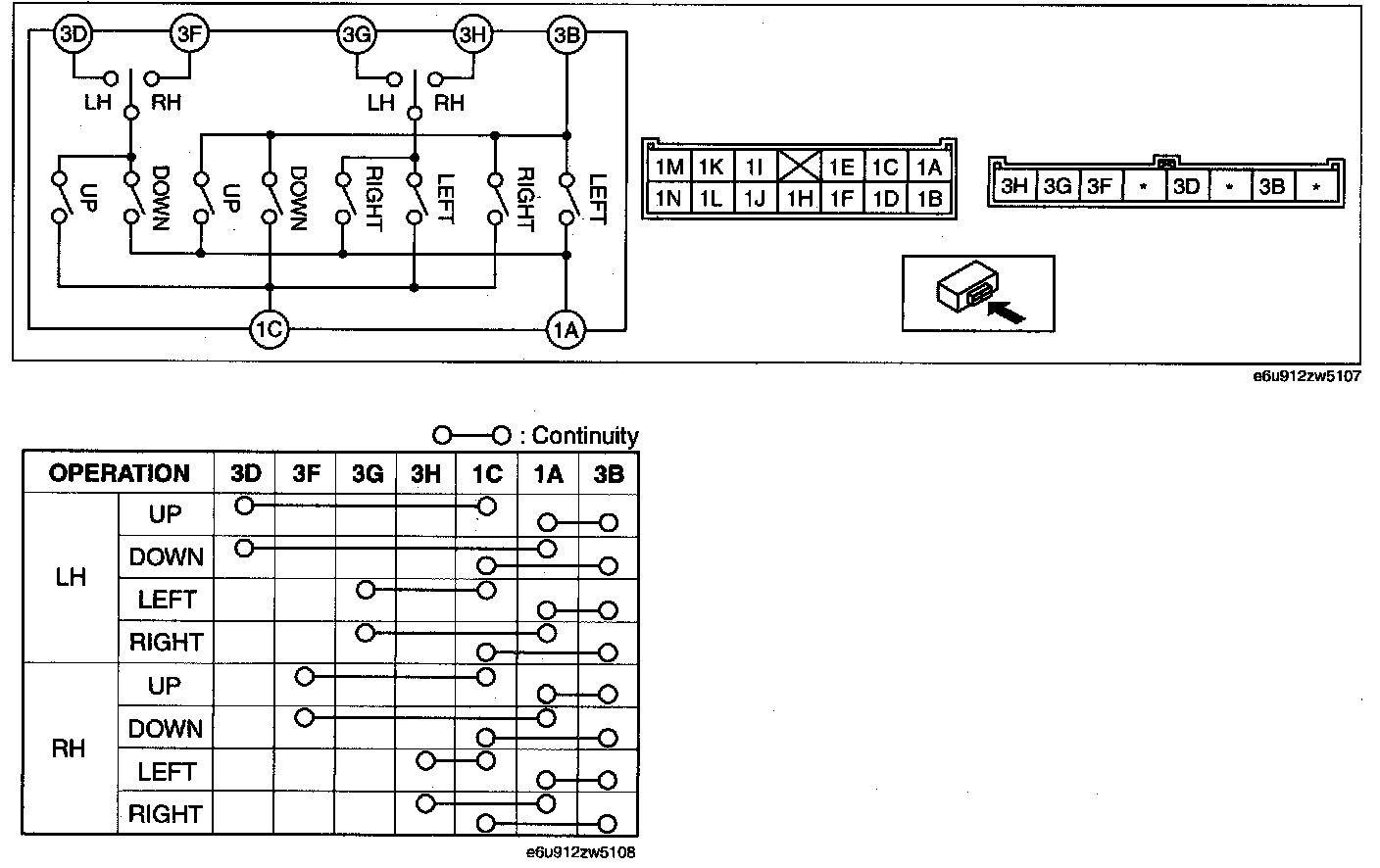

POWER OUTER MIRROR SWITCH INSPECTION

1. Inspect for continuity between the power outer mirror switch terminals.
- If there is any malfunction, replace the power window main switch.
