Connector End Views - Power Windows

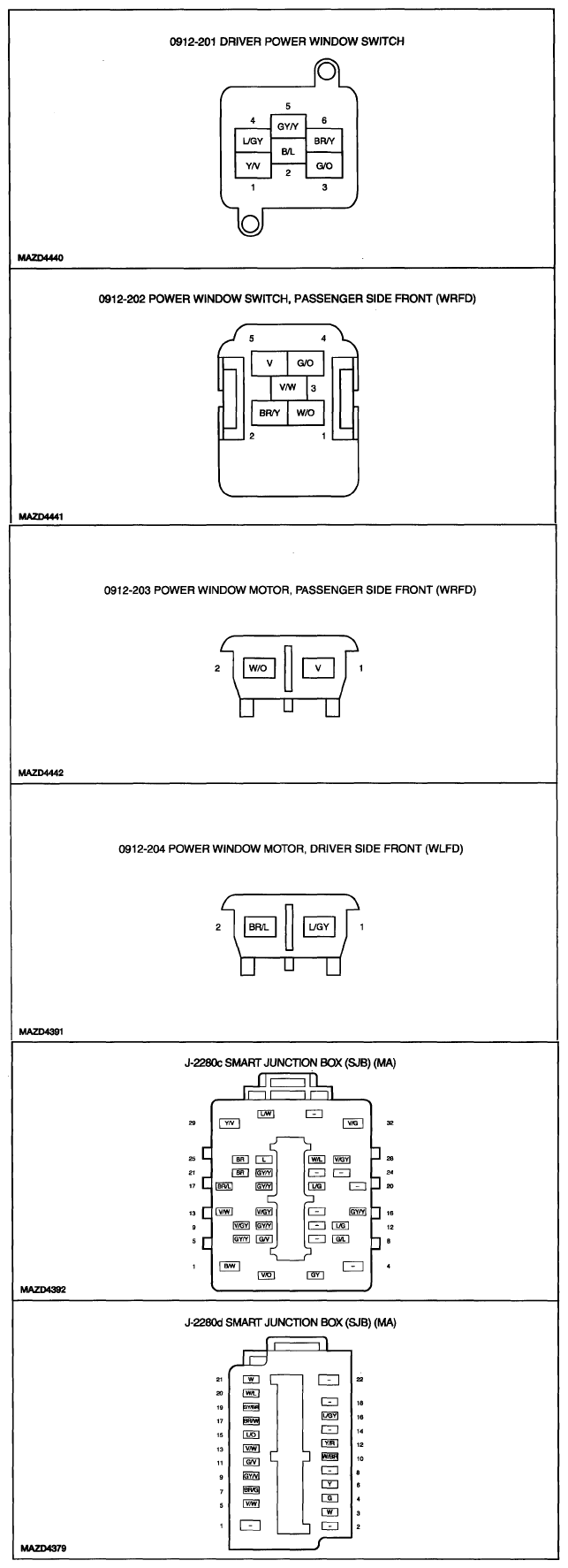

Fig 1: Identifying Power Windows Connector End Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
