Engine Mount Bracket (RH) Removal Note: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Attach the SST and support the engine.
Remove the engine mount rubber (LH) installation nut.

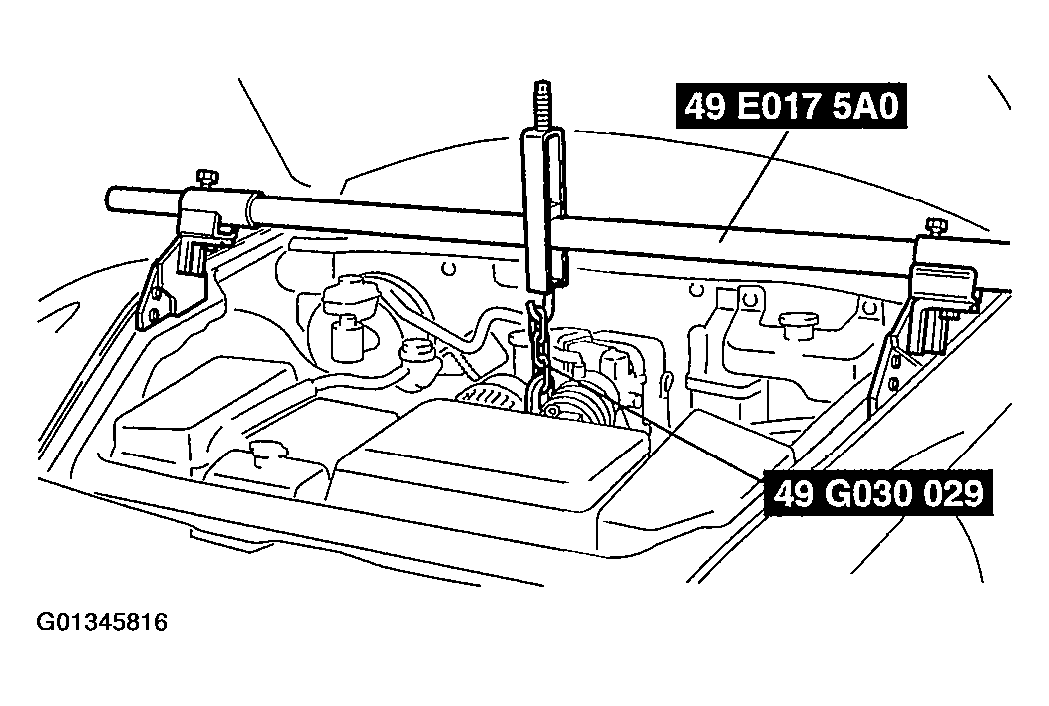

Fig 1: Supporting Engine Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated. See Fig 2 .

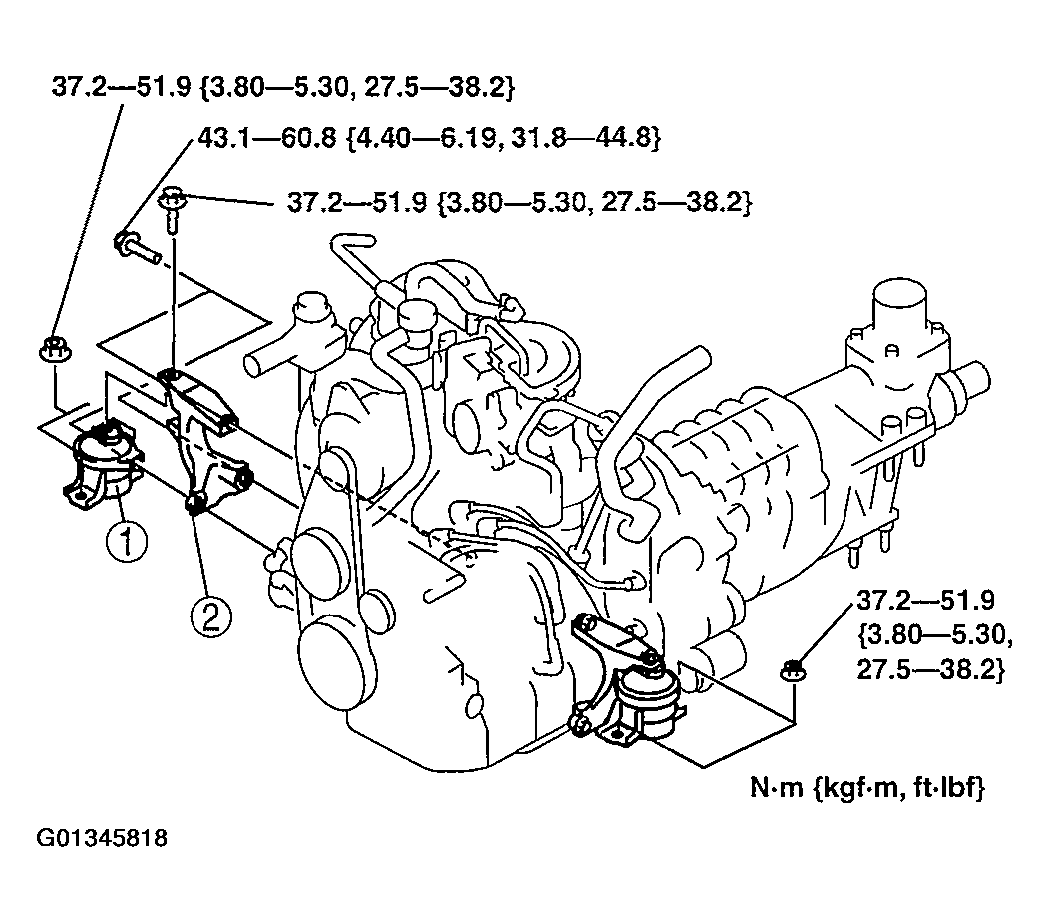

Fig 2: Removal Order Of Engine Mount Bracket (RH)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Removing/Installing Engine Mount Bracket (RH)
Courtesy of MAZDA MOTORS CORP.
