Exhaust Manifold Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not reuse the gasket and self-lock nuts on the joint area between the engine and exhaust manifold.
If a gasket with detached crimps is used on the joint area between the engine and exhaust manifold, exhaust gas will leak. Be careful not to allow the crimps to detach from the gasket. Do not use a gasket if any crimps are detached.

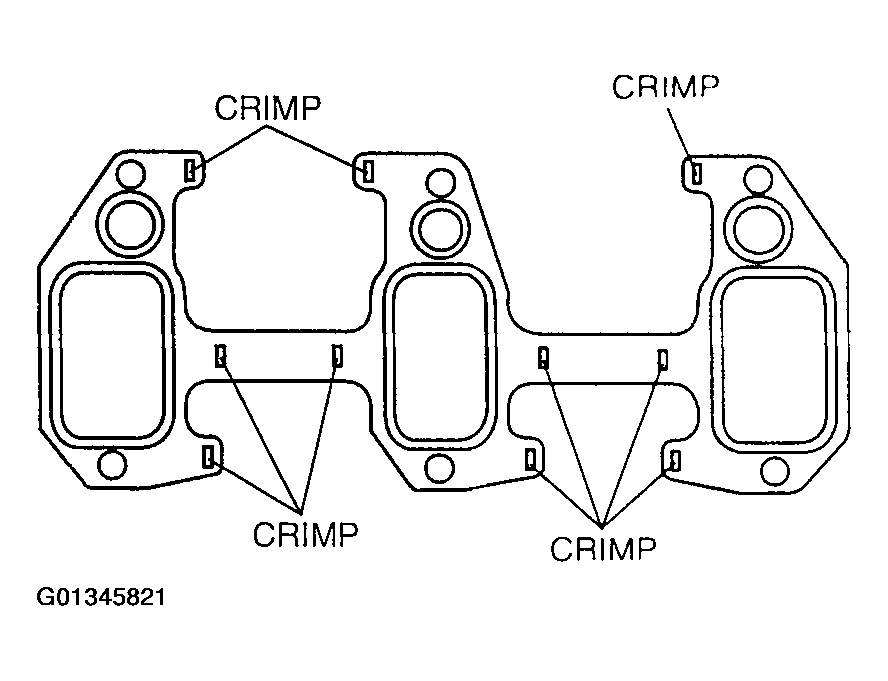

Fig 1: Locating Exhaust Manifold Crimp

Courtesy of MAZDA MOTORS CORP.
