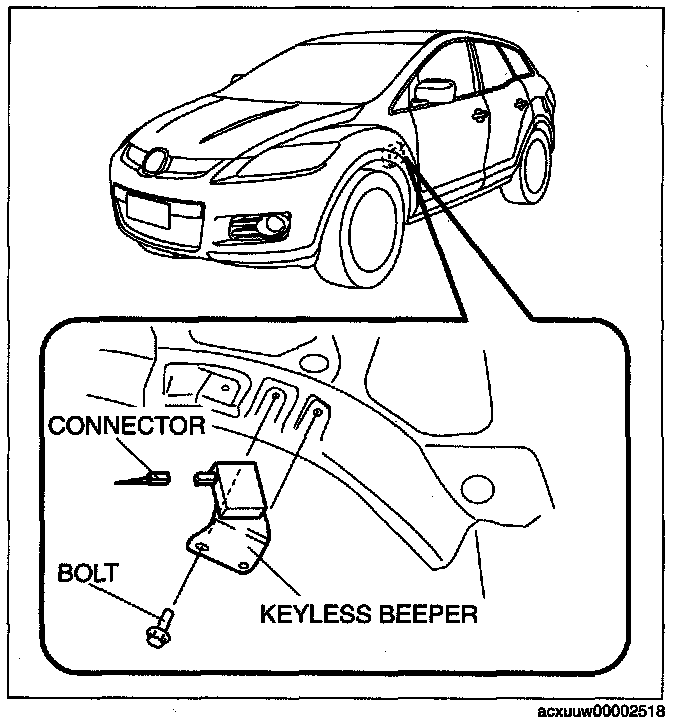

Keyless Beeper Removal/Installation [Advanced Keyless System]

KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

1. Disconnect the negative battery cable.
2. Remove the mud guard.
3. Remove the BOLTS.




4. Disconnect the connector, then remove the keyless beeper.
5. Install in the reverse order of removal.
