Keyless Entry System Preliminary Inspection

KEYLESS ENTRY SYSTEM PRELIMINARY INSPECTION [KEYLESS ENTRY SYSTEM]

- Perform the following preliminary inspection before troubleshooting.

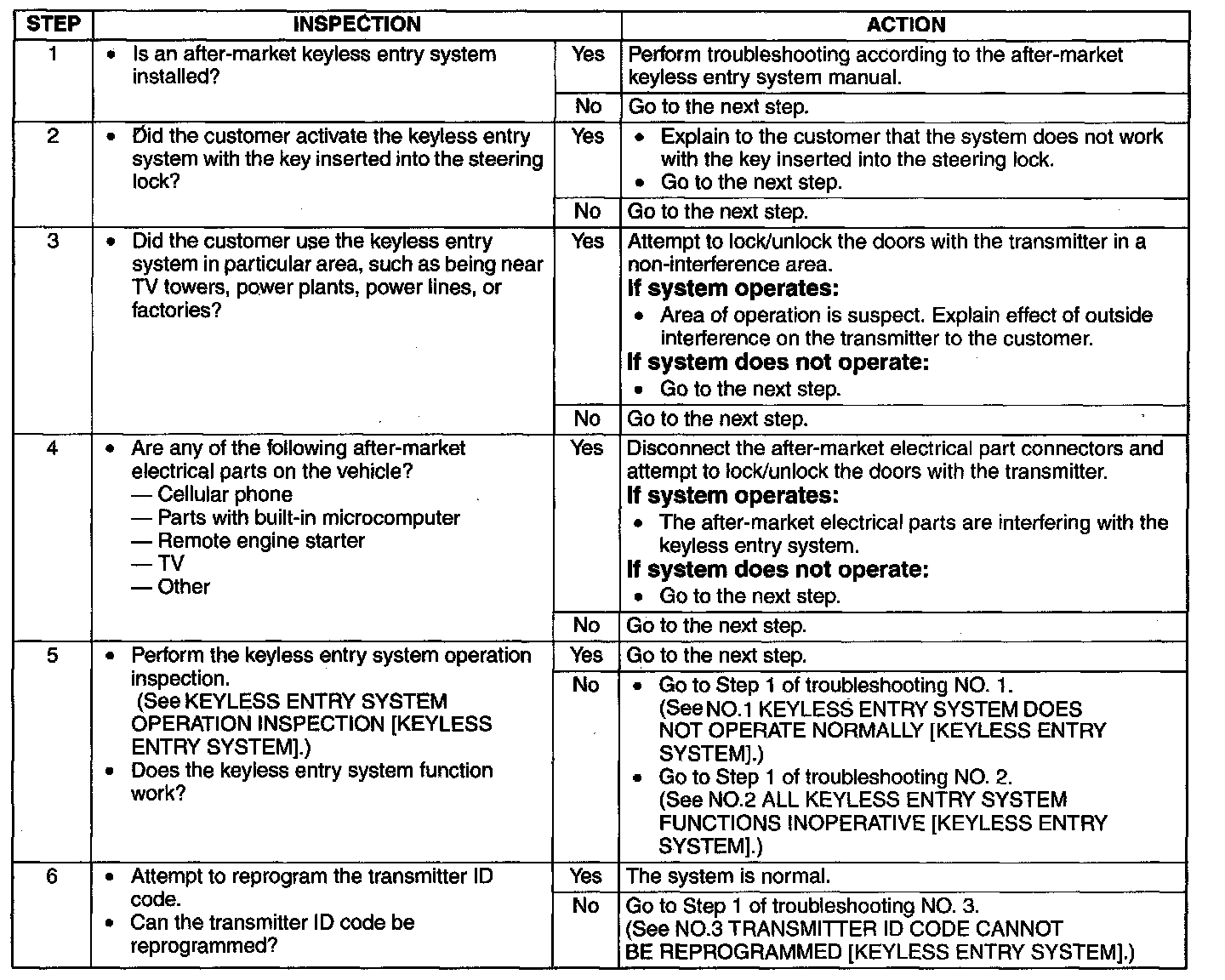

Step 1-Step 6:
