EC-AT Control System

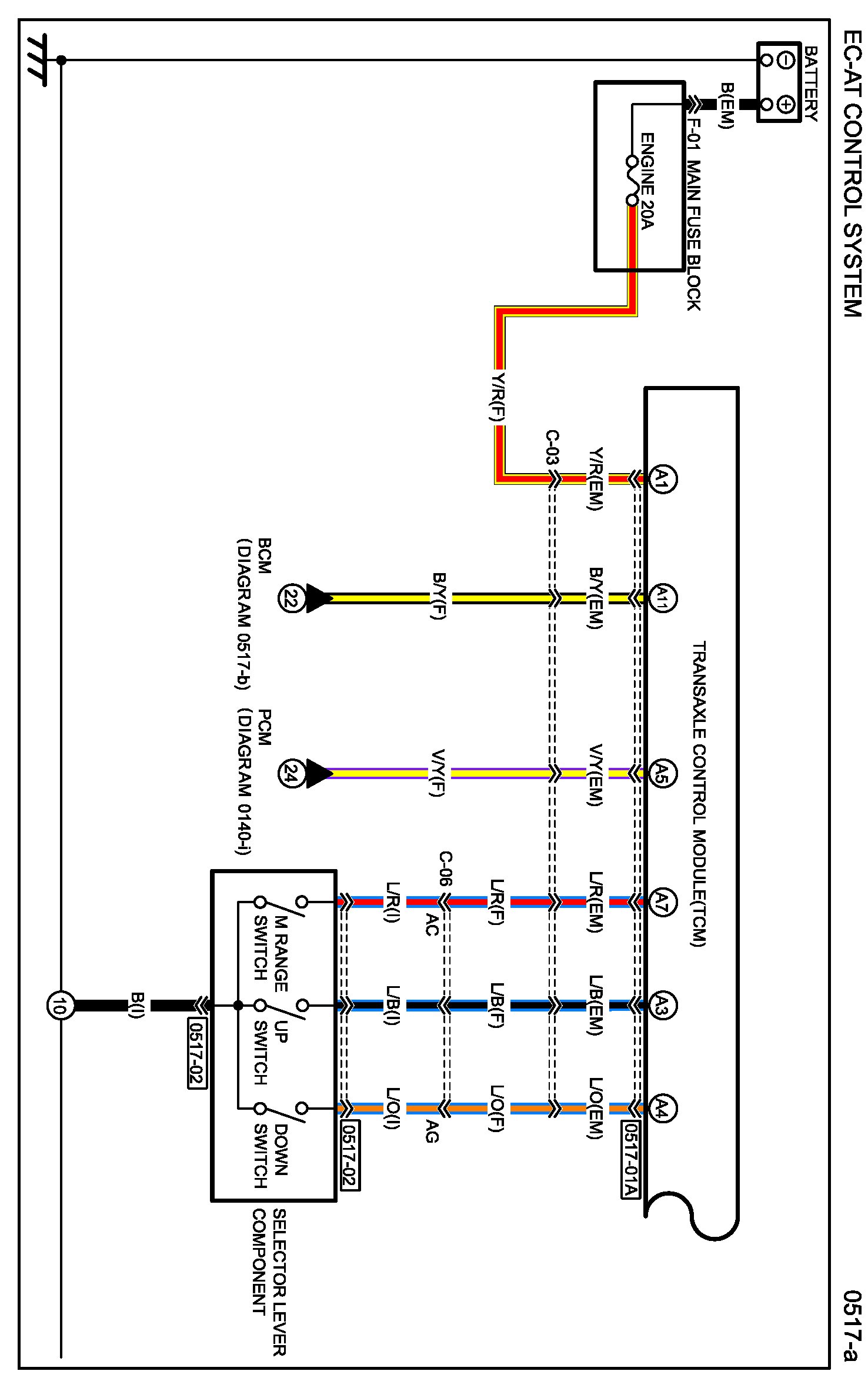

Diagram 0517-a:

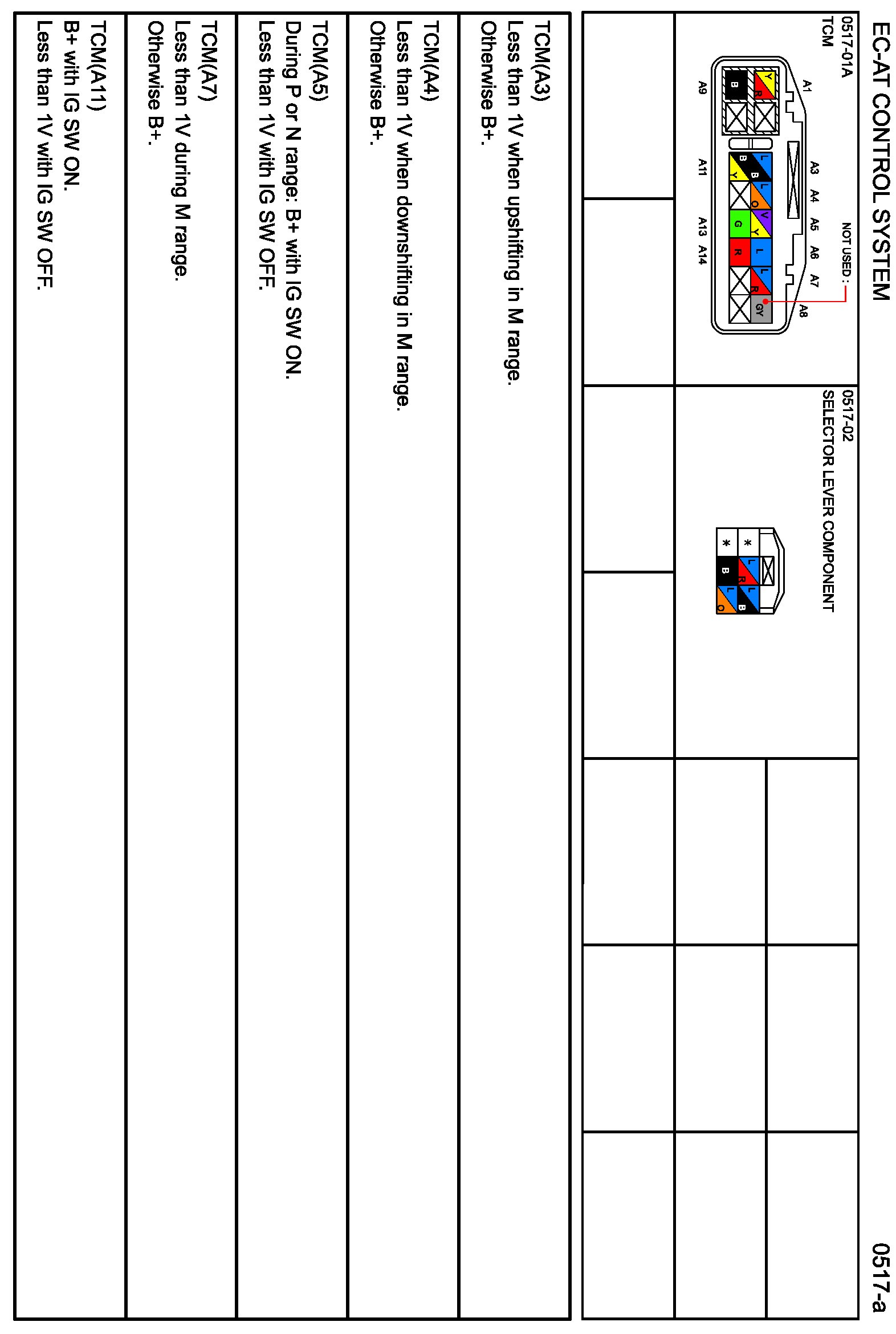

Connectors 0517-a:

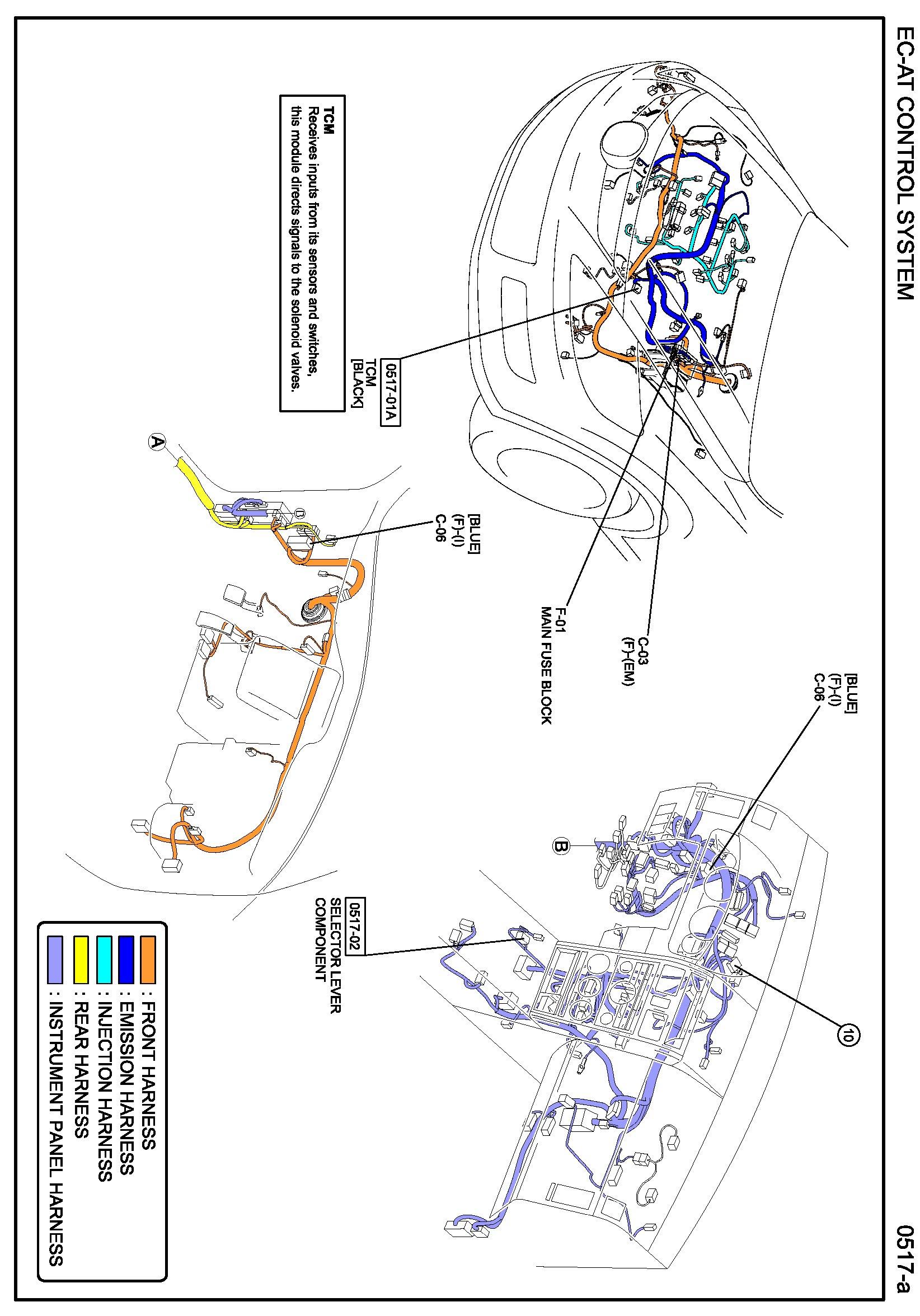

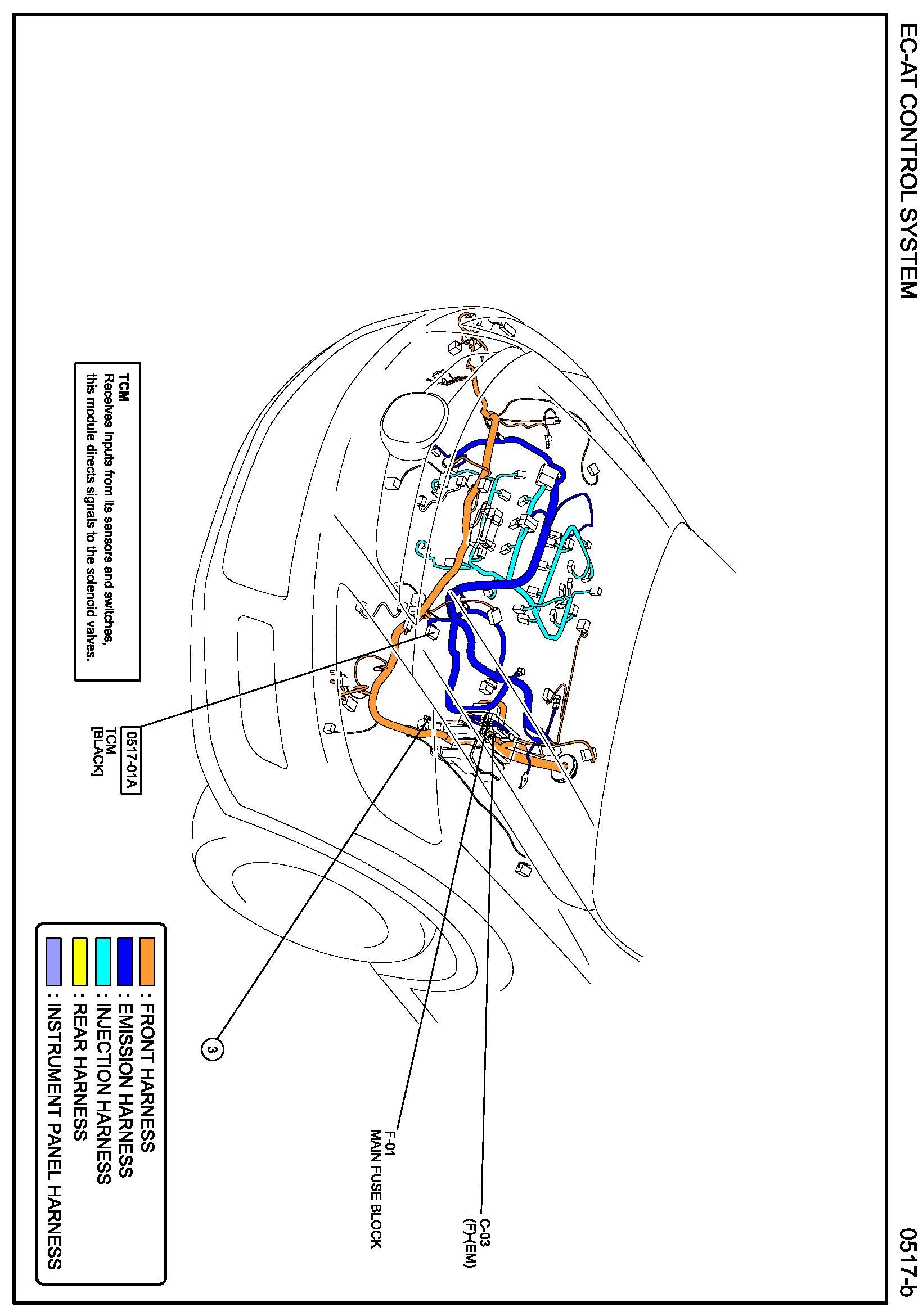

Routing View 0517-a:

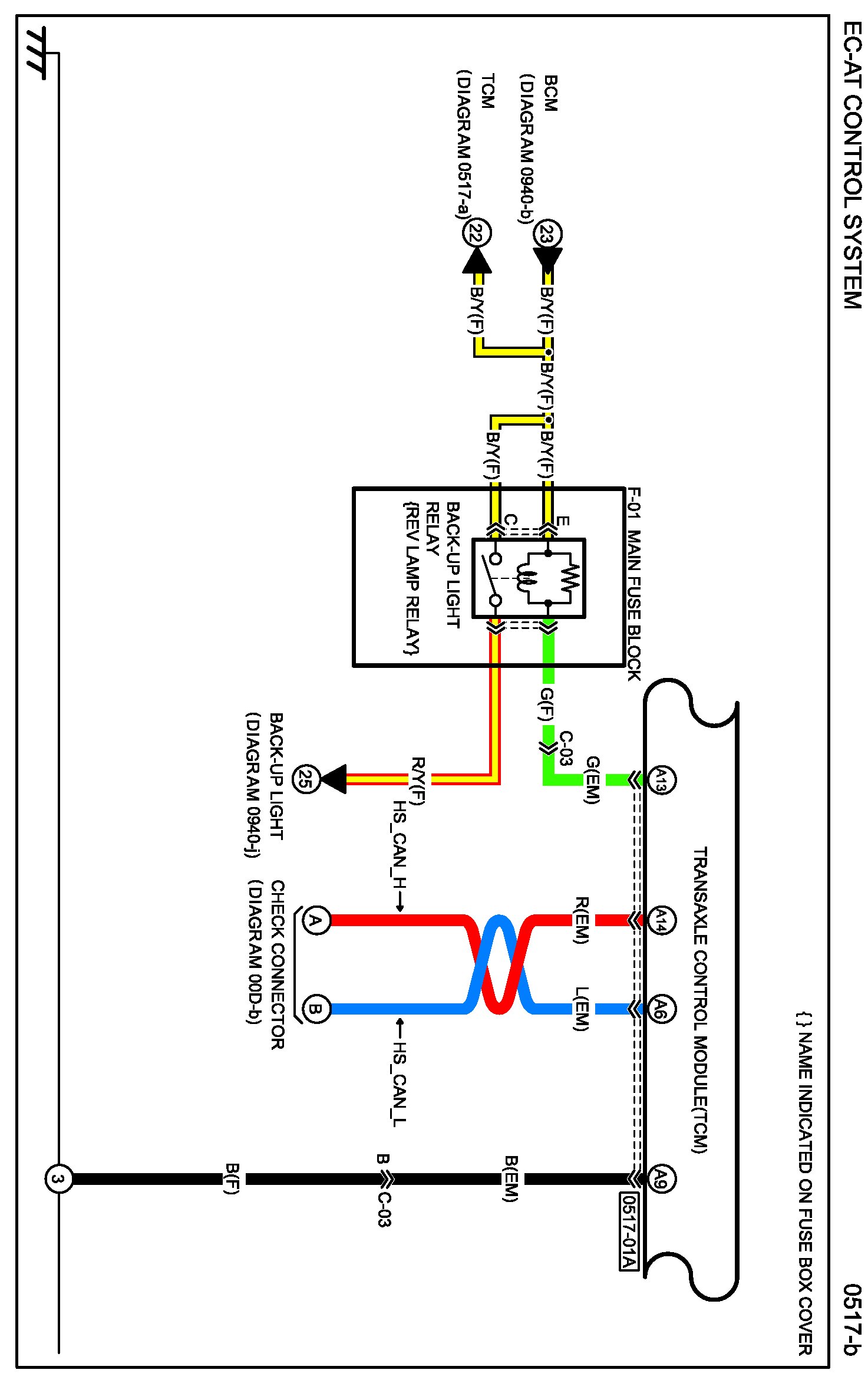

Diagram 0517-b:

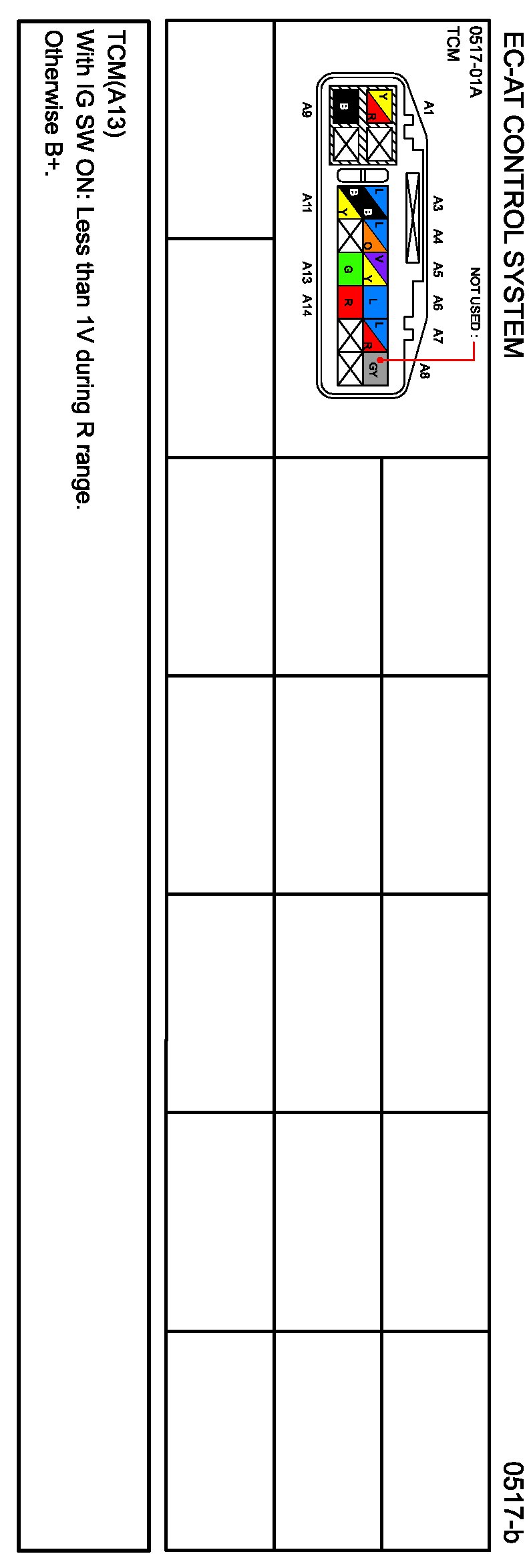

Connectors 0517-b:

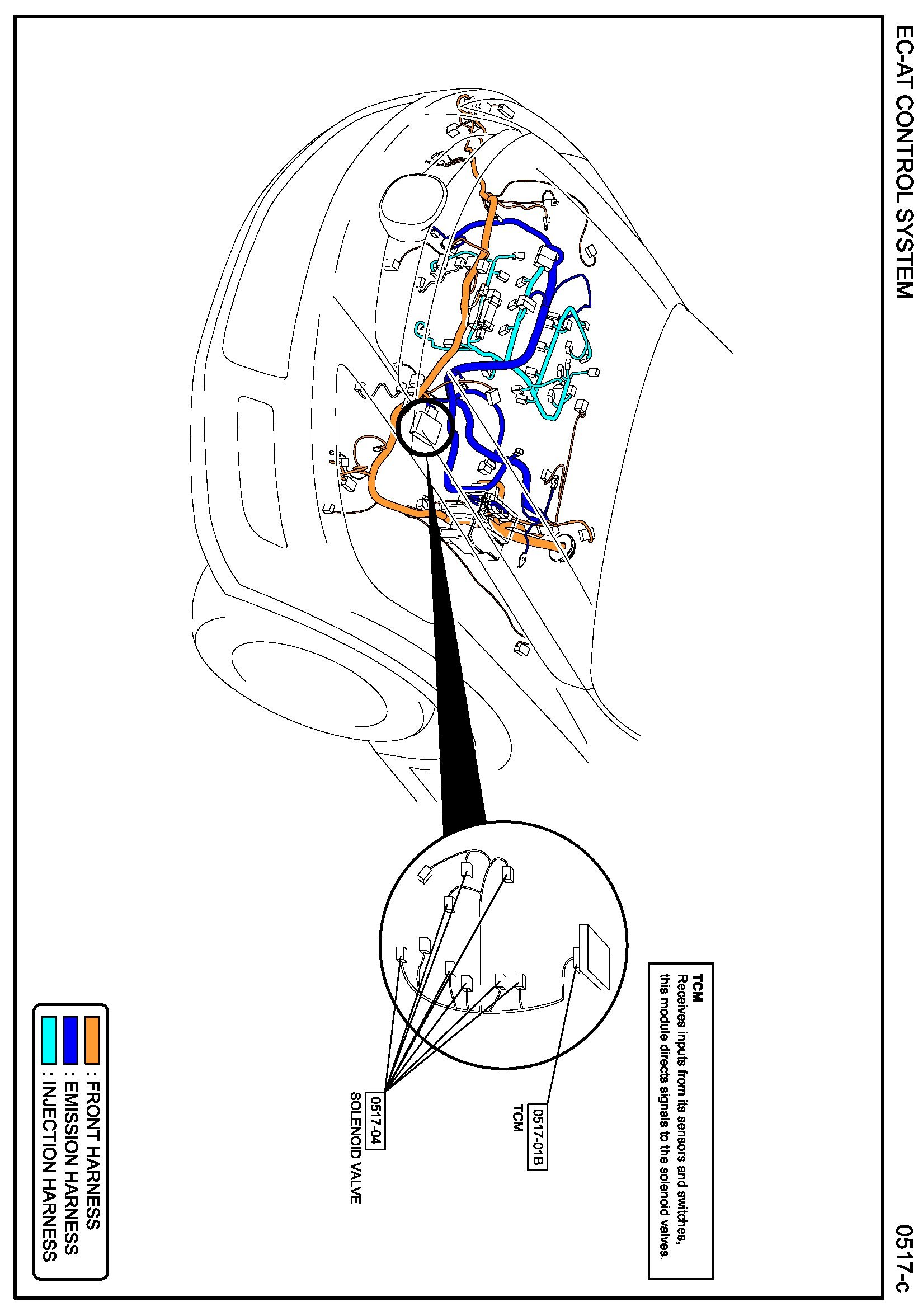

Routing View 0517-b:

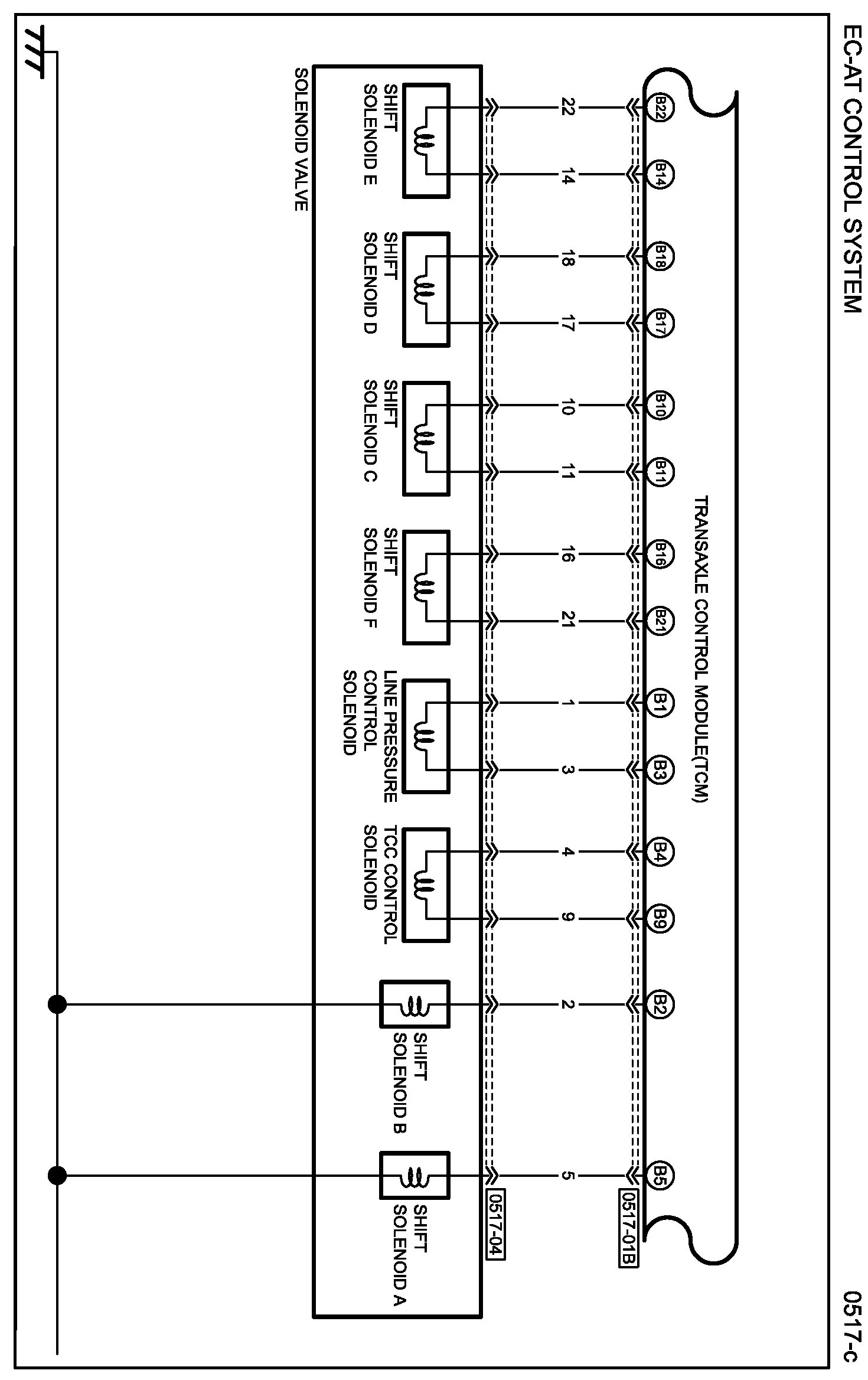

Diagram 0517-c:

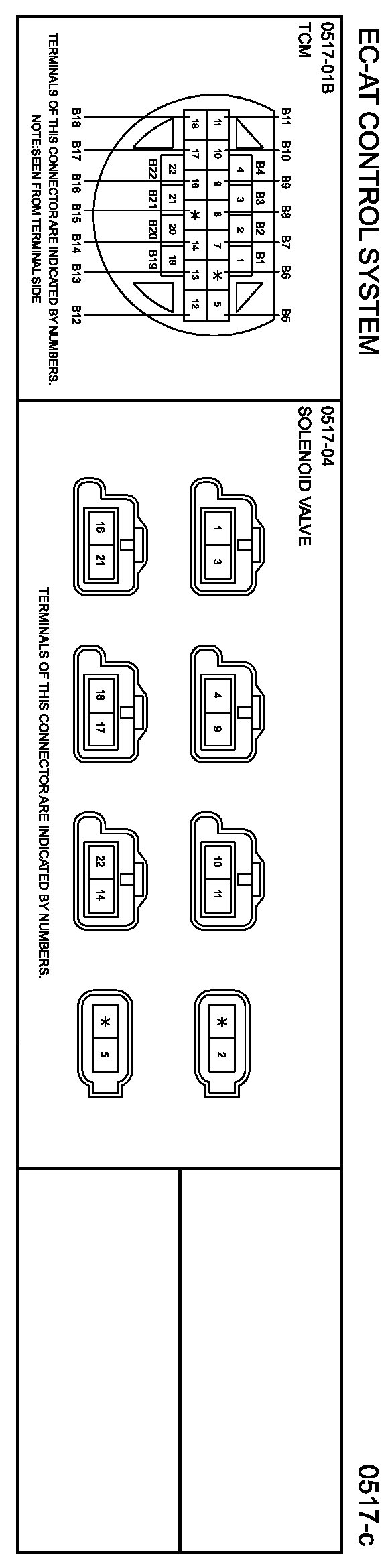

Connectors 0517-c:

Routing View 0517-c:

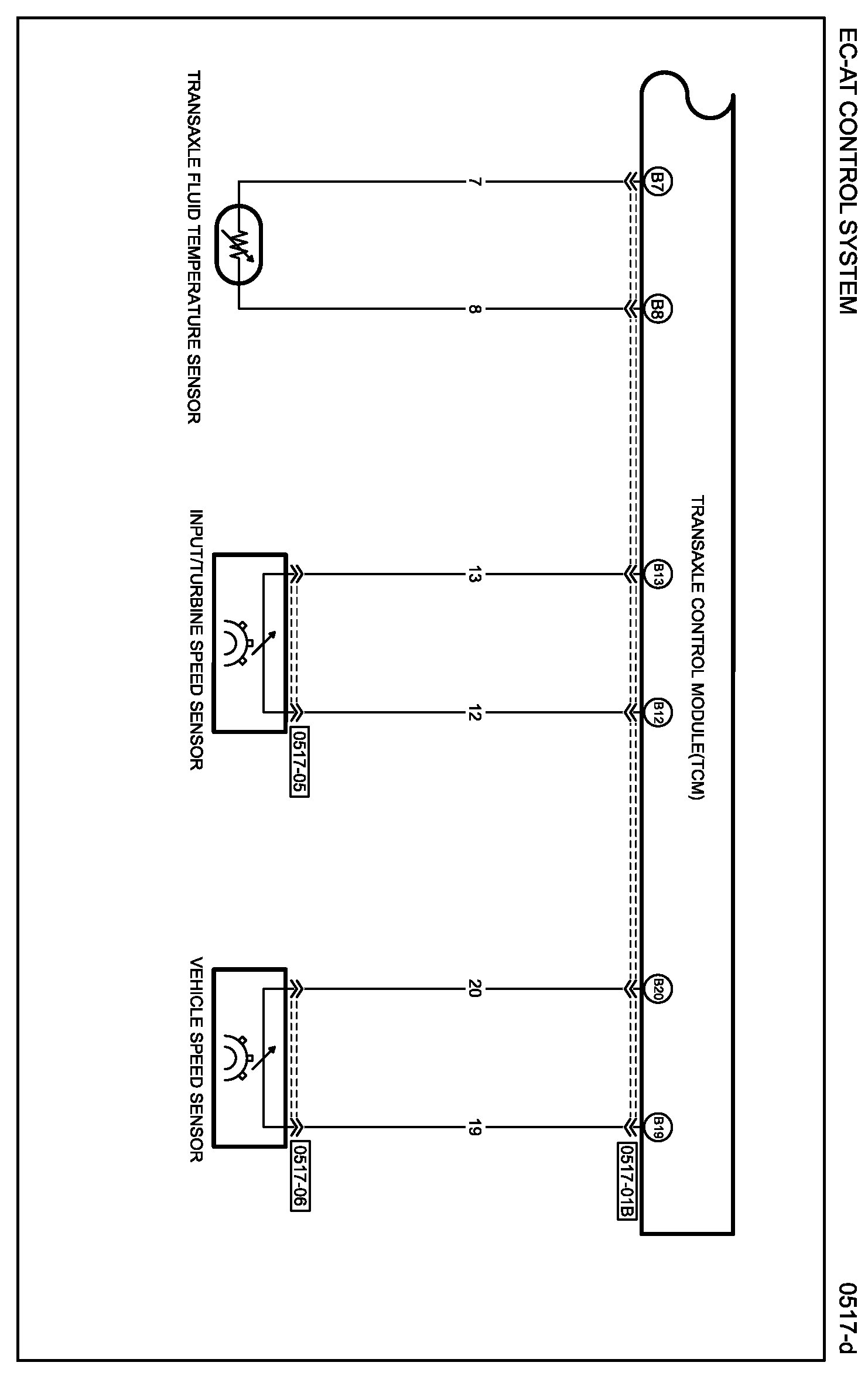

Diagram 0517-d:

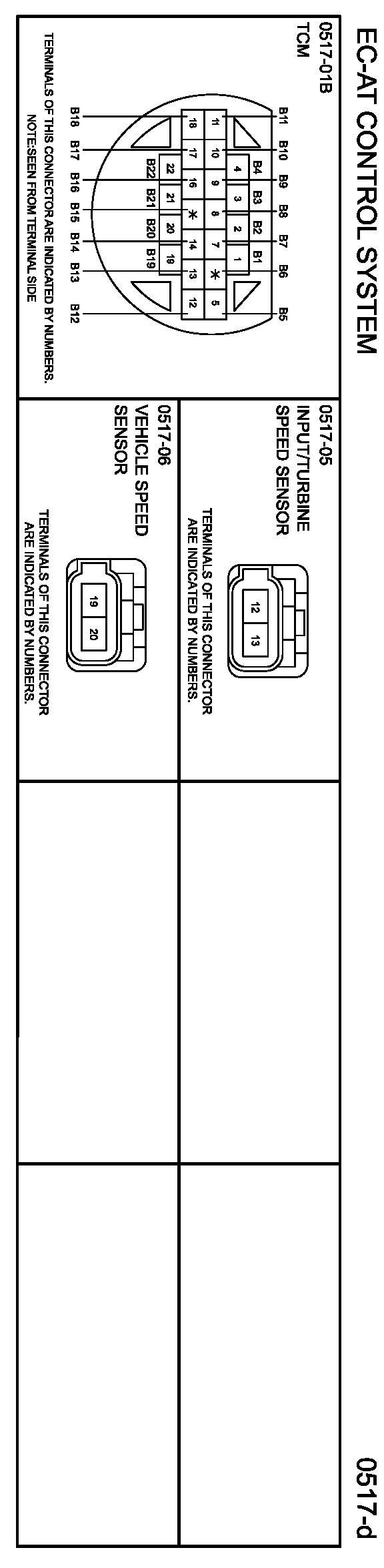

Connectors 0517-d:

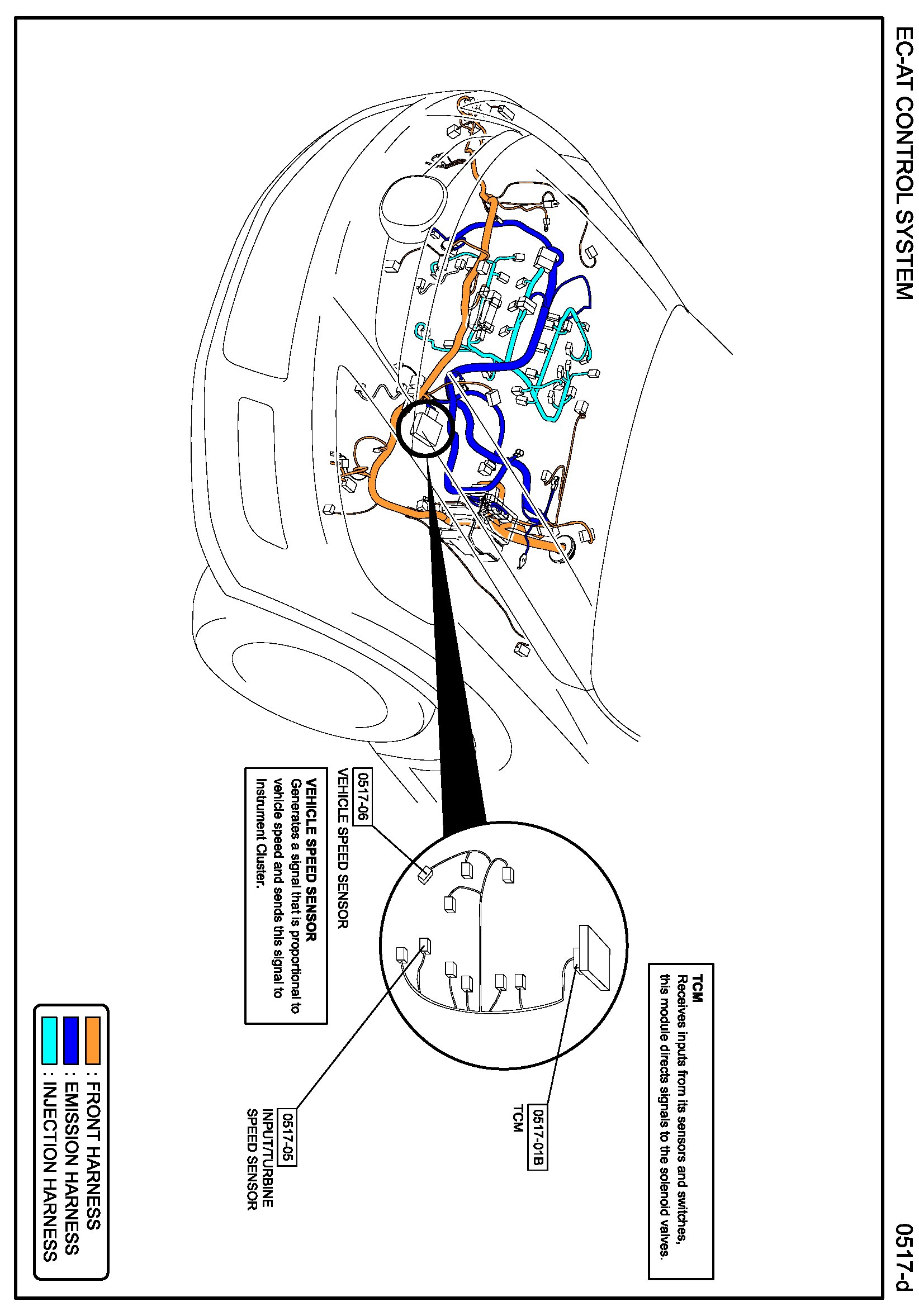

Routing View 0517-d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
