Advanced Keyless and Start System

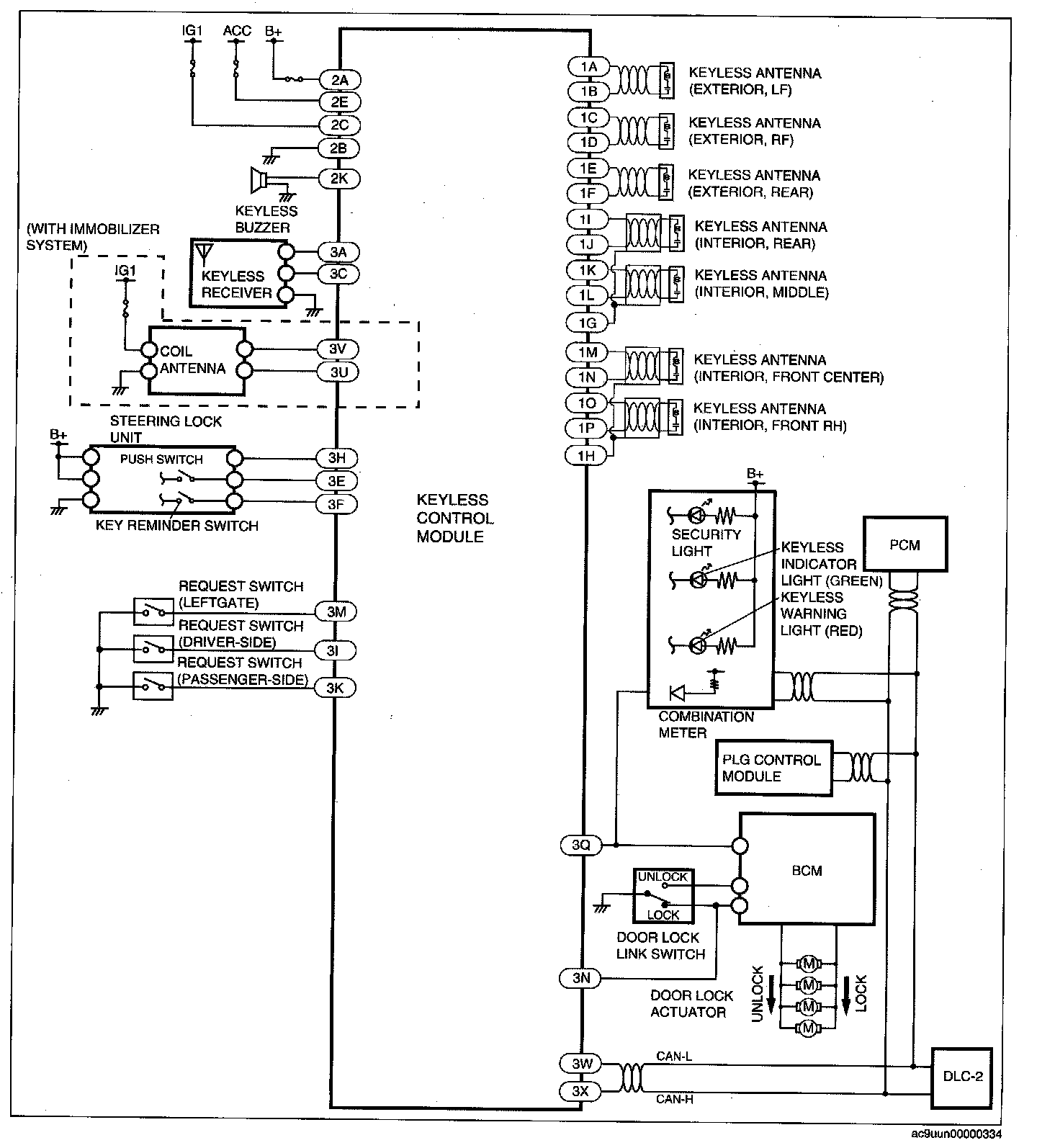

Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]:
