Heating and Air Conditioning: Locations

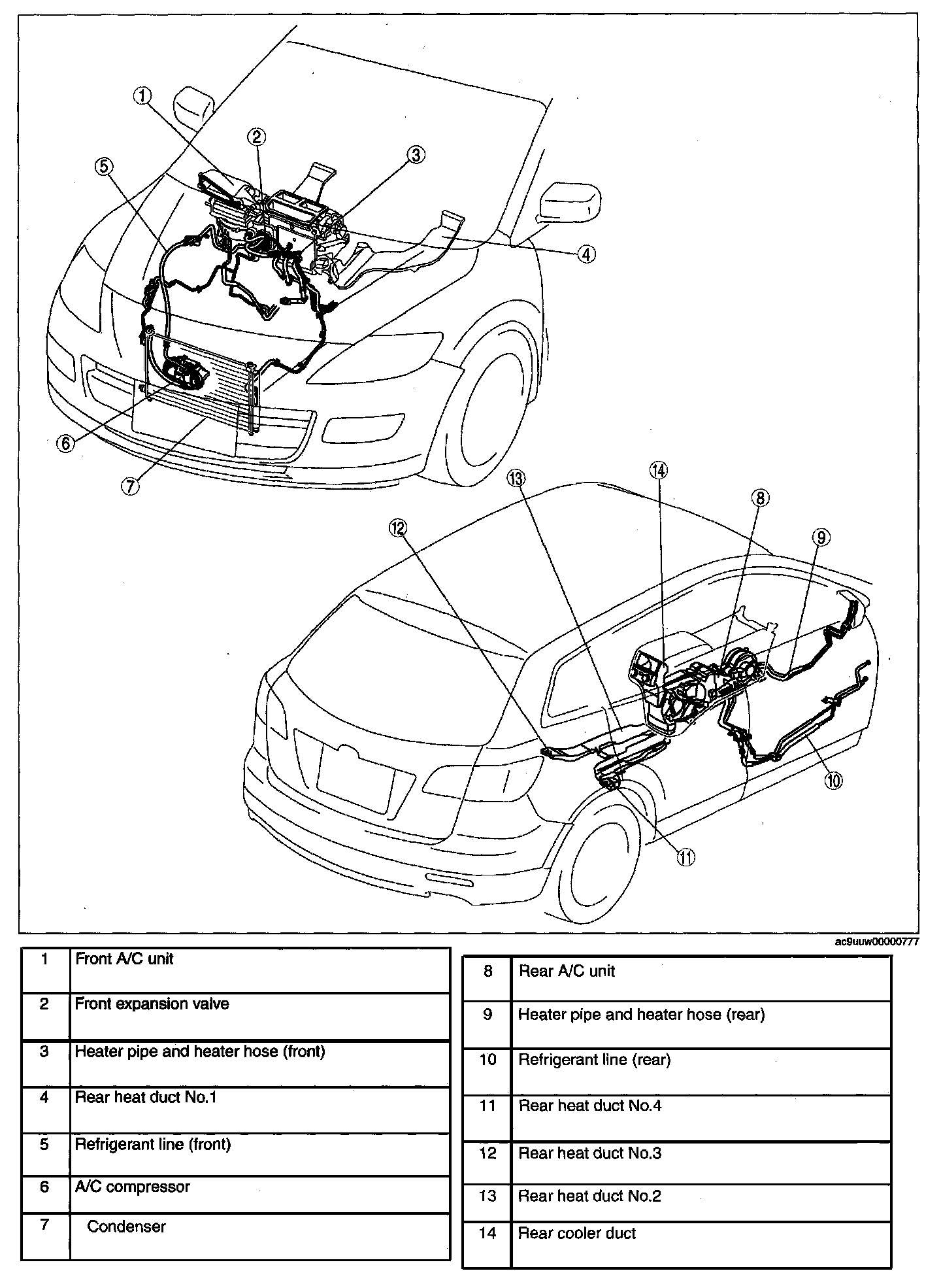

HVAC Basic System Location Index:

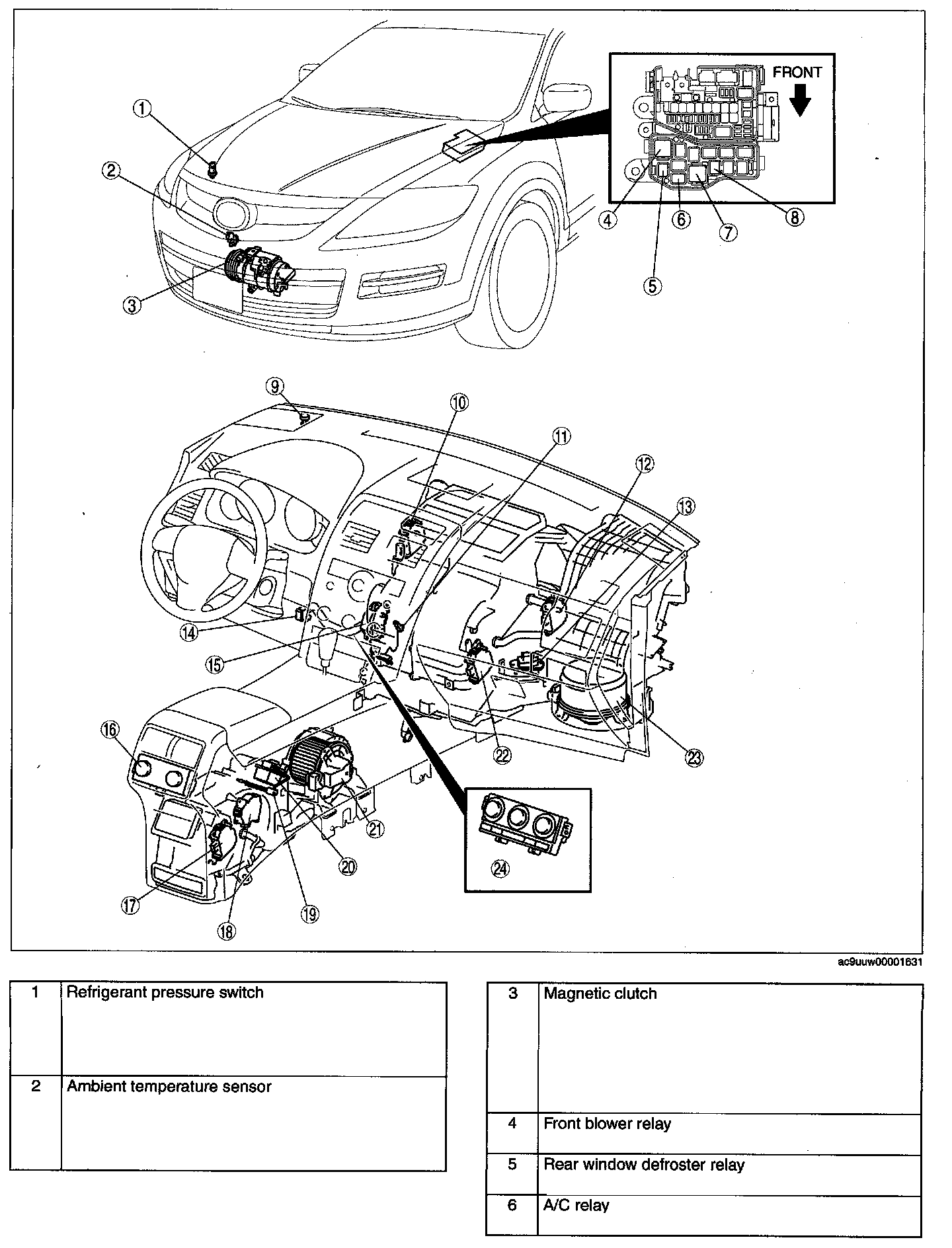

HVAC Control System Location Index (Part 1):

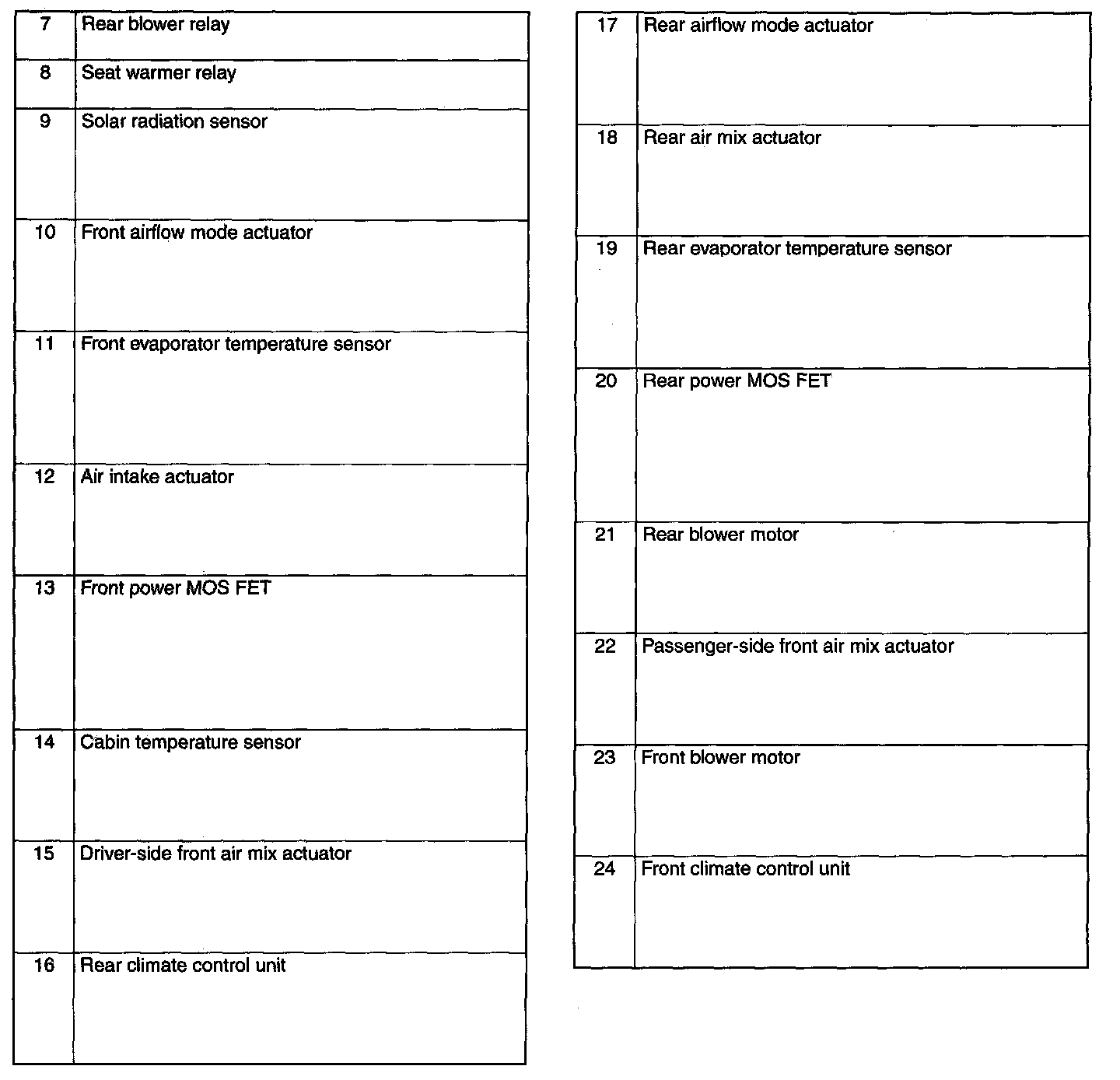

HVAC Control System Location Index (Part 2):
