Circuit Open/Short Inspection: Notes

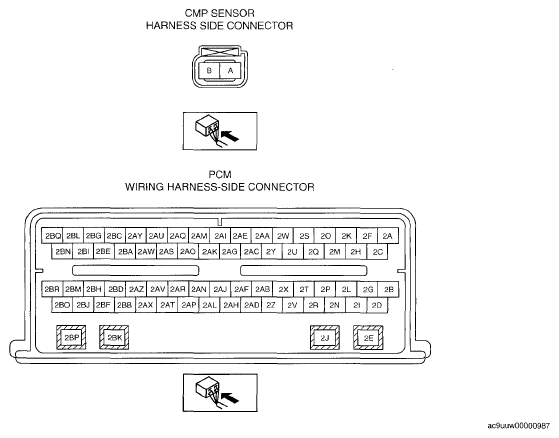

Fig 1: Identifying CMP And PCM Sensor Harness Side Connector
G05507969Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Inspect the following harness for open or short circuit. (Continuity check)
