Relay Inspection

RELAY INSPECTION




Relay Type

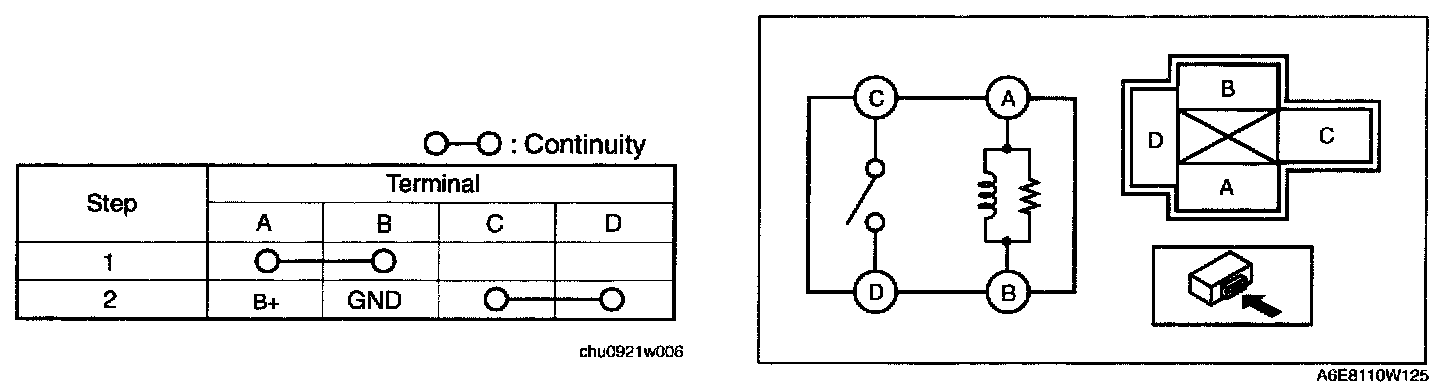

Type A




1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.

Type B




1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.
