Control Module: Service and Repair

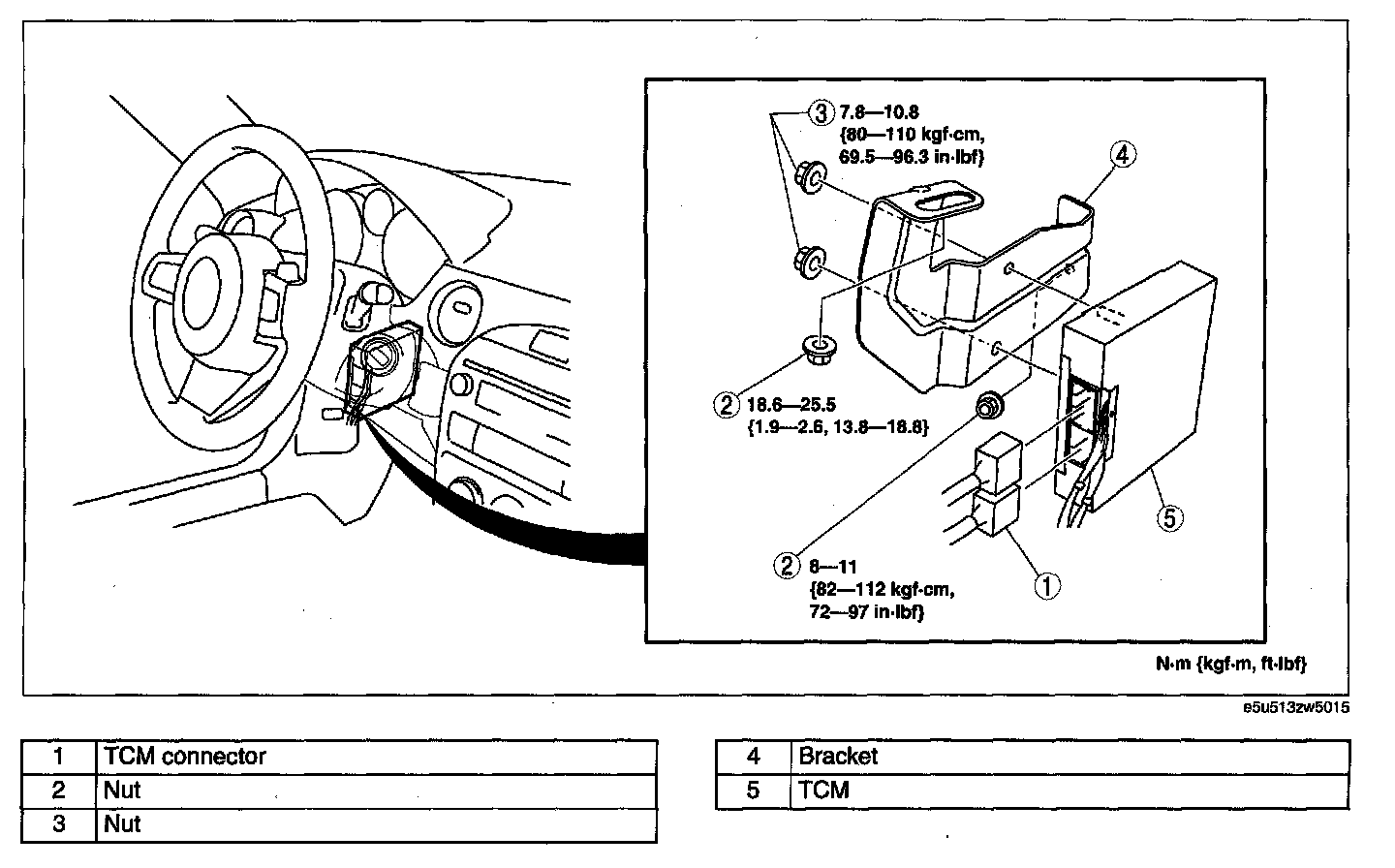

TCM REMOVAL/INSTALLATION [SJ6A-EL]

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
