Symptom Related Diagnostic Procedures

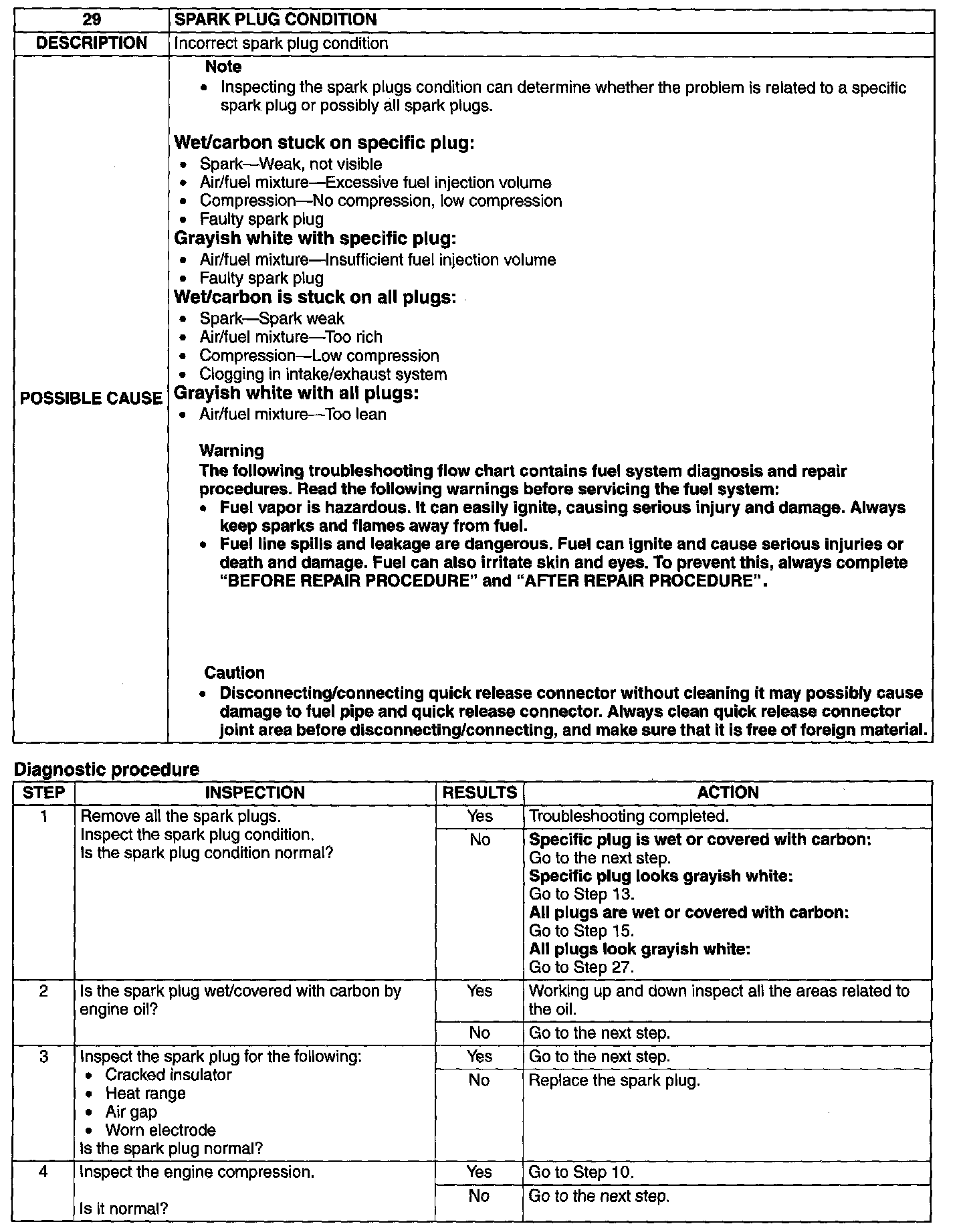

Step 1-Step 4:

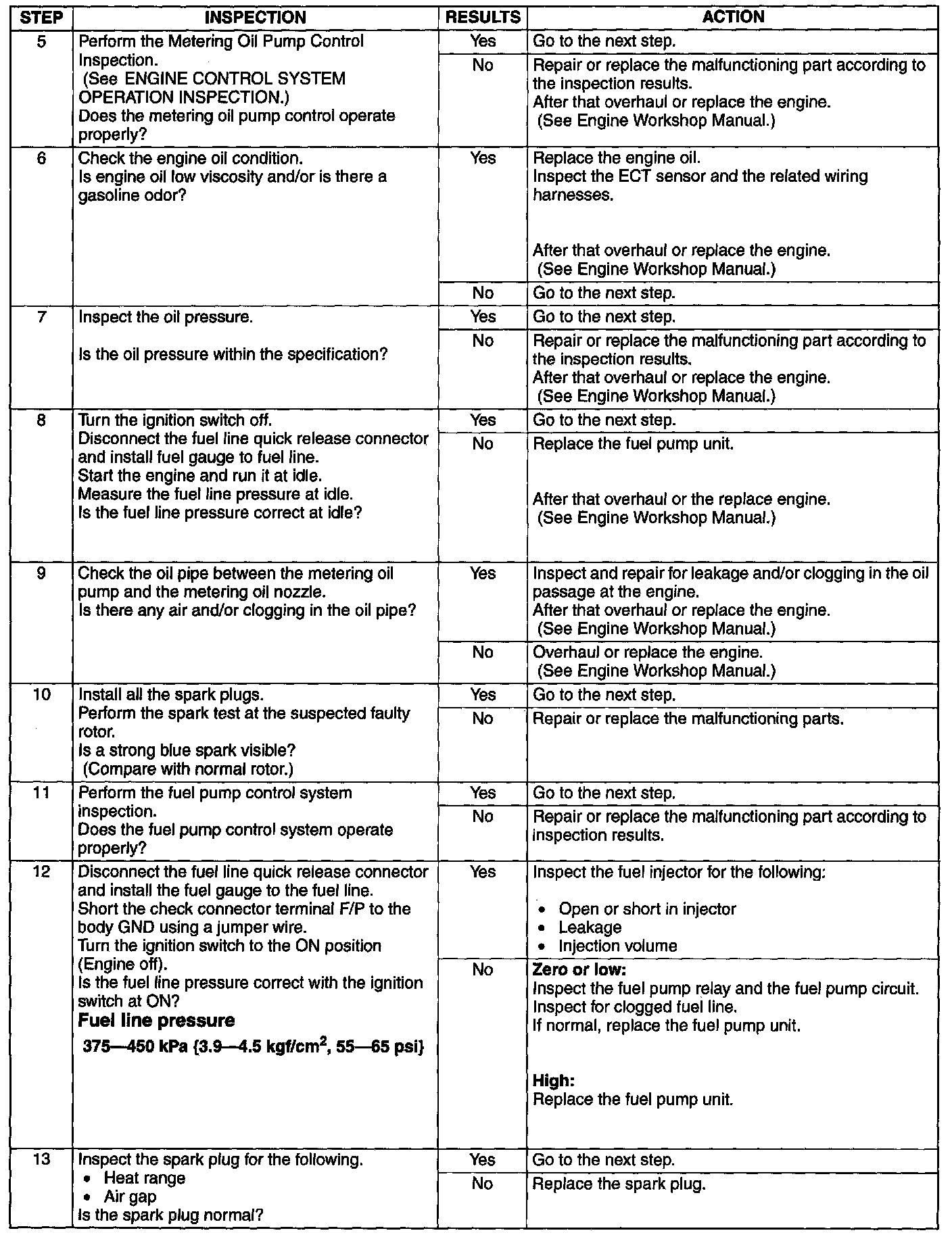

Step 5-Step 13:

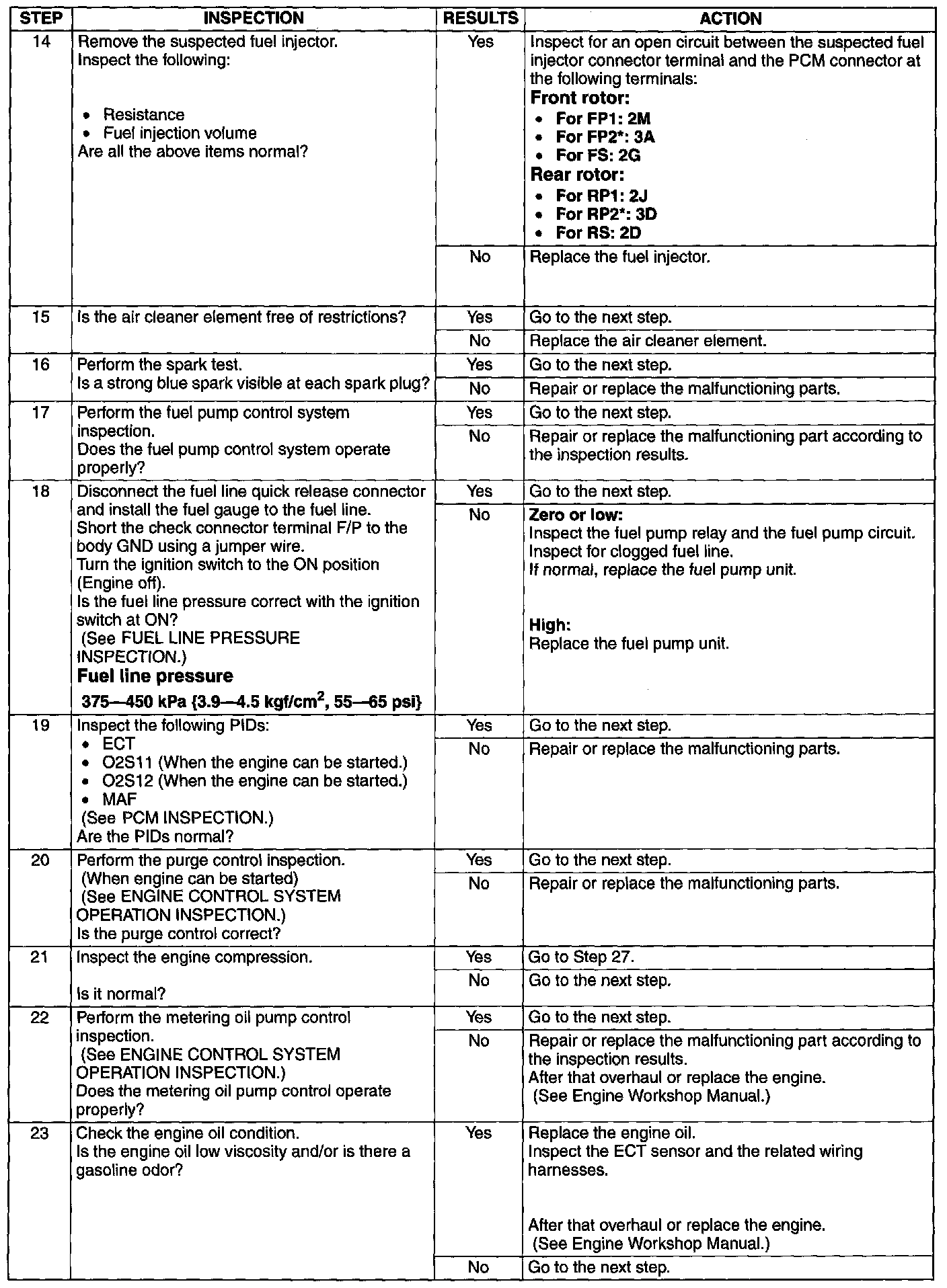

Step 14-Step 23:

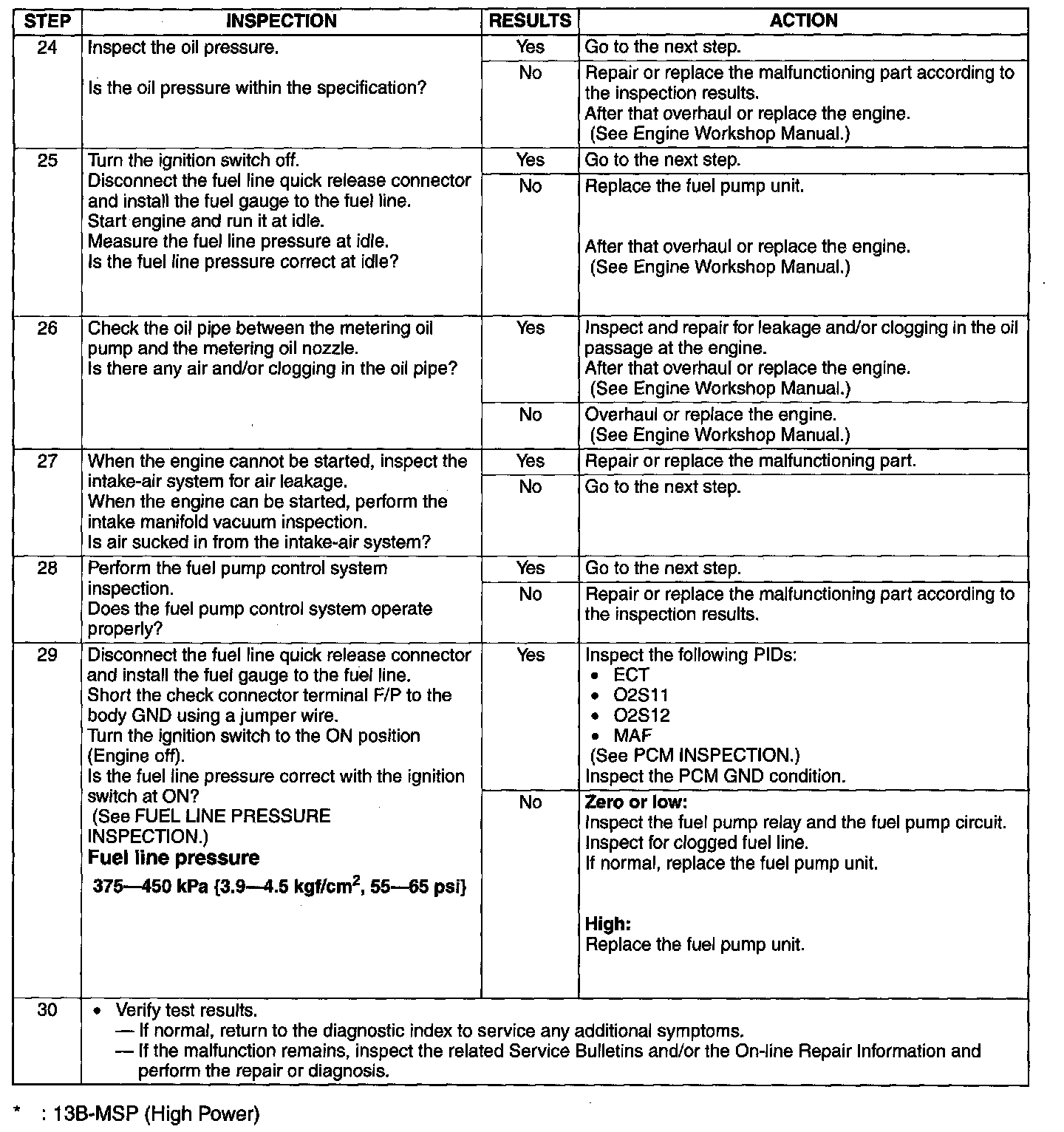

Step 24-Step 30:
