Front Disc Brake System - Exploded View



-

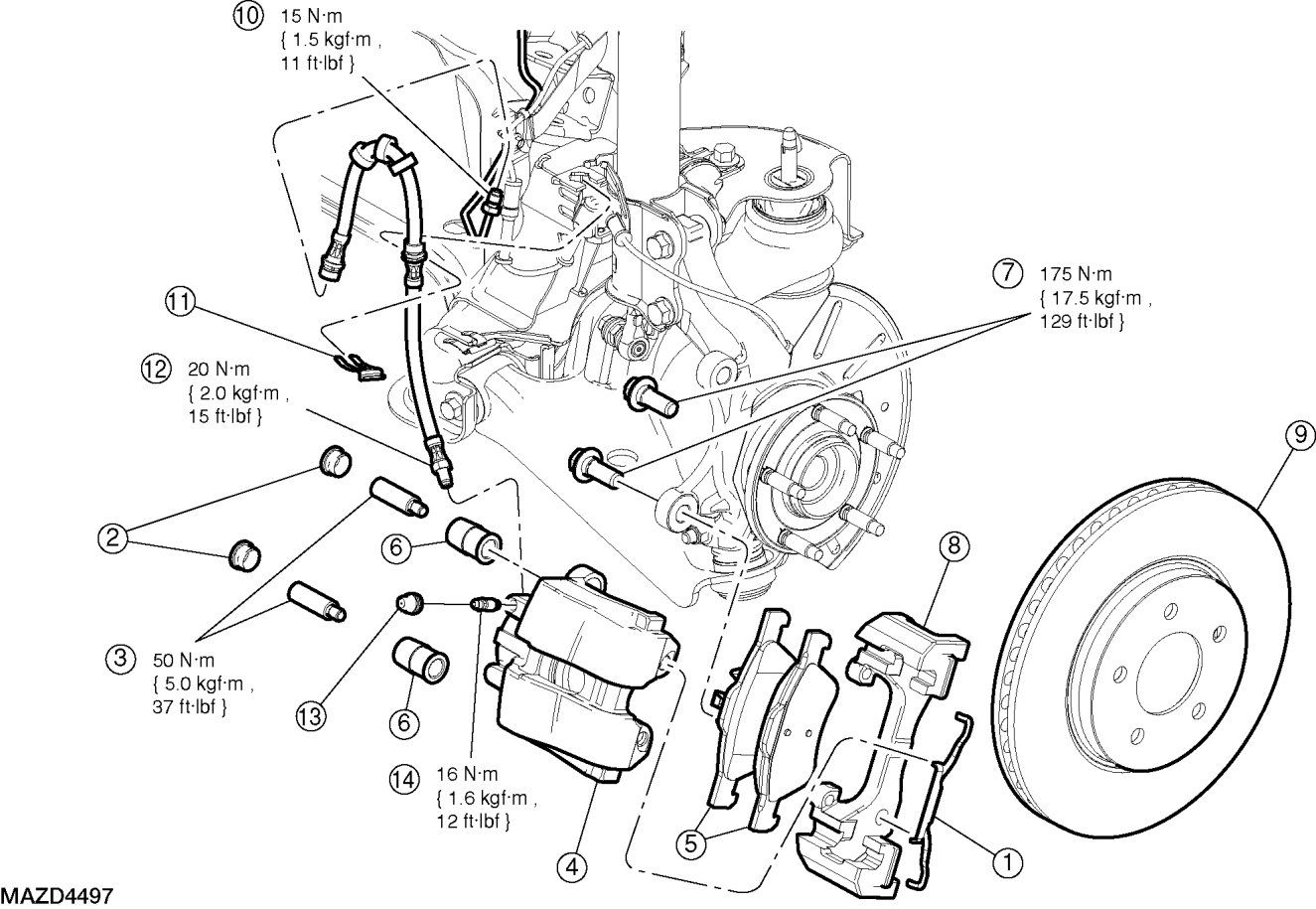

FRONT DISC BRAKE SYSTEM - EXPLODED VIEW










1. For additional information, see the procedures.
