Crankshaft Position Sensor: Testing and Inspection
CRANKSHAFT POSITION (CKP) SENSOR MALFUNCTION

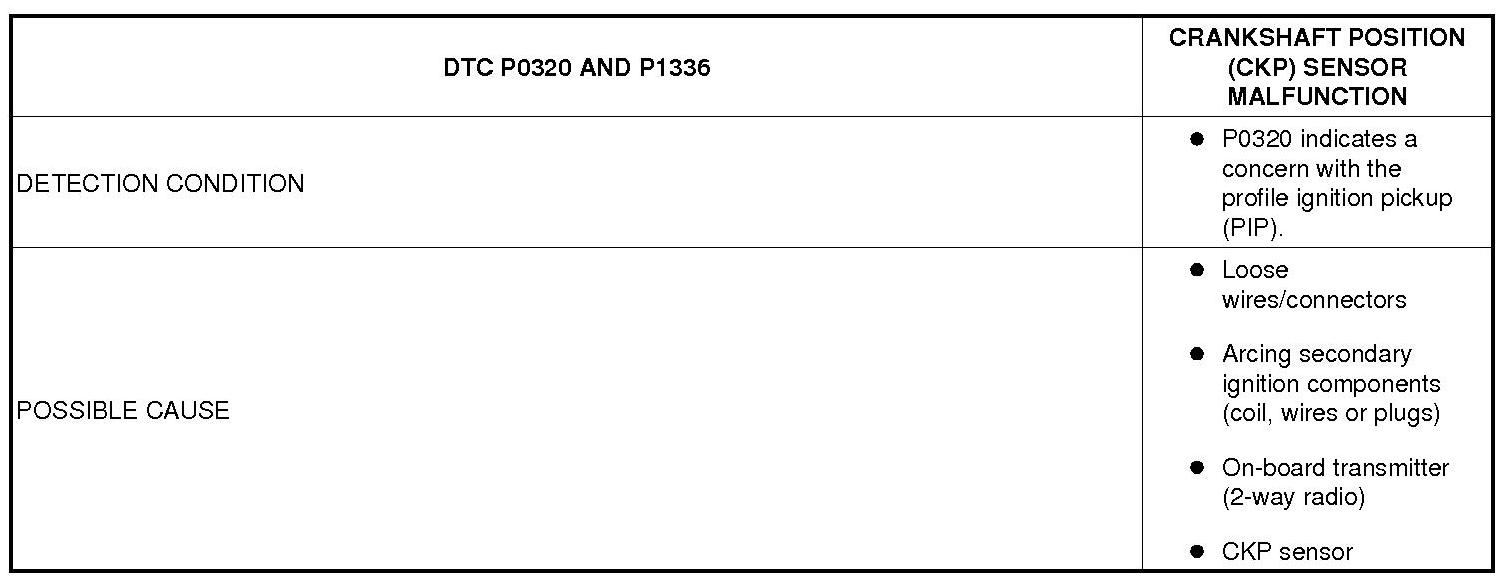

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):

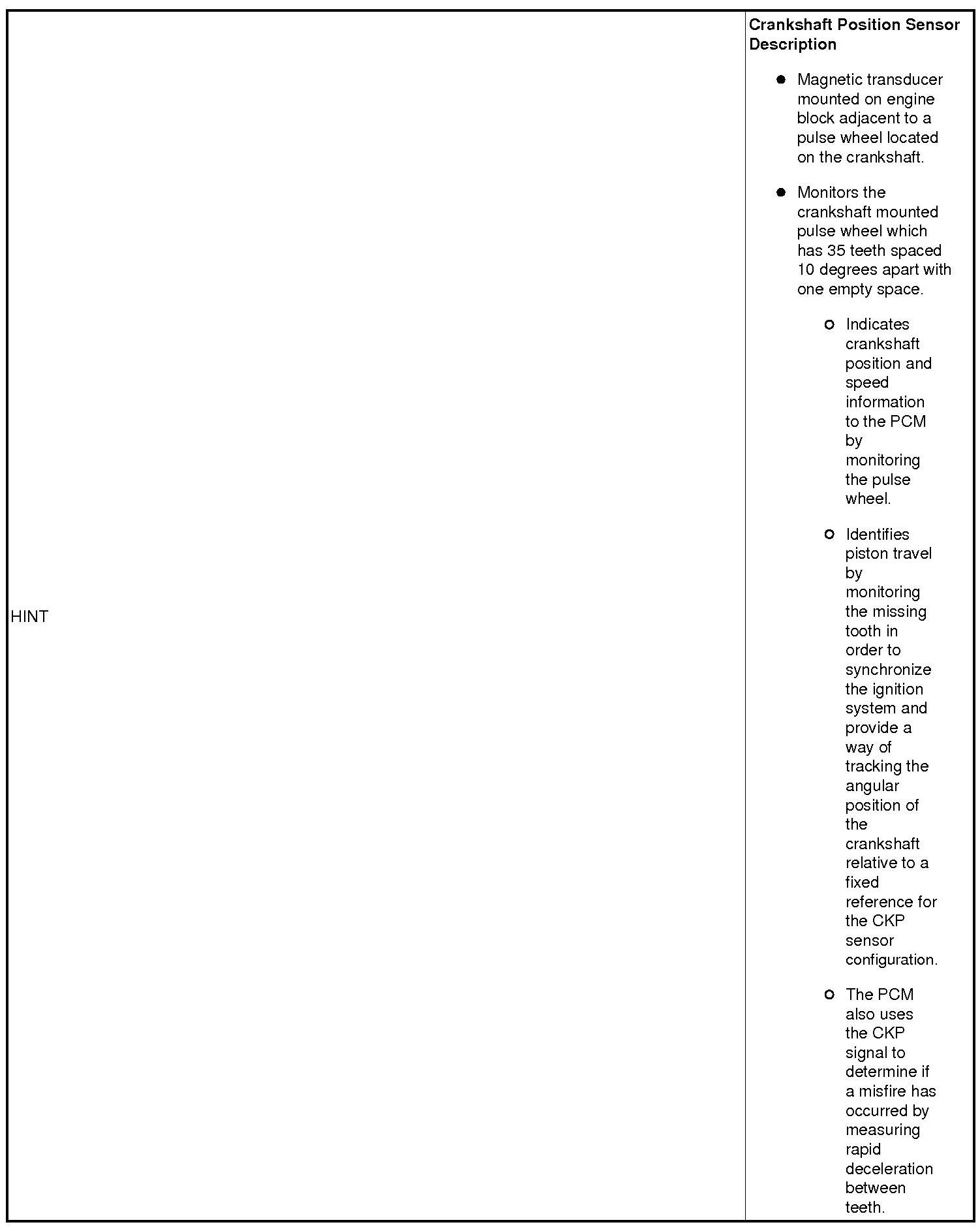

Detection Condition/Possible Cause (Part 3):

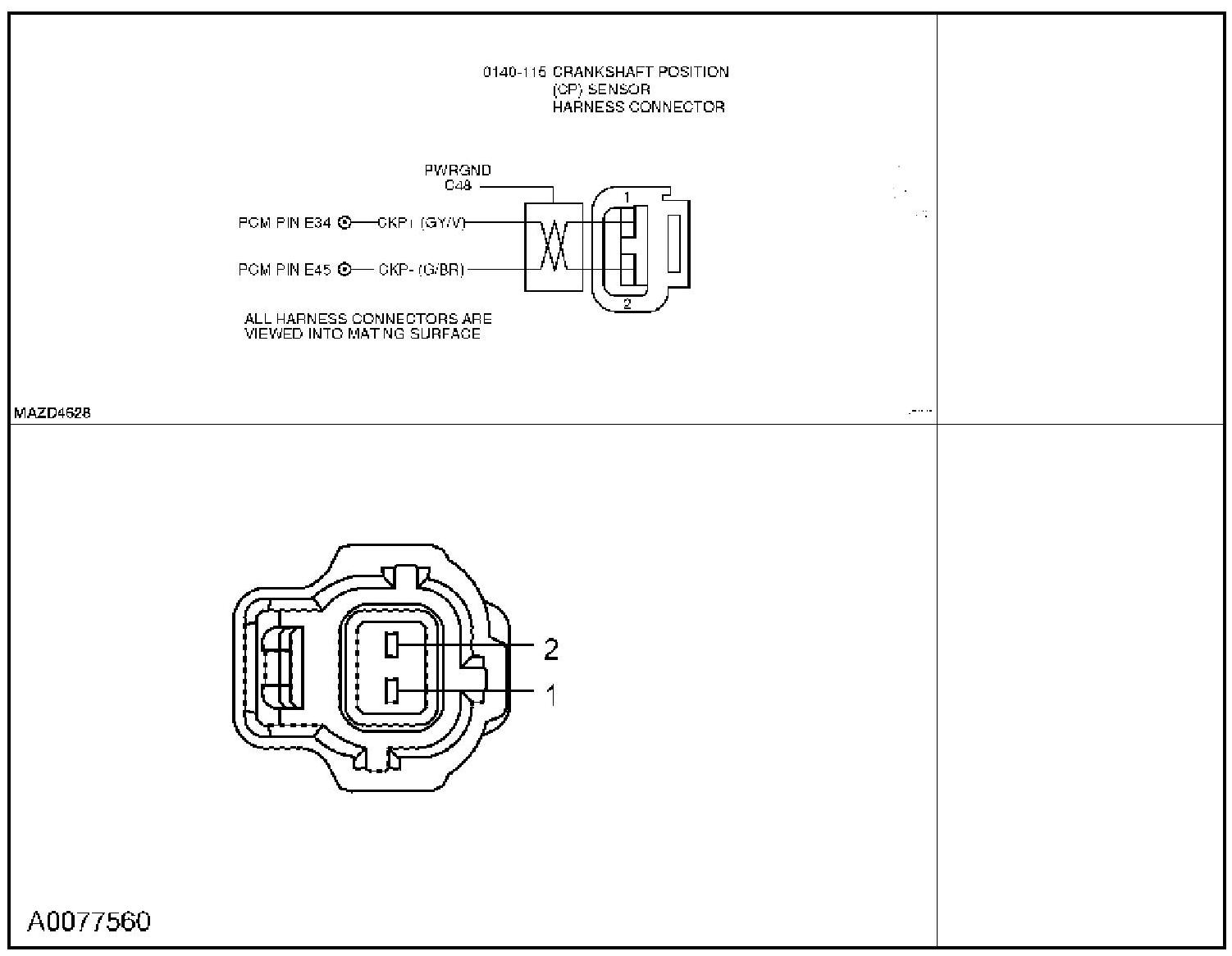

For PCM connector views or reference values, see Tribute wiring diagram.

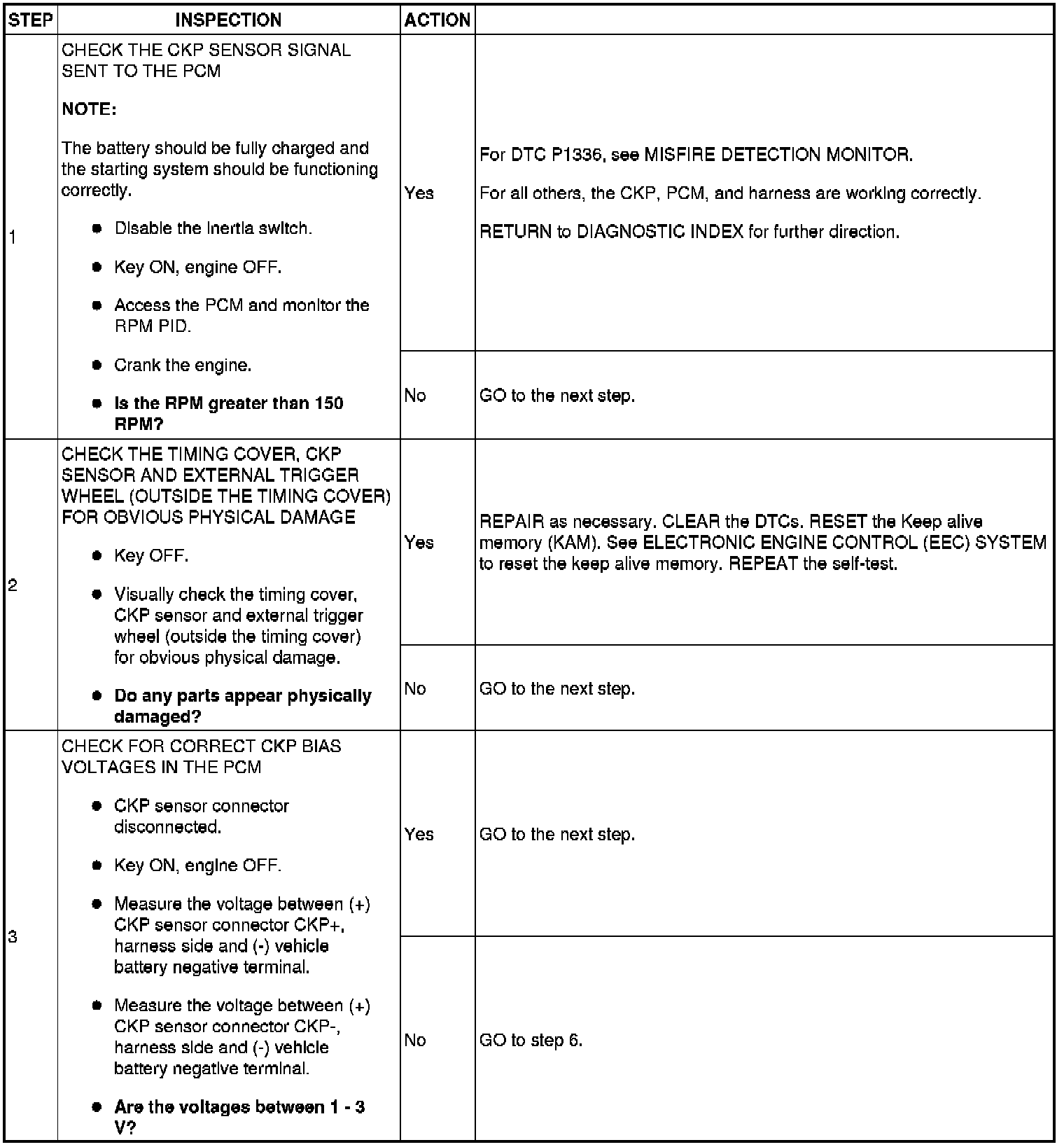

Step 1-Step 3:

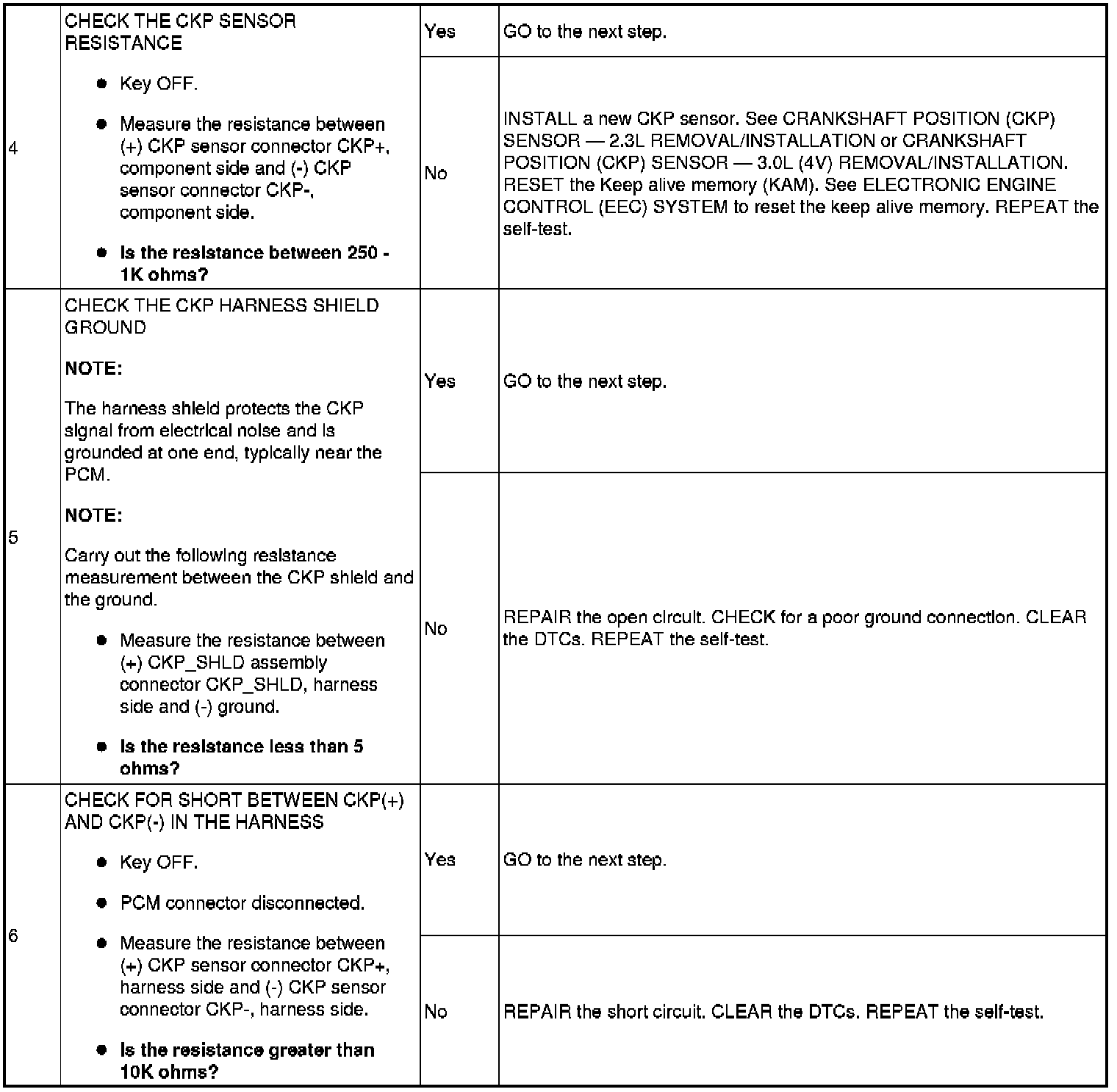

Step 4-Step 6:

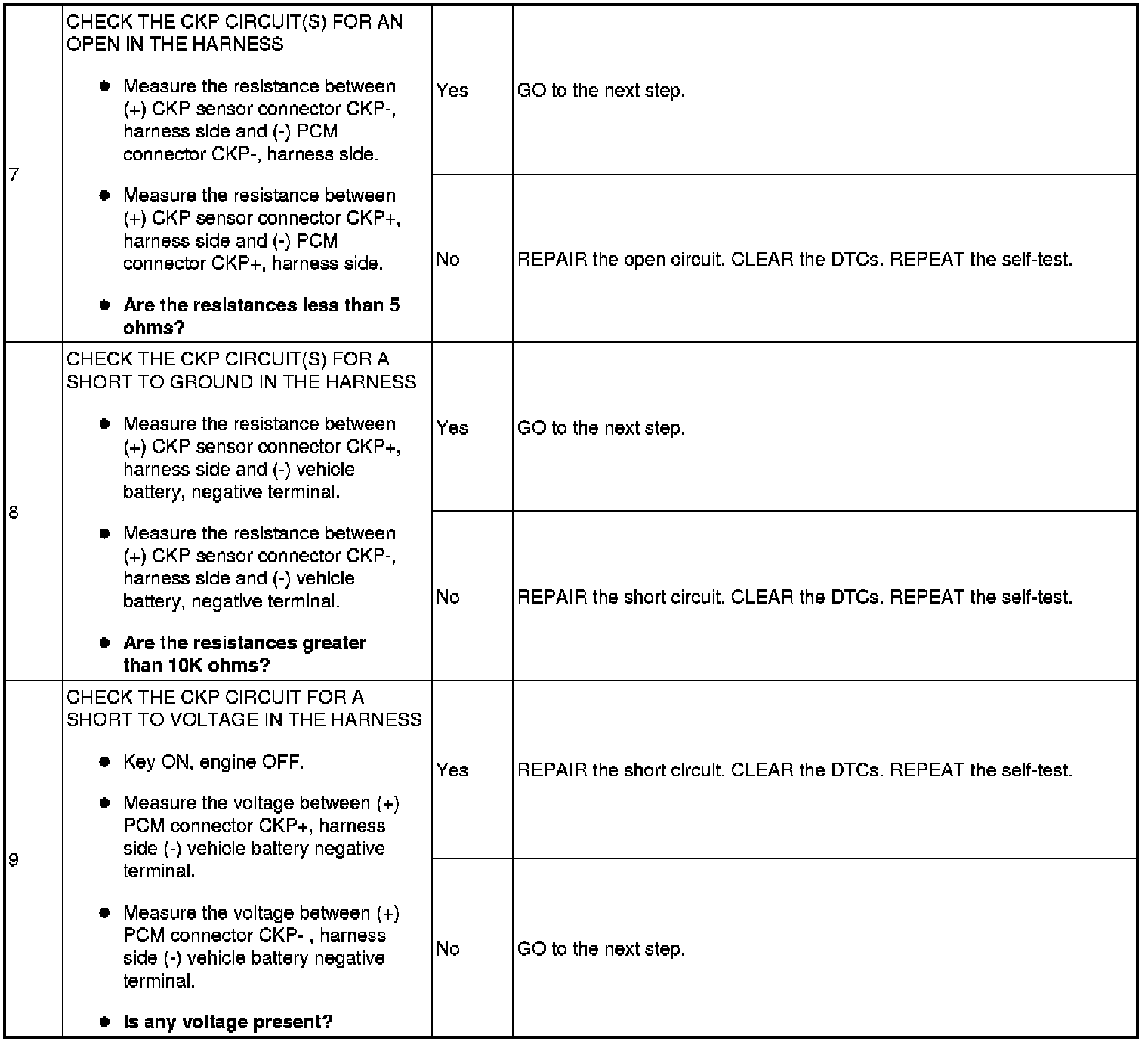

Step 7-Step 9:
