Engine Temperature Sensor: Testing and Inspection

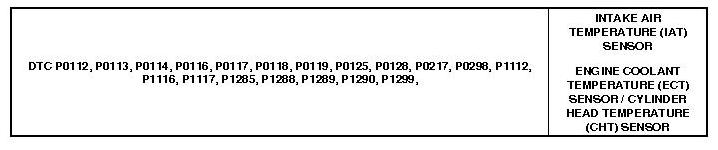

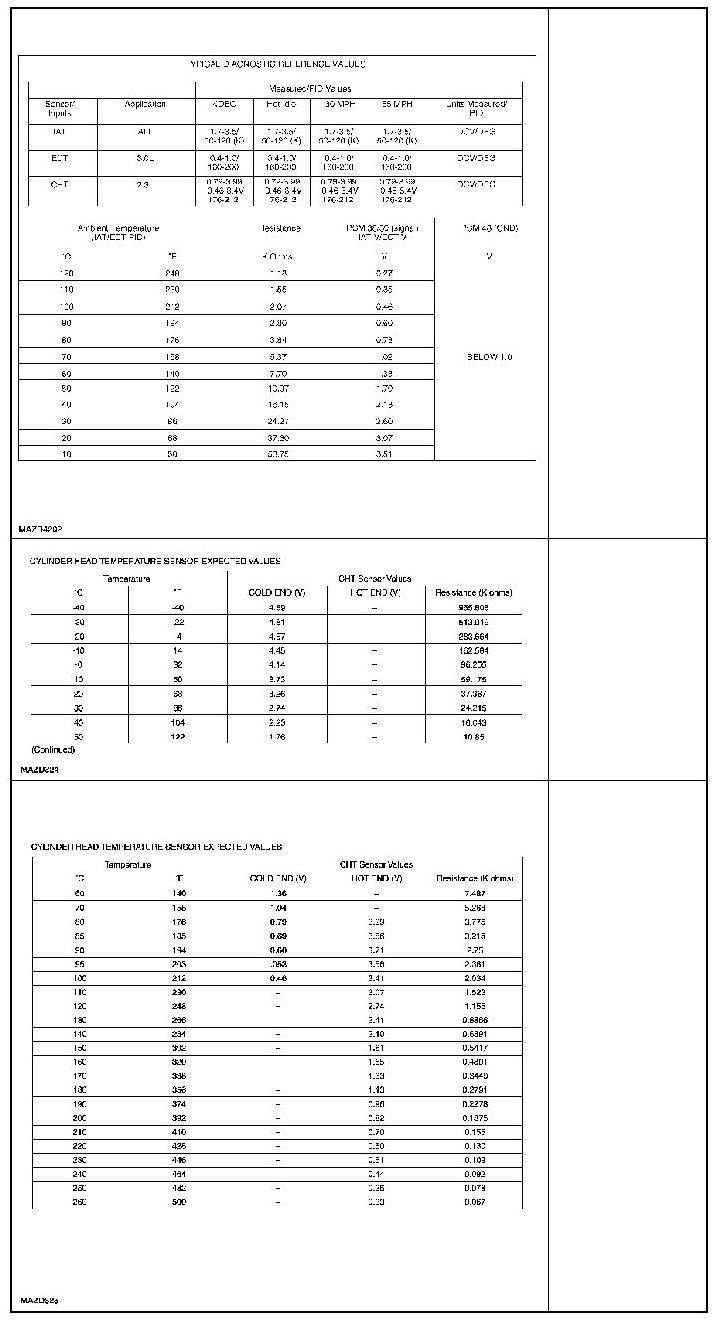

INTAKE AIR TEMPERATURE (IAT) SENSOR AND ENGINE COOLANT TEMPERATURE (ECT) SENSOR / CYLINDER HEAD TEMPERATURE (CHT) SENSOR

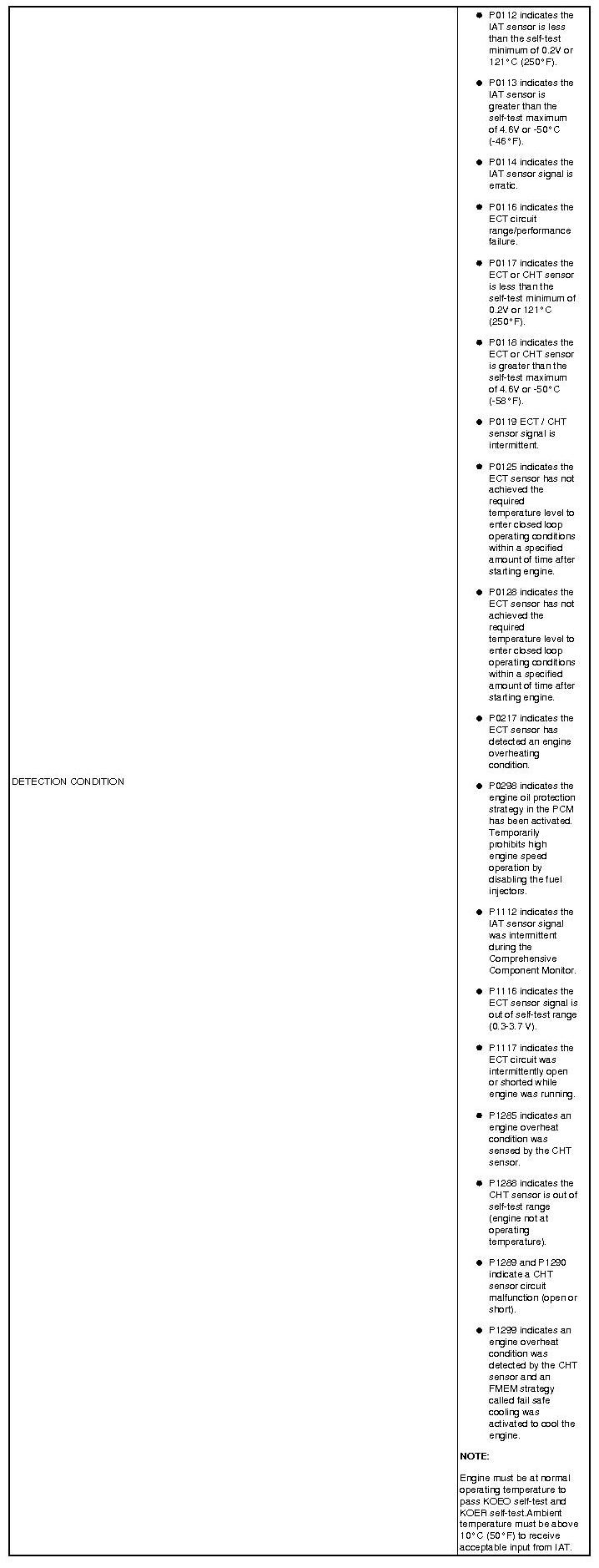

Detection Condition:

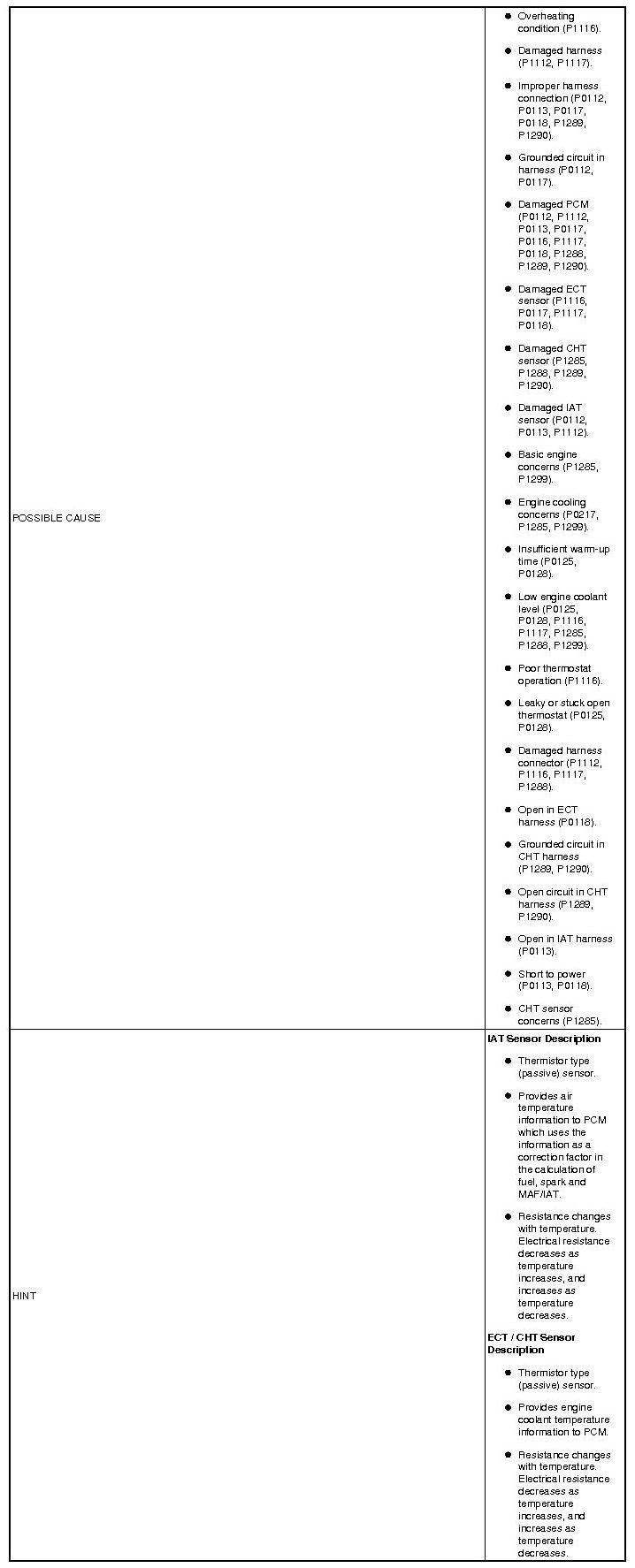

Possible Cause (Part 1):





Possible Cause (Part 2):





Possible Cause (Part 3):






Step 1-Step 2:

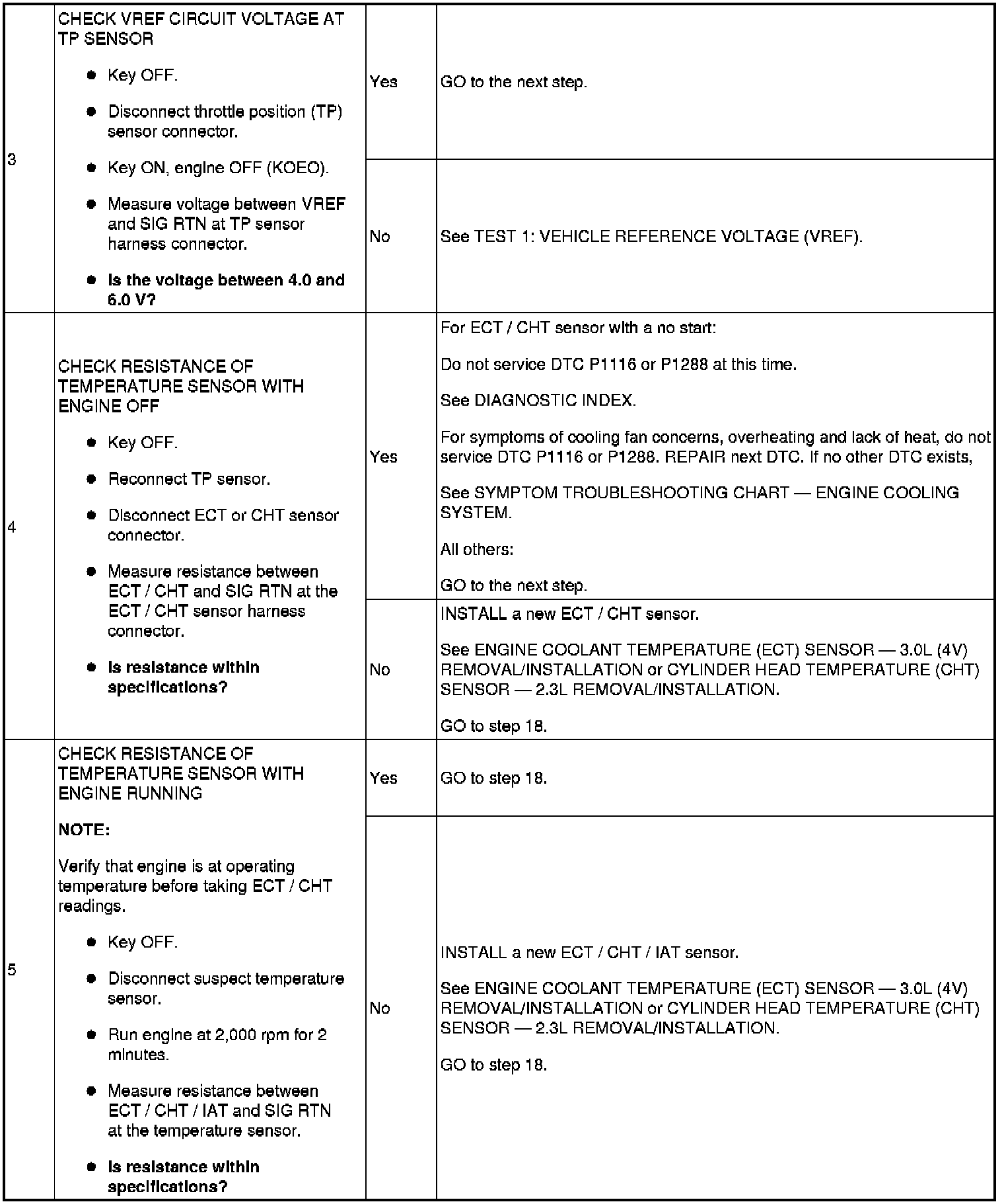

Step 3-Step 5:

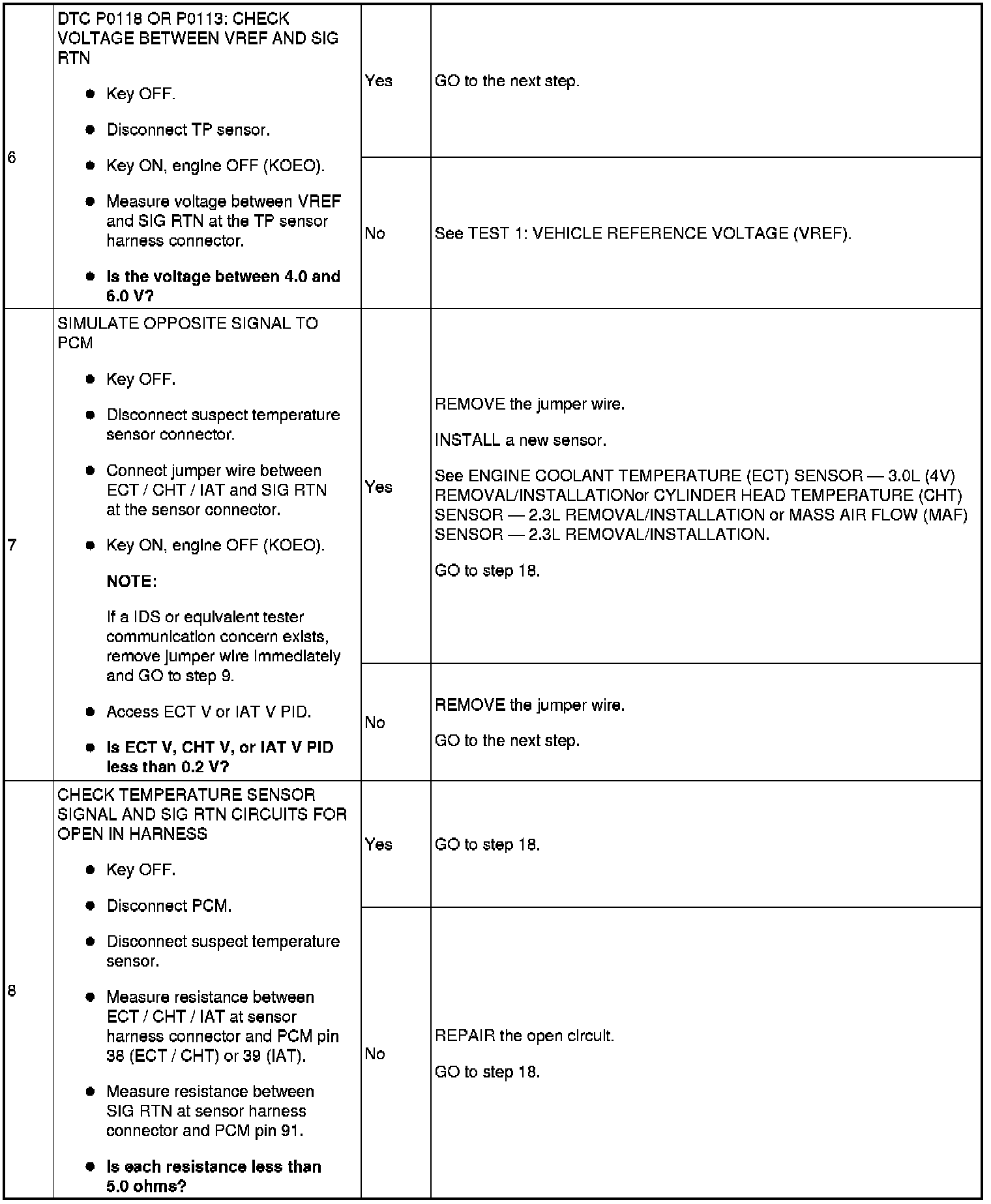

Step 6-Step 8:

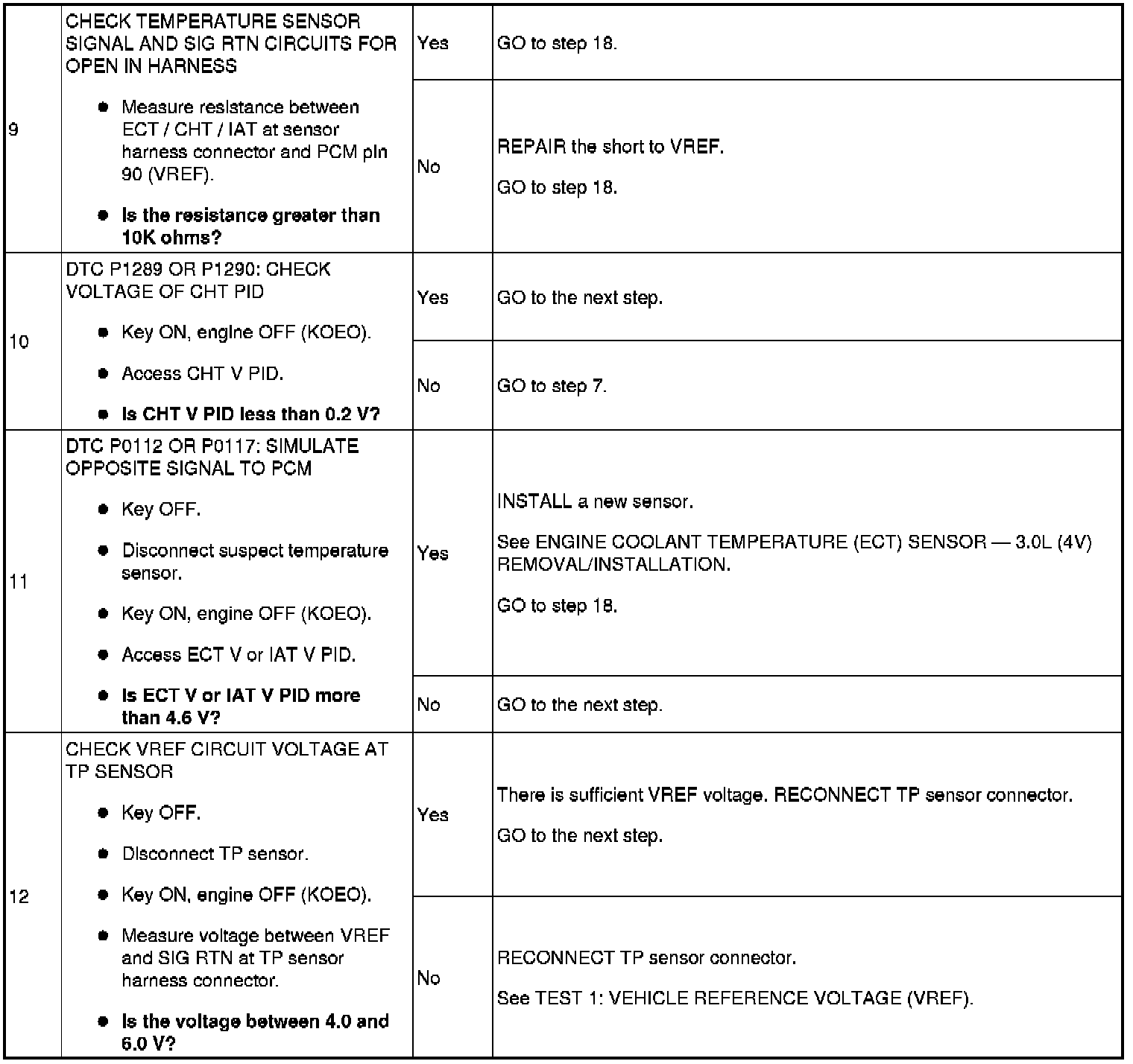

Step 9-Step 12:

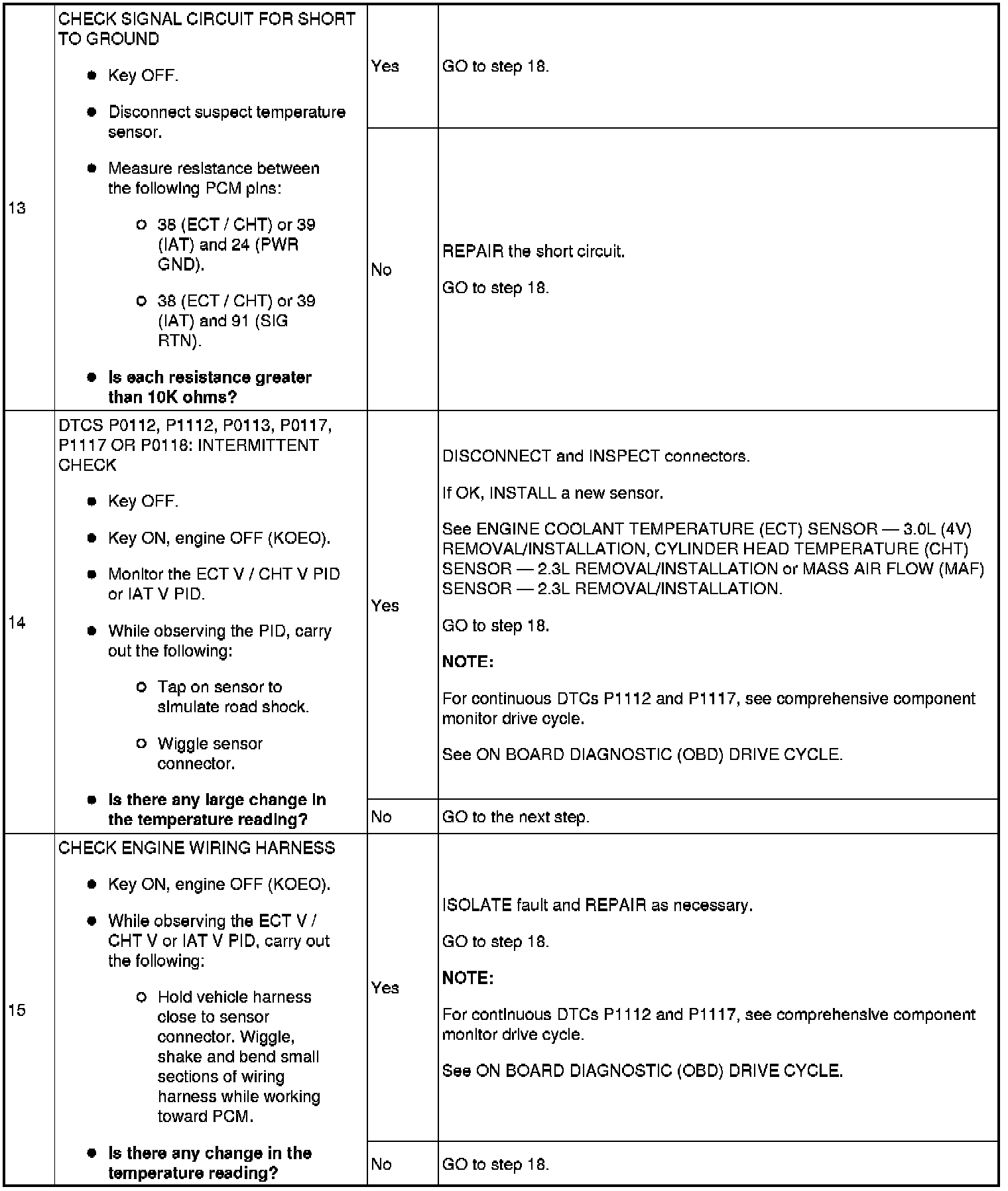

Step 13-Step 15:

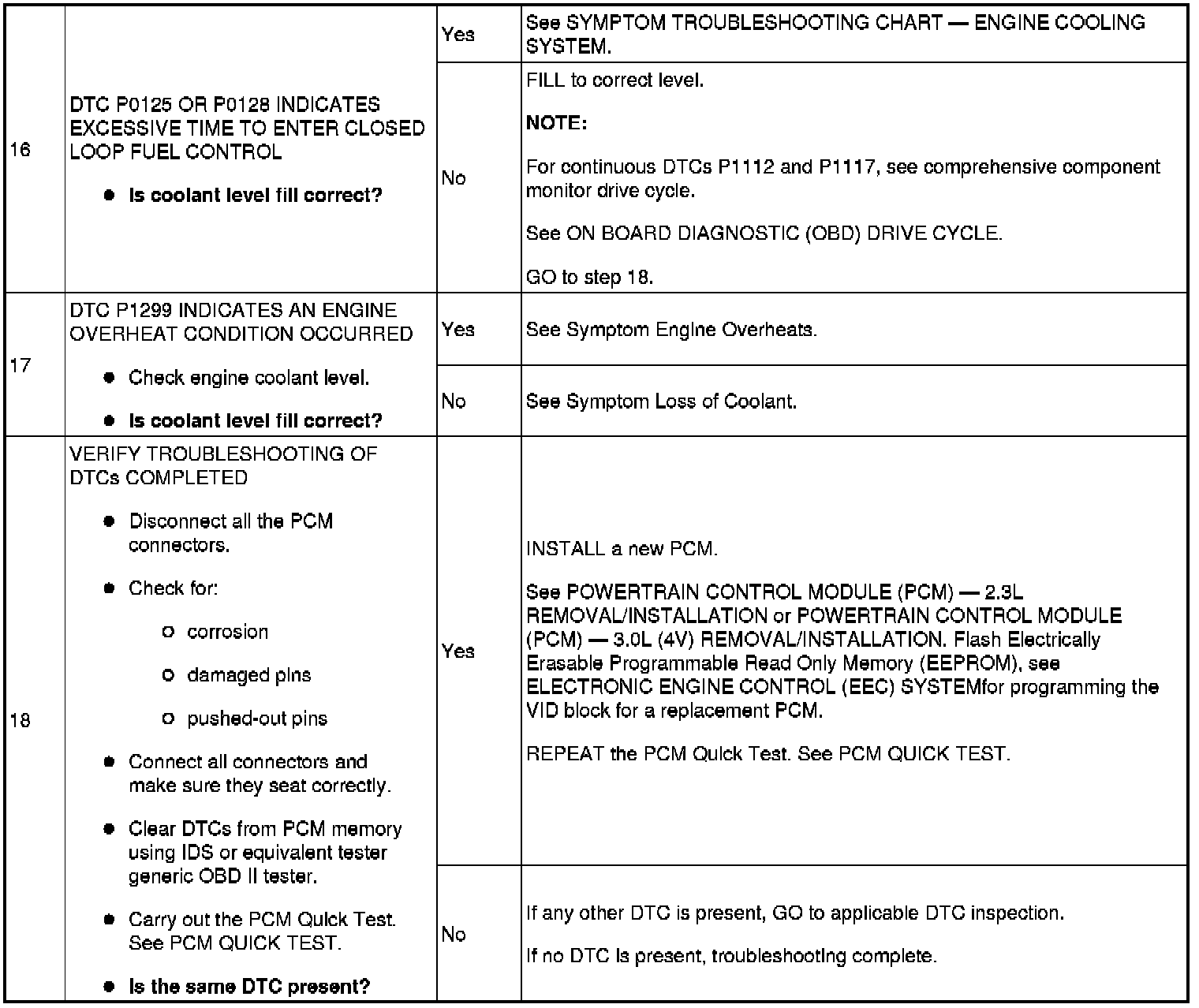

Step 16-Step 18:
