Test 15: Ignition Scope Engine Performance

TEST 15: IGNITION SCOPE TEST

CAUTION: Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.2.3L





3.0L

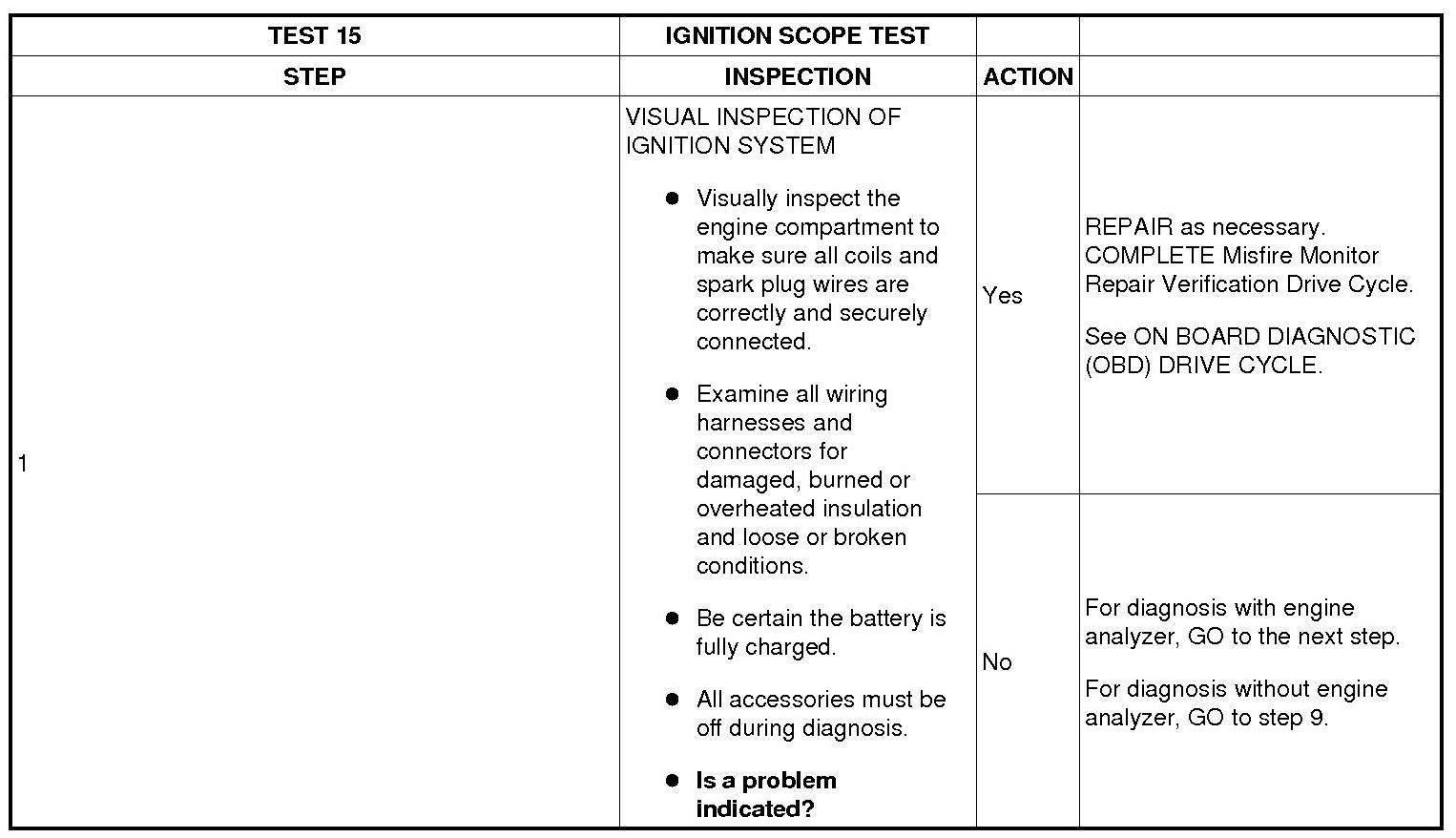

Step 1:

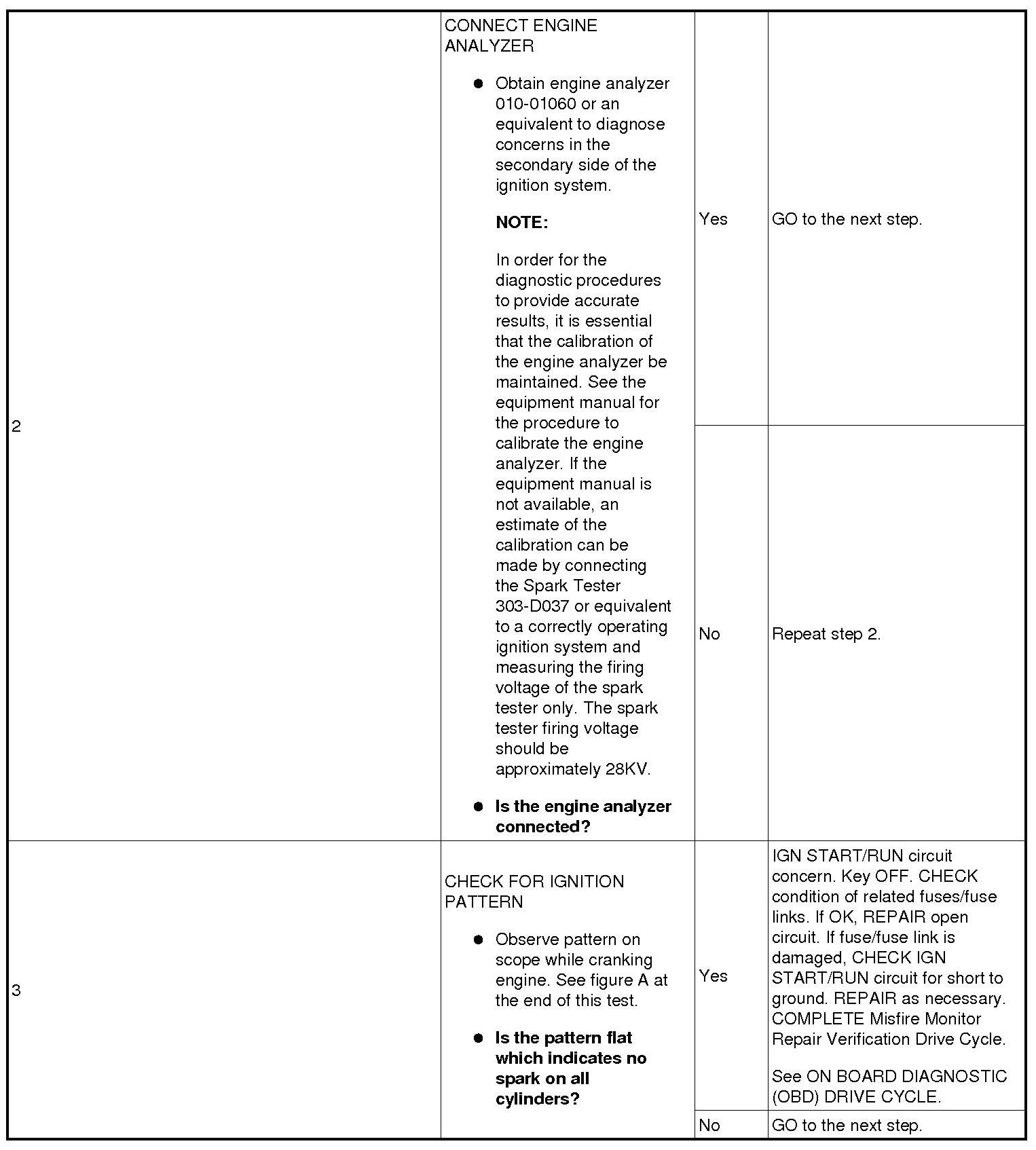

Step 2-Step 3:

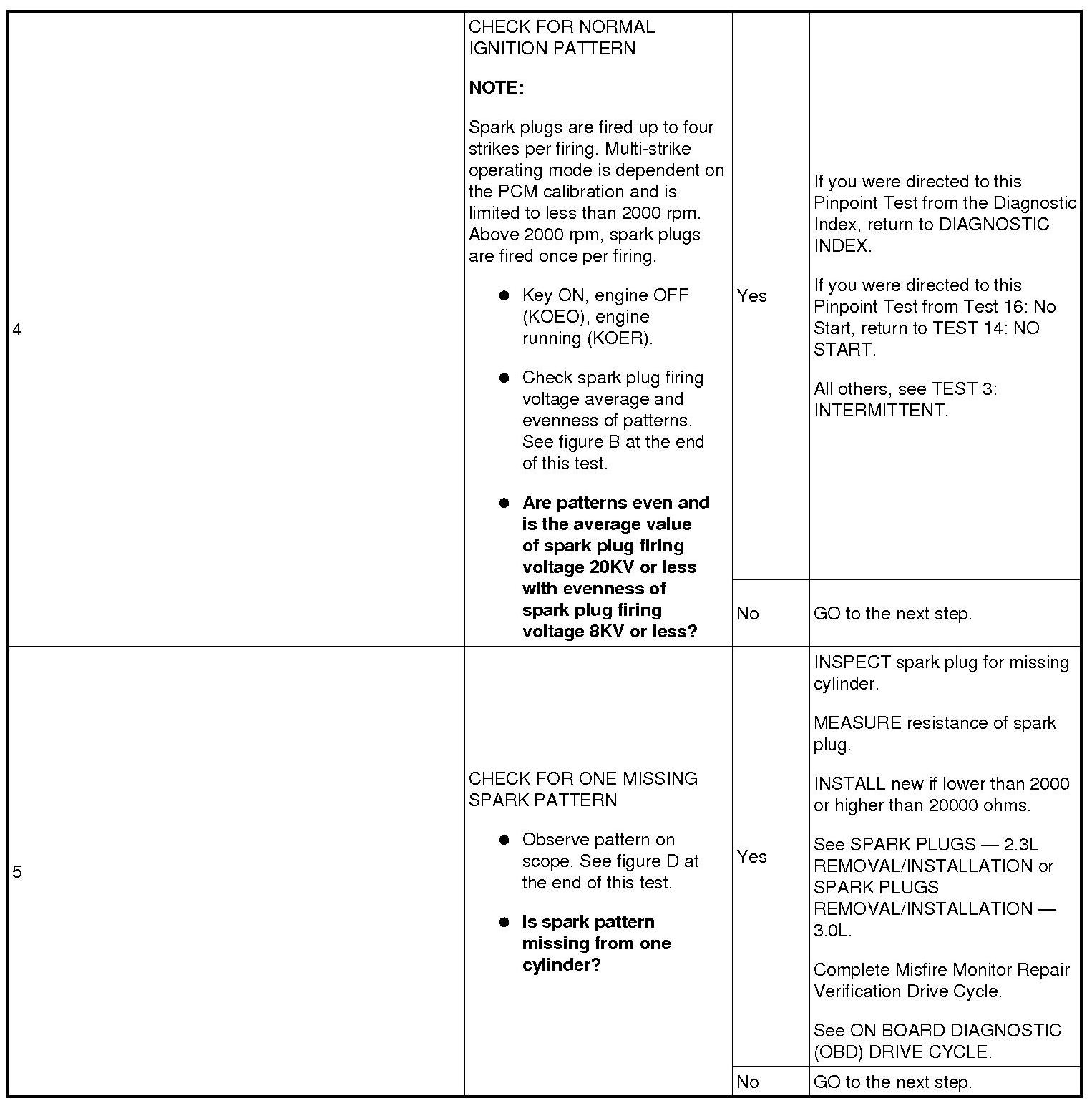

Step 4-Step 5:

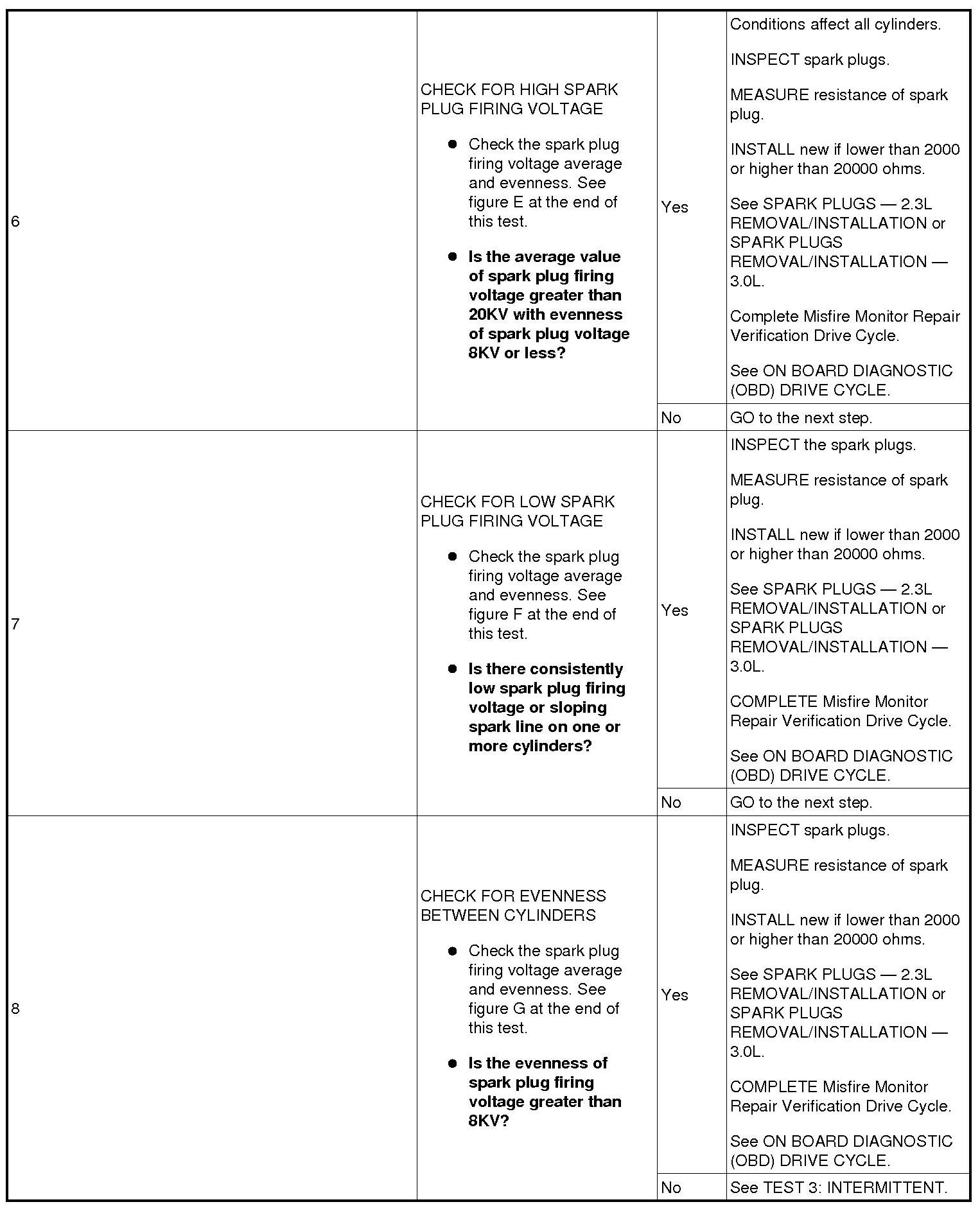

Step 6-Step 8:

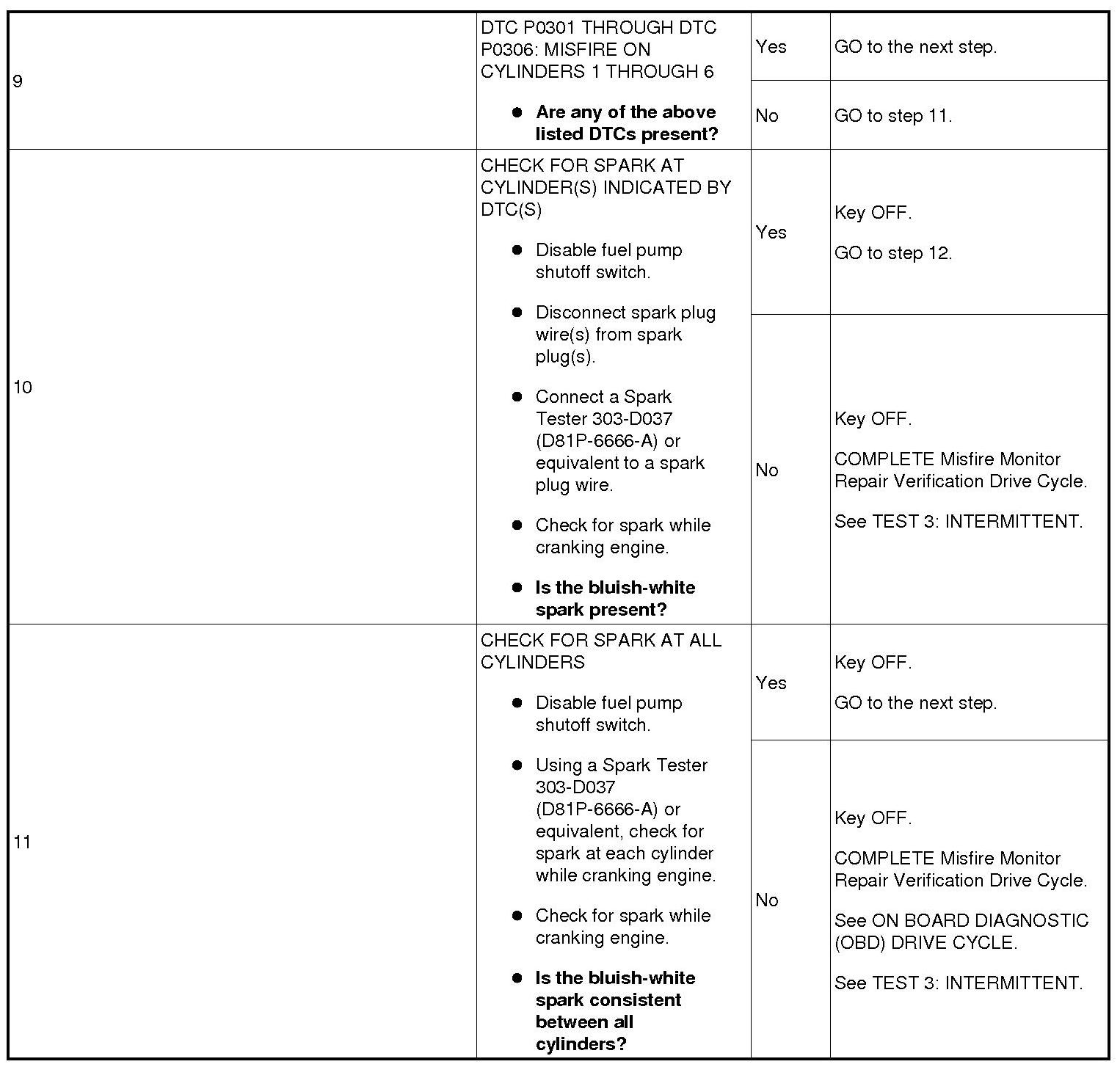

Step 9-Step 11:

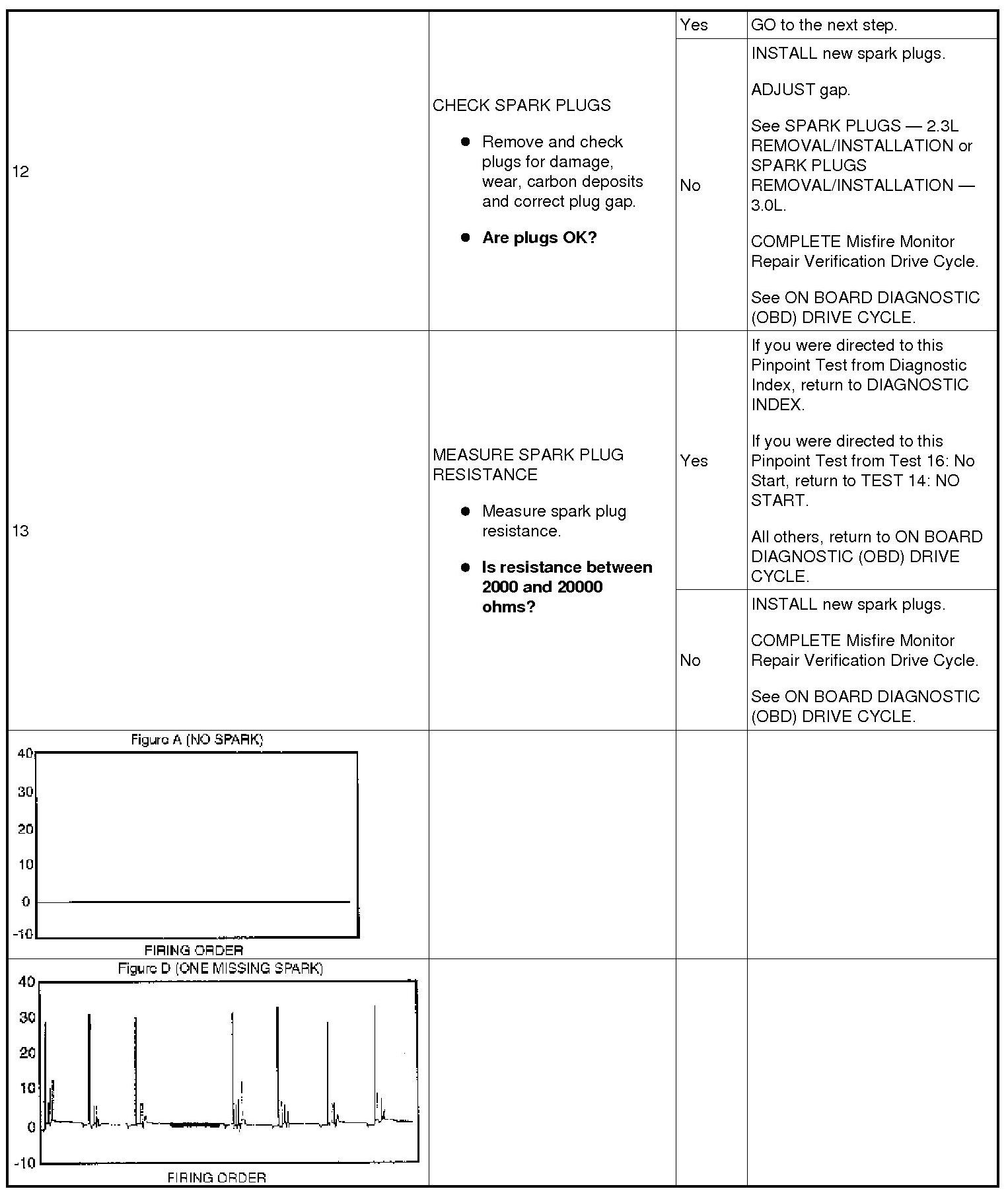

Step 12-Step 13 (Part 1):

Step 13 (Continued):
