Ignition System: Testing and Inspection
INTEGRATED IGNITION COIL ON PLUG COIL A THROUGH F FAILURE

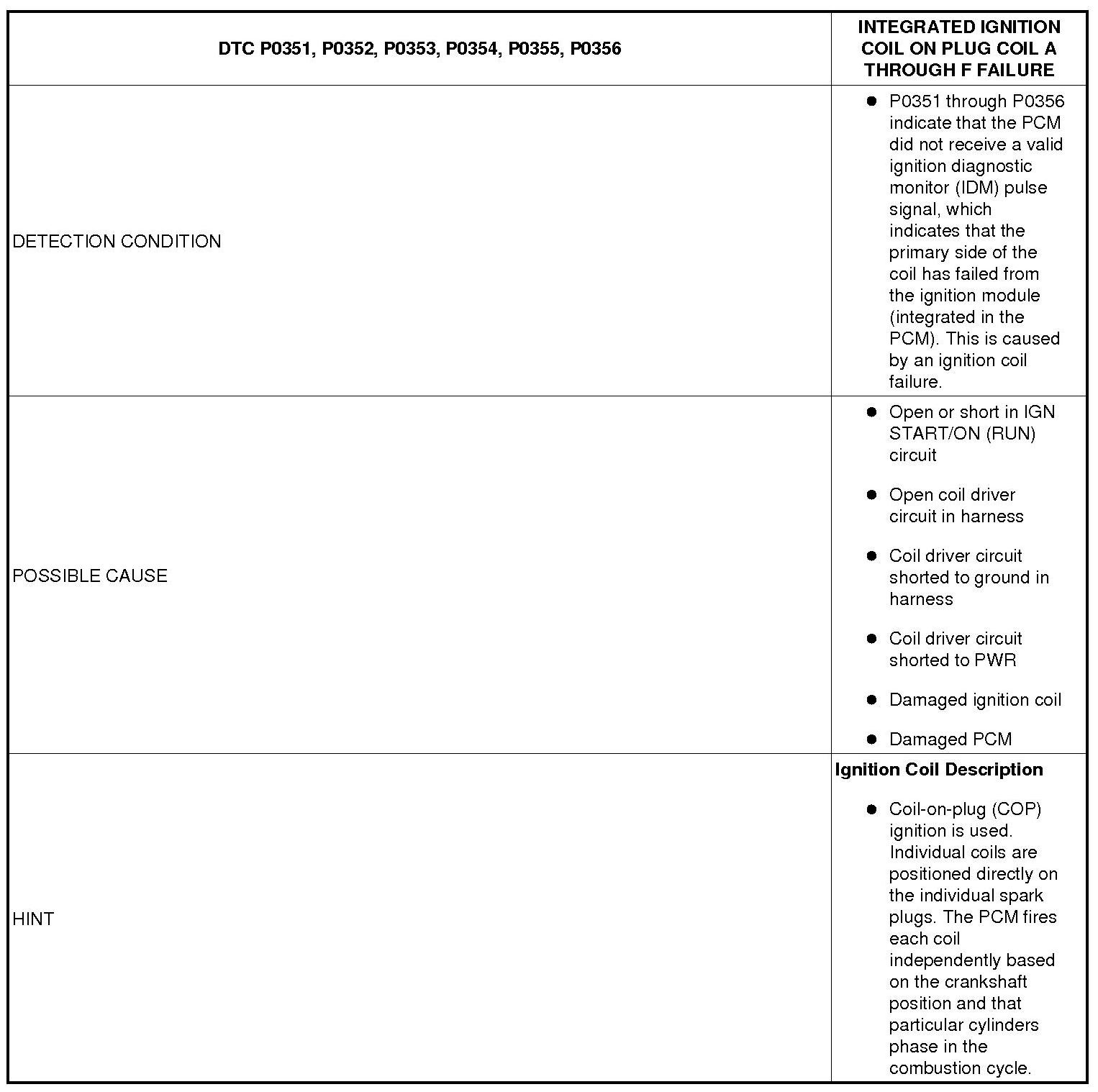

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):
Step 1-Step 2:

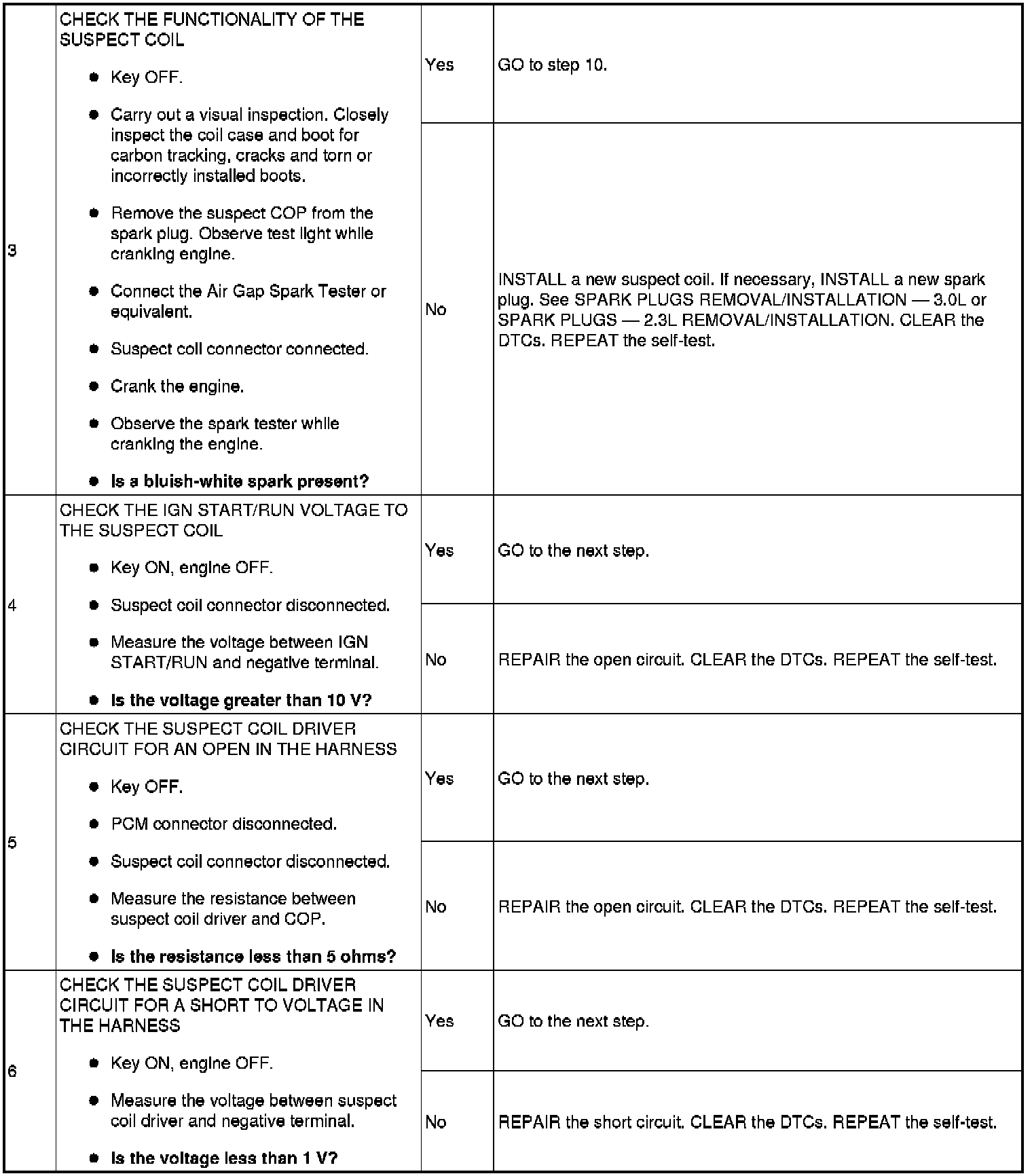

Step 3-Step 6:

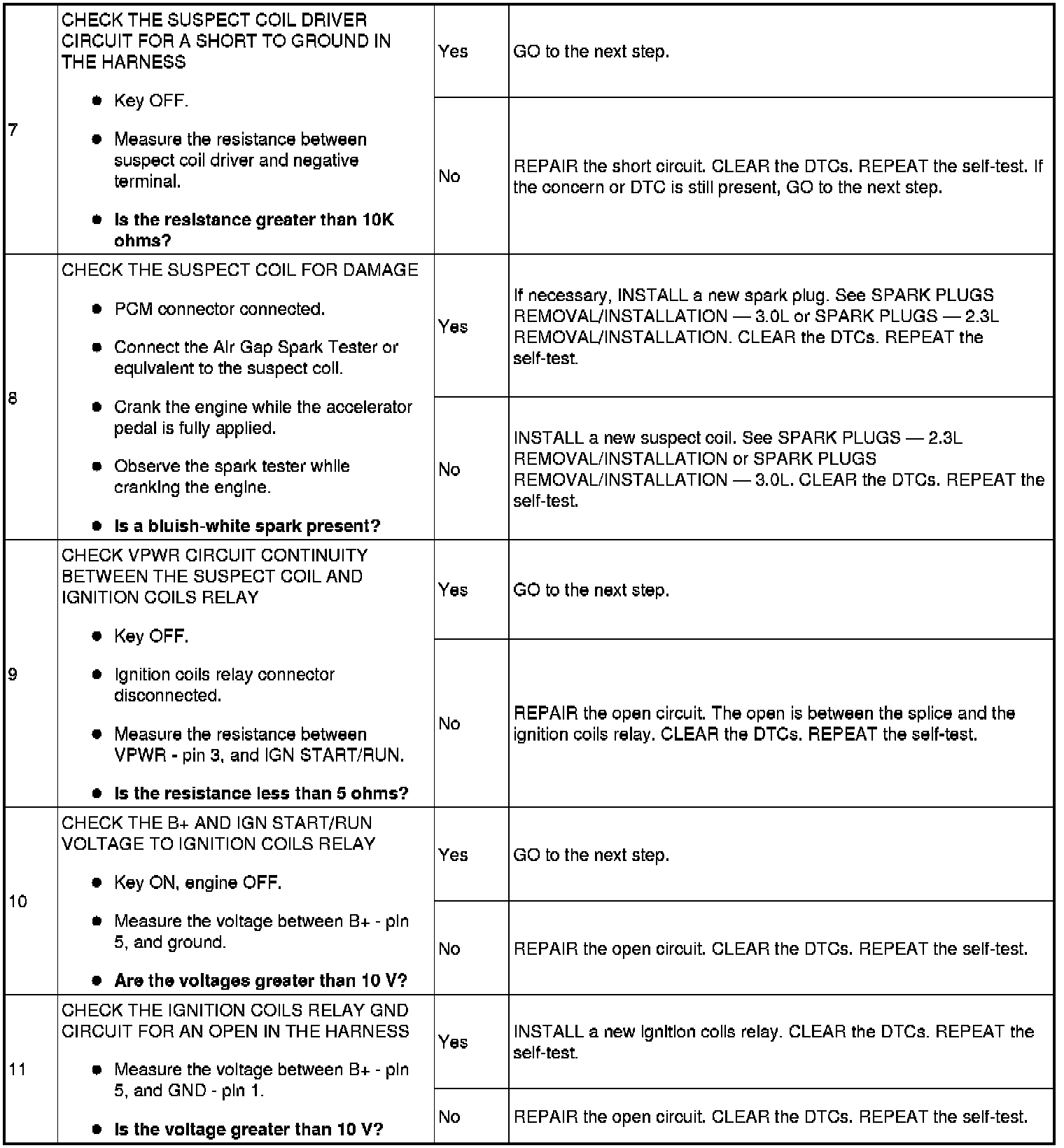

Step 7-Step 11:
INTEGRATED IGNITION COIL ON PLUG COIL A THROUGH F FAILURE
