System Specifications



-
SPECIFICATIONS - HYBRID

General Specifications





Traction Battery Specifications





High-Voltage Converter/Inverter

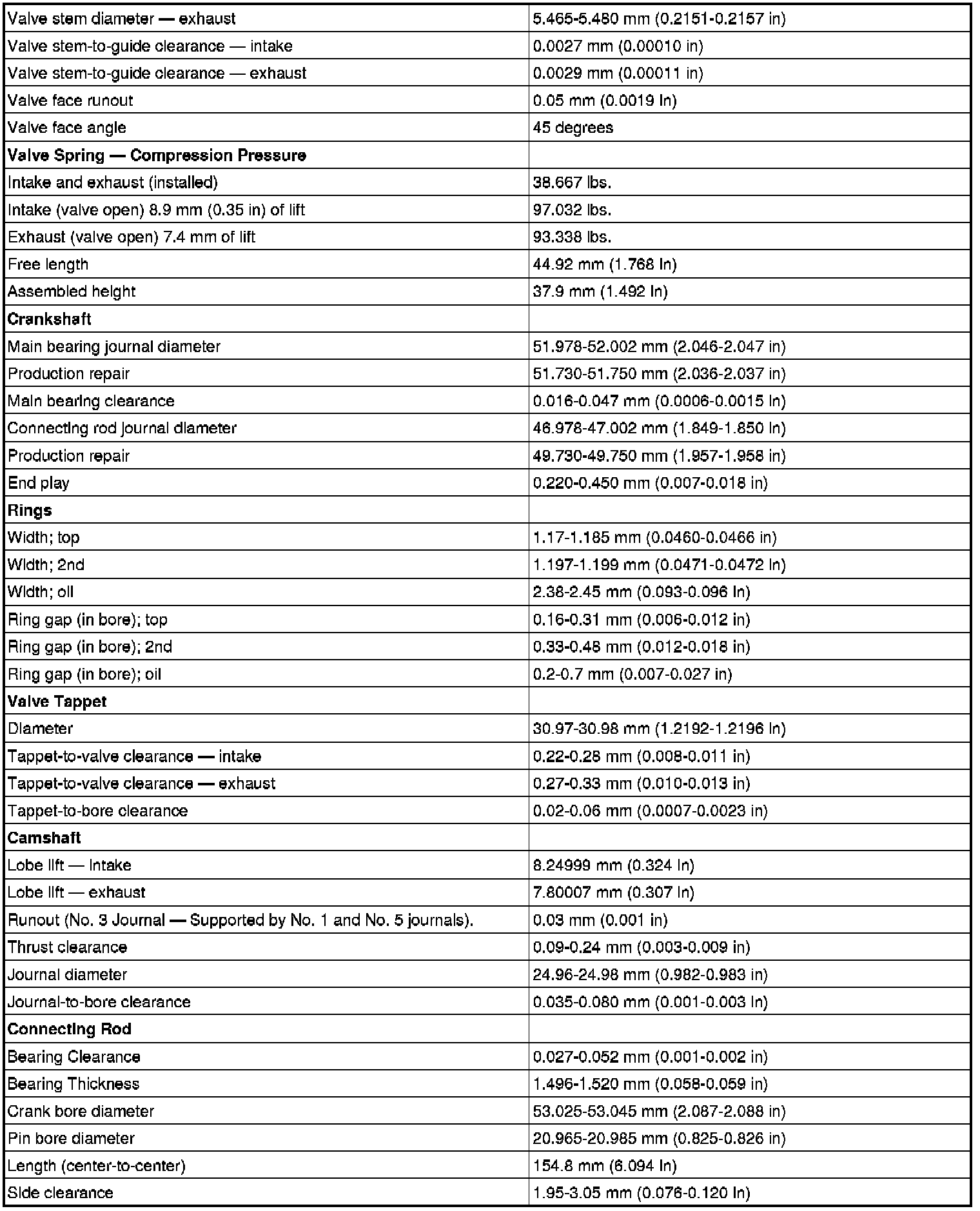

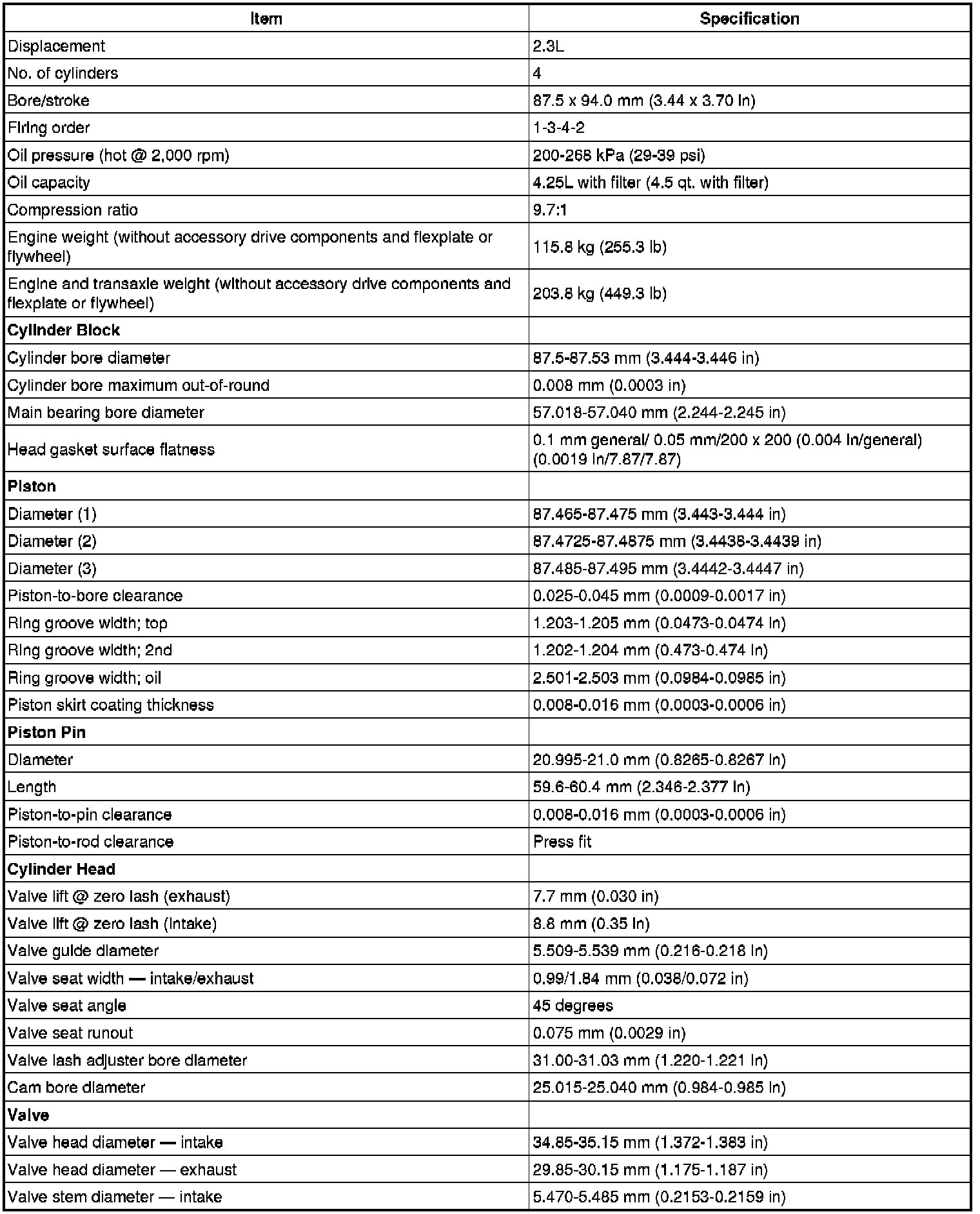

Hybrid Engine














- All dimensions are in mm unless noted.
