Clutch Slave Cylinder

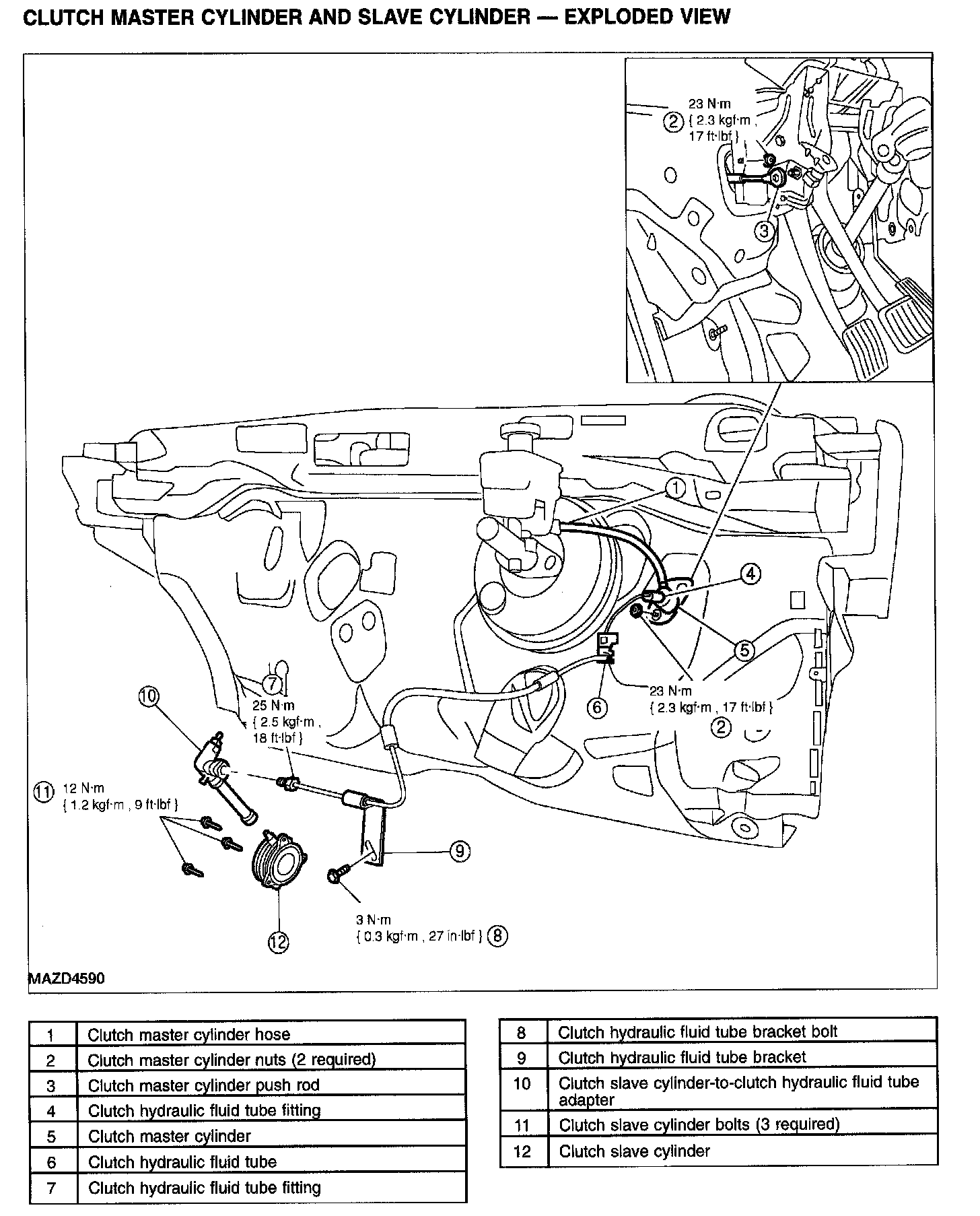

CLUTCH MASTER CYLINDER AND SLAVE CYLINDER - EXPLODED VIEW

Clutch Master Cylinder and Slave Cylinder - Exploded View:
