Connector End Views - Climate Control

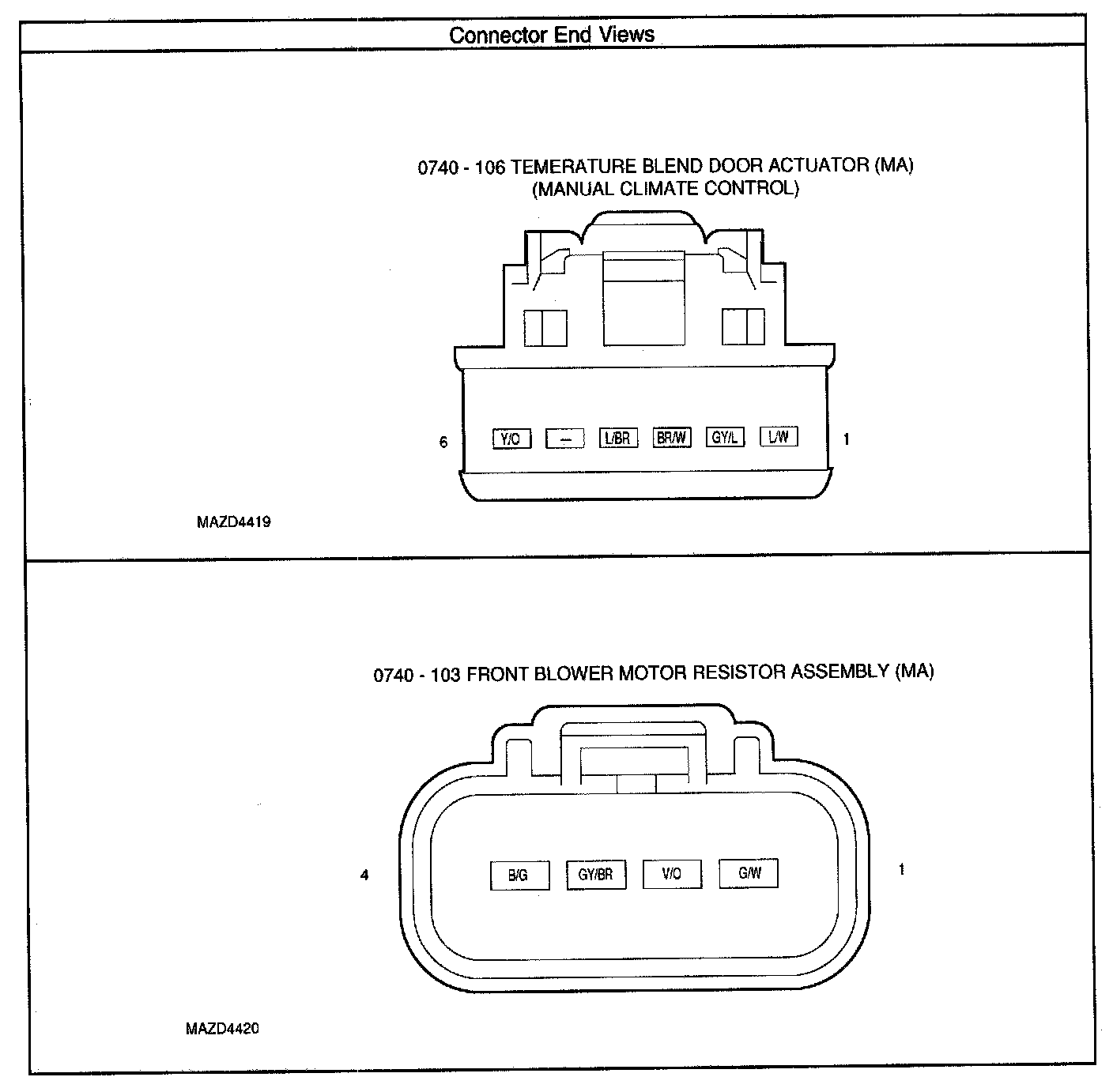

Connector End Views - Climate Control (Part 1):

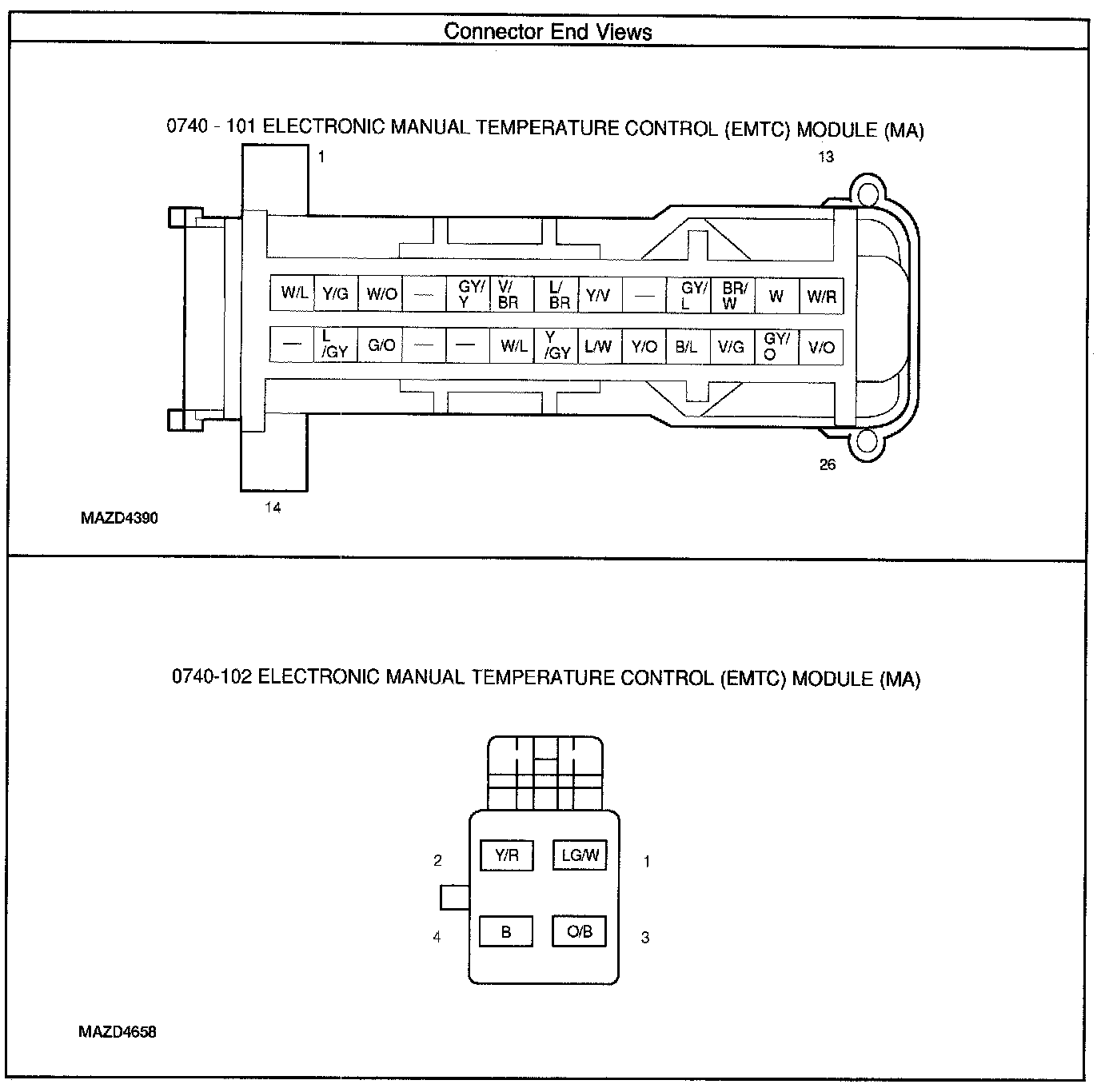

Connector End Views - Climate Control (Part 2):



Connector End Views - Climate Control (Part 3):



Connector End Views - Climate Control (Part 4):



Connector End Views - Climate Control (Part 5):



Connector End Views - Climate Control (Part 6):



Connector End Views - Climate Control (Part 7):
