PID/Data Monitor Reference Value

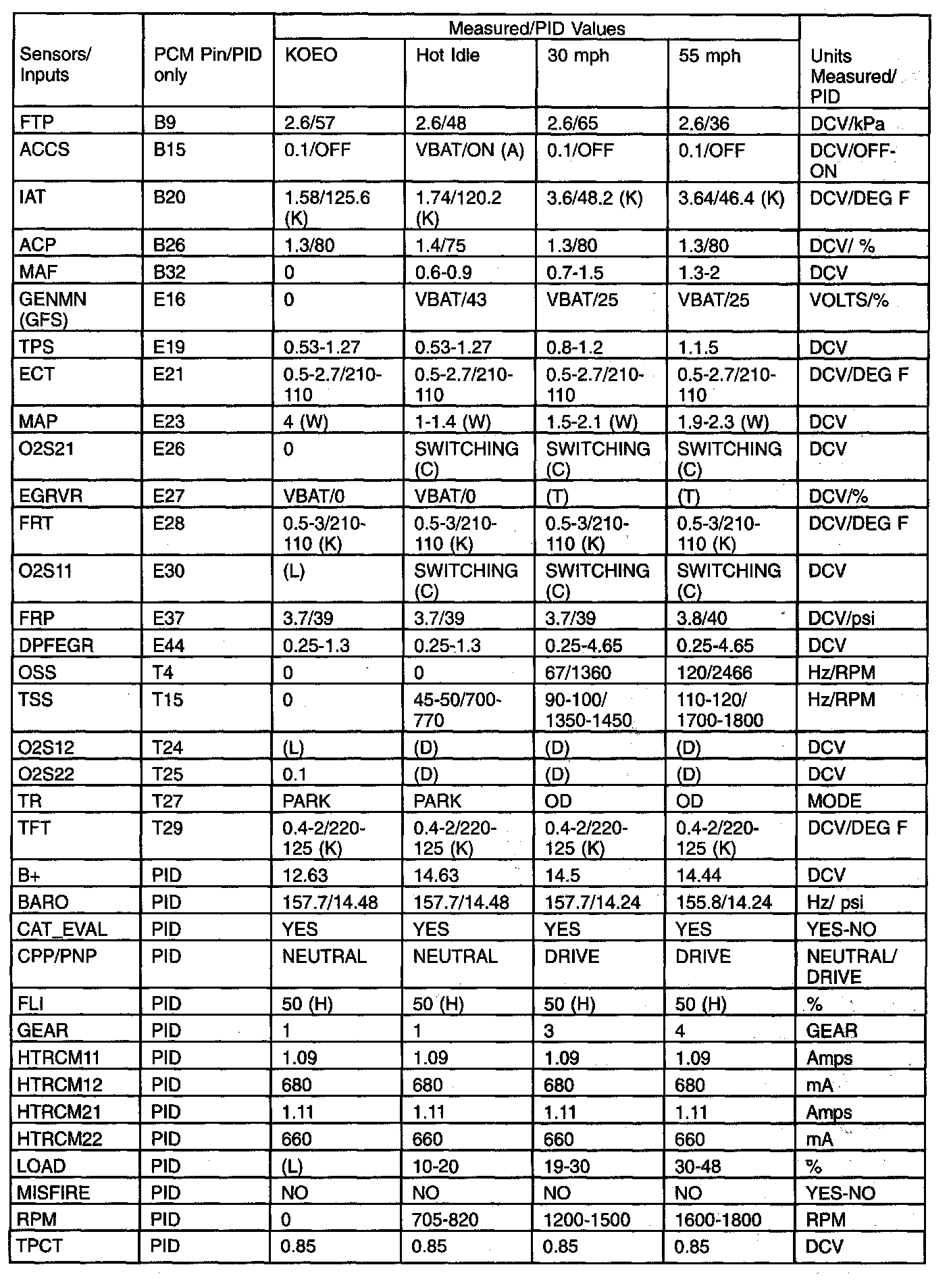

PID/Data Monitor Reference Value (3.0L [4V]) (Part 1):

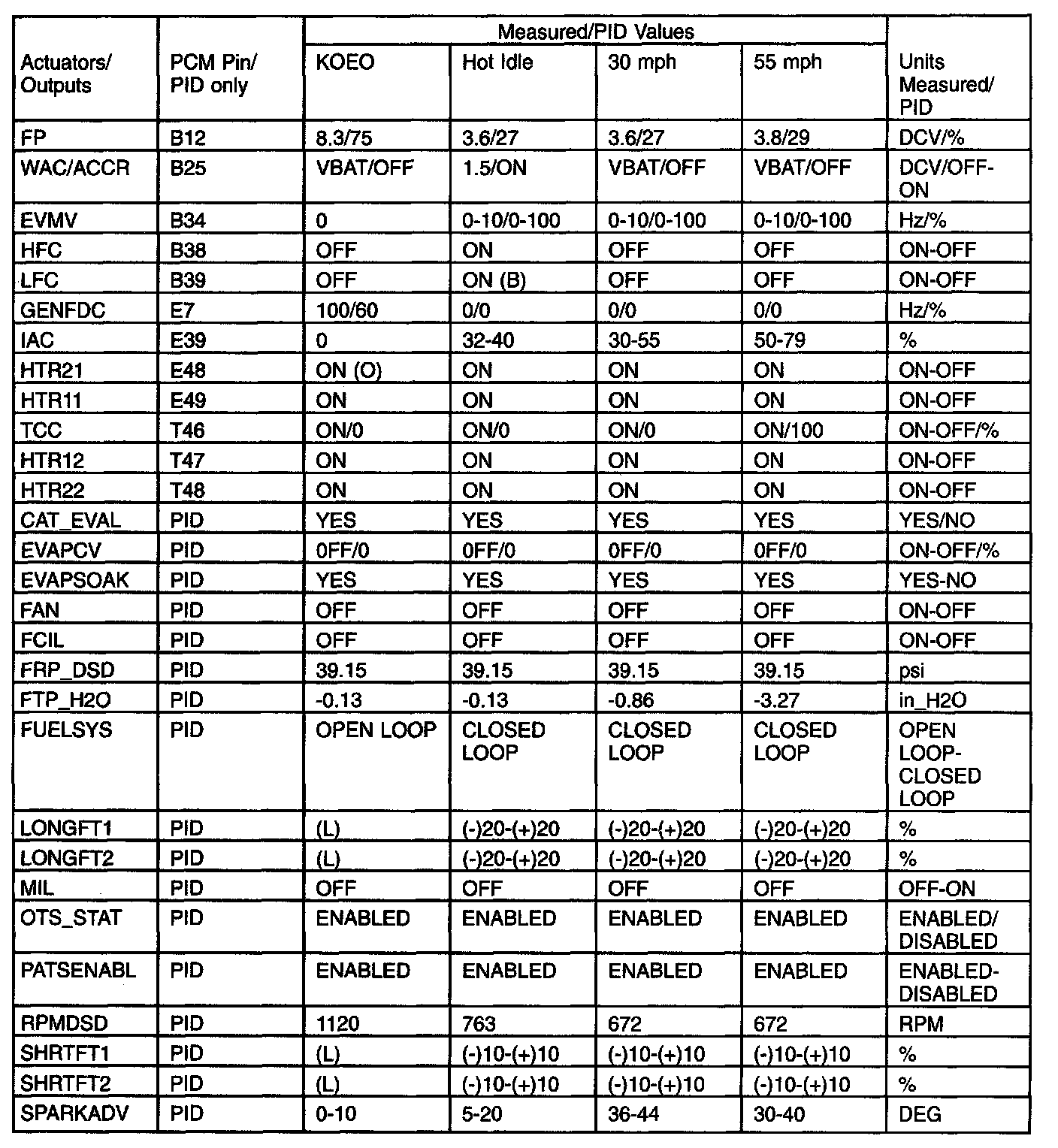

PID/Data Monitor Reference Value (3.0L [4V]) (Part 2):

PID/Data Monitor Reference Value (3.0L [4V]) (Part 3):

Typical Diagnostic Reference Values (3.0L [4V]) (Part 1):

Typical Diagnostic Reference Values (3.0L [4V]) (Part 2):
