Crankshaft Position (CKP) Sensor - 2.3L Removal/Installation: Notes

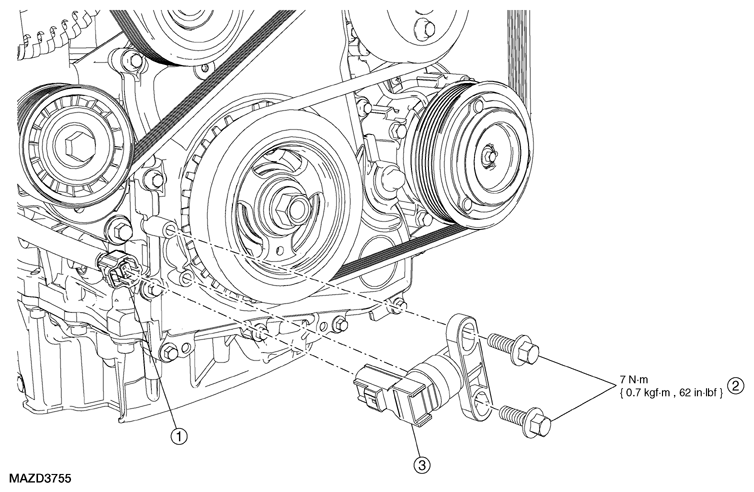

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Crankshaft position (CKP) sensor electrical connector (part of 12B637)
2	CKP sensor bolts (2 required)
3	CKP sensor
