Powertrain Control Module (Pcm) - 2.3L Removal/Installation: Notes

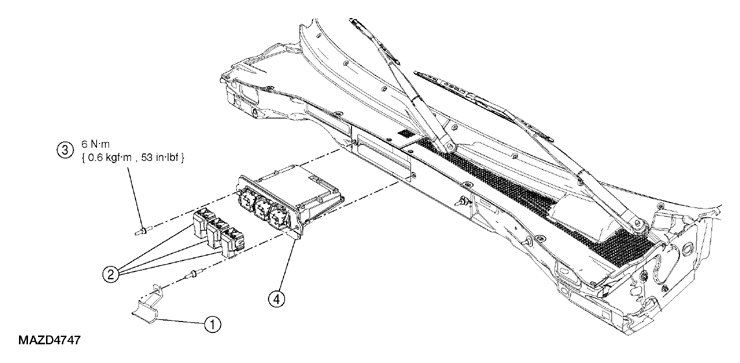

Fig 1: Powertrain Control Module (PCM) Replacement Components - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Wiring harness retainer
2	PCM electrical connectors
3	PCM-to-dash stud bolts (2 required)
4	PCM
