Powertrain Control Module (Pcm) - 3.0L (4V) Removal/Installation: Notes

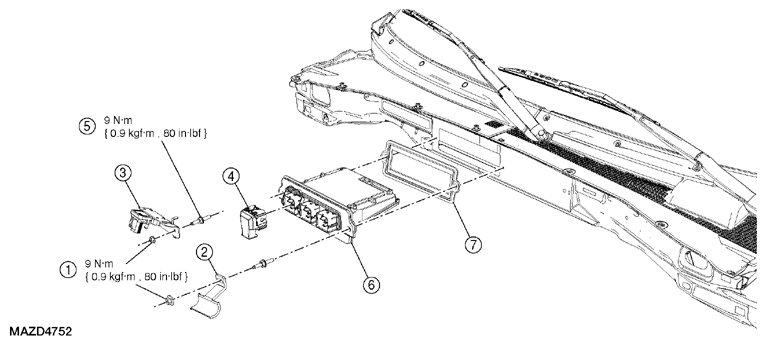

Fig 1: Powertrain Control Module (PCM) Replacement Components - 3.0L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	PCM-to-dash stud bolt nuts (2 required)
2	Wiring harness retainer
3	Manifold absolute pressure (MAP) sensor and bracket
4	PCM electrical connector
5	PCM-to-cowl stud bolt (2 required)
6	PCM
7	PCM cowl seal
