Throttle Position (TP) Sensor - 2.3L Removal/Installation

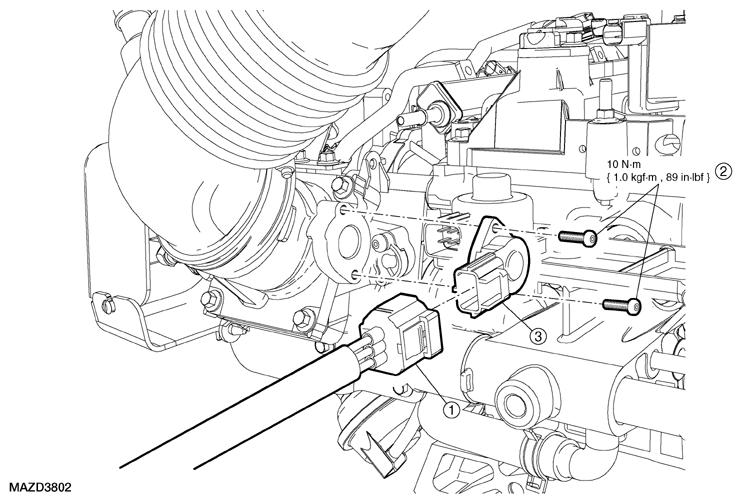

Fig 1: Throttle Position (TP) Sensor Replacement Components - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Throttle position (TP) sensor electrical connector
2	TP sensor screws (2 required)
3	TP sensor

1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the 2 screws and the TP sensor.
   • To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
3. To install, reverse the removal procedure.
