Cylinder Head Temperature (CHT) Sensor - 2.3L Removal/Installation

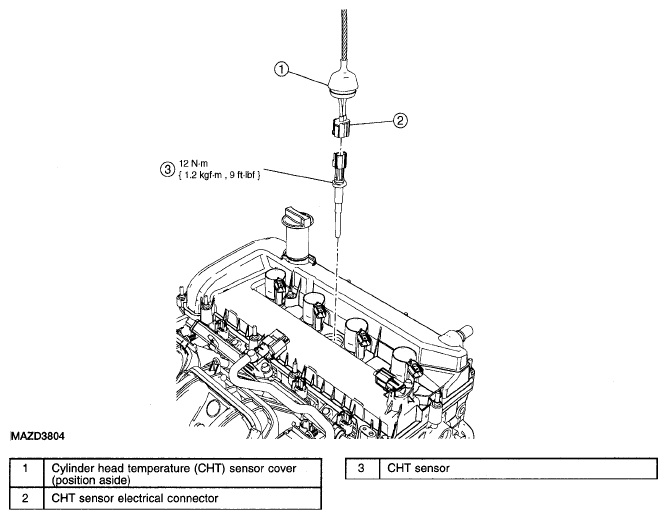

Fig 1: Cylinder Head Temperature (CHT) Sensor With Torque Specifications -- 2.3L Replacement Components
G05465003Courtesy of MAZDA MOTORS CORP.
  1. Detach the cylinder head temperature (CHT) sensor cover and position aside.
  2. Disconnect the CHT sensor electrical connector.
  3. Remove and discard the CHT sensor.
    • To install, tighten to 12 N.m {1.2 kgf.m, 9 ft.lbf}.
  4. To install, reverse the removal procedure.
